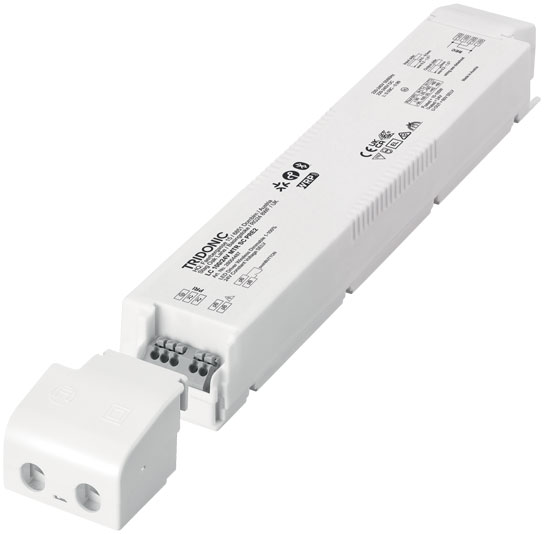

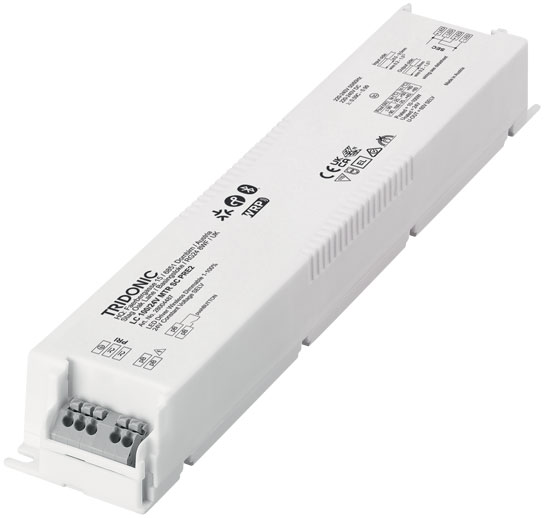

Tridonic LED-Driver LC 100W 24V MTR SC PRE2 - 28004491
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 100W 24V MTR SC PRE2 - 28004491
Product number:
28004491
Immediately available
€149.49
Prices incl. VAT plus shipping costs net €125.62
Product information "Tridonic LED-Driver LC 100W 24V MTR SC PRE2 - 28004491"
Product description
- Matter certified device
- Communication via an IPv6 Thread Network
- Thread Border Router is required (e.g. Apple HomePod mini or Google NestHub)
- Independent push-button input for free configuration
- Wireless firmware updates possible
- Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
- Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- Dimming range 1 to 100 %
- No additional external dimmer is needed
- Suitable for emergency escape lighting systems acc. to EN 50172
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- Cove lighting, facade accent lighting, ceiling integration
Technical details
- 24 V, 100 W

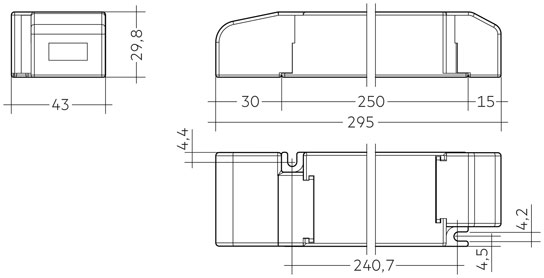

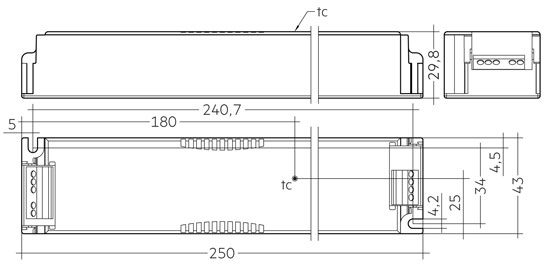

- Small design (295 x 43 x 30 mm) with stretched-compact strain relief
- Small cross section
- Push terminals for simple wiring
- Output terminals (+/–) equipped twice for more flexibility in the application
Interfaces
- Matter
- Terminal blocks: 45° push terminals
System solution
- Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- In connection with Flex accessories wire to PCB plug
- Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
EAN/UPC: 9006210799605
Country of Origin: AT
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output voltage: | 24 |
|---|---|
| operating mode: | constant voltage |
