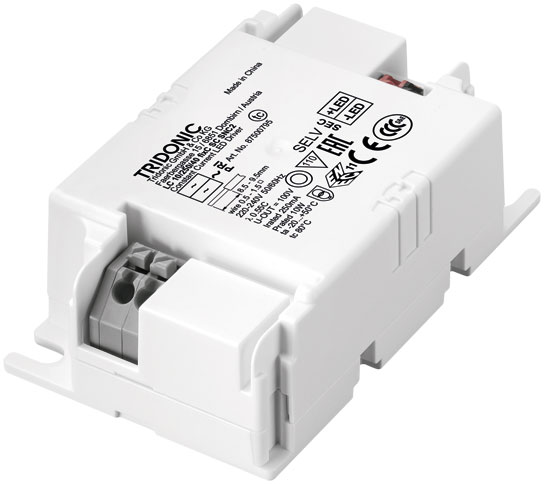

Tridonic LED-Driver LC 10/350/29 fixC SC SNC2 - 87500796
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 10/350/29 fixC SC SNC2 - 87500796
Product number:
87500796
Shipping in 5 day(s)
€6.47
Prices incl. VAT plus shipping costs net €5.44
Product information "Tridonic LED-Driver LC 10/350/29 fixC SC SNC2 - 87500796"
Product description
- Fixed output LED driver
- Can be either used built-in or independent with clip-on strain-relief (see accessory)
- Independent LED driver with cable clamps
- Constant current LED driver
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current 350 mA
- Max. output power 10 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Burst protection voltage 1 kV
- Surge protection voltage 0.5 kV (L to N)
- Surge protection voltage 1 kV (L/N to earth)
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
EAN/UPC: 9006210683515
Country of Origin: CN
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 350 |
|---|---|
| operating mode: | constant current |
