Tridonic EMpowerLED BASIC 104 4x350mA - 89800261
Product information "Tridonic EMpowerLED BASIC 104 4x350mA - 89800261"
For luminaire installation
Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
NiCd or NiMH batteries
D, Cs or 7/5 Cs cells
Short-circuit-proof battery connection
5-year guarantee
Electronic charge system
LED Driver for mains operation with integrated Simple CORRIDOR FUNCTION (CF) and emergency lighting funtion for manual testing
Simple CORRIDOR FUNCTION (CF) with 10 % light level
SELV for output voltage < 60 V DC
For the use with STARK QLE G2 CLASSIC and LLE 24-280-1250
Constant current LED Driver with 4 x 300 mA or 4 x 350 mA output current in mains operation
Integrated emergency lighting unit
1 or 3 h rated duration selectable with plug (duration link)
4 channels in mains operation and 1 channel in emergency operation
Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
NiCd or NiMH batteries
D, Cs or 7/5 Cs cells
Short-circuit-proof battery connection
5-year guarantee
Electronic charge system
LED Driver for mains operation with integrated Simple CORRIDOR FUNCTION (CF) and emergency lighting funtion for manual testing
Simple CORRIDOR FUNCTION (CF) with 10 % light level
SELV for output voltage < 60 V DC
For the use with STARK QLE G2 CLASSIC and LLE 24-280-1250
Constant current LED Driver with 4 x 300 mA or 4 x 350 mA output current in mains operation
Integrated emergency lighting unit
1 or 3 h rated duration selectable with plug (duration link)
4 channels in mains operation and 1 channel in emergency operation
Downloads & Documents
Electrical data
| through wiring: | no |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE |
| system power: | 50 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |
| solar panel: | no |
Logistic data
| item category: | LED drivers |
|---|

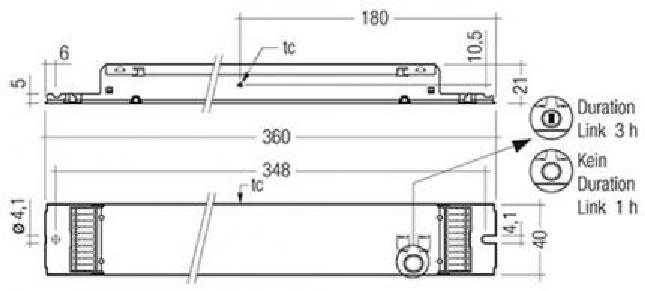

Dimensions & packaging
| EAN | 9006210499802 |
|---|---|
| Length | 360 mm |
| Width | 40 mm |
| Height | 21 mm |
| Weight | 308 g |
