Tridonic emergency light module EM R2A ST NM 112 SM – 89800790
Tridonic GmbH & Co KG
Tridonic emergency light module EM R2A ST NM 112 SM – 89800790
Product number:
89800790
Immediately available
€160.79
Content:
1 Stück
Prices incl. VAT plus shipping costs net €135.12
Product information "Tridonic emergency light module EM R2A ST NM 112 SM – 89800790"
Product description
- LED emergency module suitable for surface mounted installation

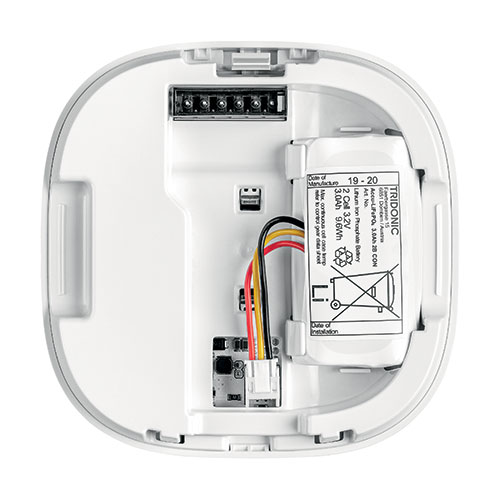

- Complete set with integrated electronics, LED module, heat sink, optics and battery
- Includes click-in multi-lens option for anti-panic, escape route and spot illumination
- Emergency lighting with self-test function
- BESA compatible mounting
- EM = Emergency
Properties
- Output power 1.5 W
- Very low stand-by power loss
- Non-maintained variants
- 1 or 3 h rated duration (separate variants)
- White or black housing colour options
- Back box in two different heights available (for rear and side entry)
- 5 years guarantee electronic (LED driver)
- 4 years guarantee for LiFePO4 batteries
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | square |
| protection type: | IP20 |
| material: | plastic |
| mounting: | surface-mounted, ceiling mounting |
| impact resist: | IK07 |
| protection class: | II |
| environment temperature from: | 5 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color code: | 865 |
| color: | white |
| color temperature [Kelvin]: | 6500 |
| color rendering index [CRI]: | >80 |
| inclusive lamp: | yes |
| sensor type: | no |
| solar panel: | no |

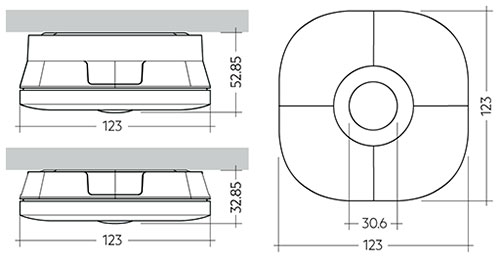

Dimensions & packaging
| Length | 123 mm |
|---|---|
| Width | 123 mm |
| Height | 52.85 mm |
| Weight | 274 g |
