Tridonic emergency LED driver EMconverterLED PRO 204 MH/LiFePO4 50V – 89800629
Tridonic GmbH & Co KG
Tridonic emergency LED driver EMconverterLED PRO 204 MH/LiFePO4 50V – 89800629
Product number:
89800629
Shipping in 28 day(s)
€68.90
Content:
1 Stück
Prices incl. VAT plus shipping costs net €57.90
Product information "Tridonic emergency LED driver EMconverterLED PRO 204 MH/LiFePO4 50V – 89800629"
Product description
- Emergency lighting LED driver with DALI-2 interface and automatic test function
- For self-contained emergency lighting
- For LED modules with a forward voltage of 10 – 54 V
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- For luminaire installation
- Compatible with Tridonic's LLE FLEX modules (ADV, EXC)
- EM = Emergency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Properties
- Non maintained operation
- DALI-2 interface for controlled testing and monitoring
- 1, 2 or 3 h rated duration

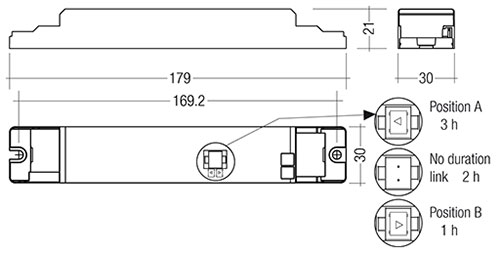

- Operating time selectable with plug (duration link)
- Compatible with most constant current LED drivers (see data sheet, LED driver compatibility)
- 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver
- Automatic shutdown of output if LED load is out of range
- Constant power output
- Two-colour status display LED
- Electronic charge system
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery provided by 3-pole connector
- Automatic detection of the connected battery technology (NiMH or LiFePO4 batteries)
- Self-test:
- Status of the battery
- Status of the LED
- Function test
- Duration test
Batteries
- High-temperature cells
- NiMH or LiFePO4 batteries
- LA or 18650 cells
- 4-year design life for NiMH batteries
- 1 years guarantee for NiMH batteries
- 4 – 8 years design life for LiFePO4 batteries
- 4 years guarantee for LiFePO4 batteries
- LiFePO4 batteries with Tridonic LiFeGuard
- For battery compatibility refer to data sheet, battery selection
Downloads & Documents
Electrical data
| output voltage: | 60 |
|---|---|
| operating frequency: | 50/60 Hz |
| rated voltage: | 220-240 V |
| conformity: | CE, EAC, ENEC, UKCA |
| lifetime: | 100000 h |
| system power: | 3,5 |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| lamp type: | LED |
| sensor type: | no |
Dimensions & packaging
| EAN | 9006210703848 |
|---|---|
| Length | 179 mm |
| Width | 21 mm |
| Height | 30 mm |
| Weight | 70 g |
