Tridonic EM16C HO BASIC - 89800120
Immediately available
€32.12
(40% saved)
€19.06
Content:
1 Stück
Prices incl. VAT plus shipping costs net €16.02

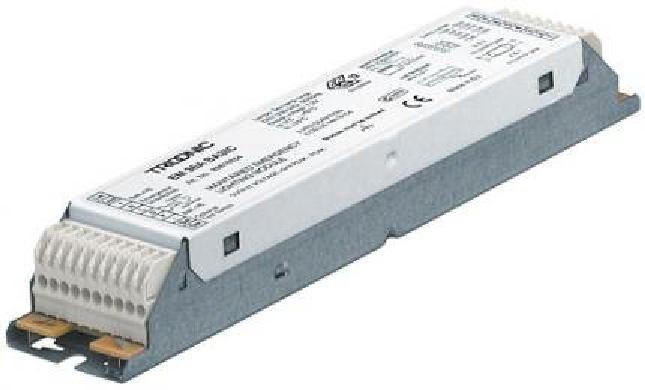

Product information "Tridonic EM16C HO BASIC - 89800120"
Emergency lighting supply unit for manual testing
For linear and compact fluorescent lamps
Small dimensions (28 x 39 mm cross-section)
1 or 3 h rated duration
Compatible with all electronic ballasts (dimmable and non-dimmable)
5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
Optimised AC output voltage for TC-DD and TC-L lamps
Optimised DC output voltage for T8 lamps
Cathode heating adapted for compact lamps
Switchover relay with high-current contacts
IDC (insulation displacement connection)
Green charge status display LED
Optional test switch
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
NiCd batteries
Blade terminals for simple connection
D, Cs or 7/5 Cs cells
Can also be used in combination with conventional magnetic ballasts
Checking the emergency lighting function by interrupting the unswitched phase
Battery connection, short-circuit protected (not reversible)
For linear and compact fluorescent lamps
Small dimensions (28 x 39 mm cross-section)
1 or 3 h rated duration
Compatible with all electronic ballasts (dimmable and non-dimmable)
5-pole technology: 4-pole lamp changeover and delayed power switching for the ballast
Optimised AC output voltage for TC-DD and TC-L lamps
Optimised DC output voltage for T8 lamps
Cathode heating adapted for compact lamps
Switchover relay with high-current contacts
IDC (insulation displacement connection)
Green charge status display LED
Optional test switch
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
NiCd batteries
Blade terminals for simple connection
D, Cs or 7/5 Cs cells
Can also be used in combination with conventional magnetic ballasts
Checking the emergency lighting function by interrupting the unswitched phase
Battery connection, short-circuit protected (not reversible)
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | plastic |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color: | white |
| inclusive lamp: | no |
| solar panel: | no |

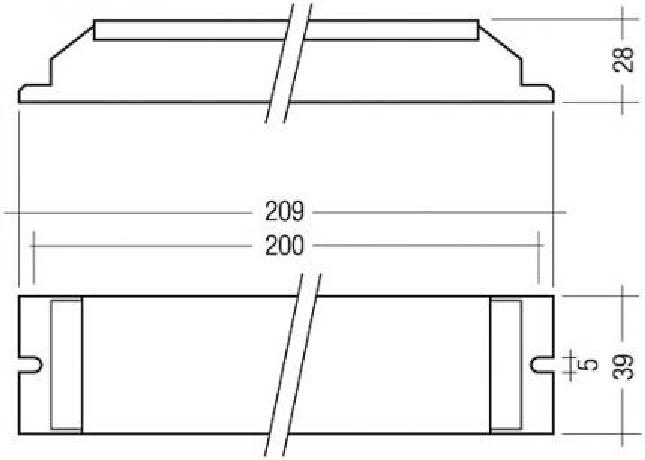

Dimensions & packaging
| EAN | 9006210446134 |
|---|---|
| Length | 209 mm |
| Width | 39 mm |
| Height | 28 mm |
| Weight | 337 g |
