Tridonic ECG-LED LCU 48V 75W DC-STR DIM lp - 28000815
Tridonic GmbH & Co KG
Tridonic ECG-LED LCU 48V 75W DC-STR DIM lp - 28000815
Product number:
28000815
Immediately available
€128.42
Content:
1 Stück
Prices incl. VAT plus shipping costs net €107.92
Product information "Tridonic ECG-LED LCU 48V 75W DC-STR DIM lp - 28000815"
For luminaires of protection class I and protection class II
Intelligent Temperature Guard (overtemperature protection)
Short-circuit protection
Type of protection IP20
Overload protection
5-year guarantee
Low profile metal casing with white cover
Temperature protection as per EN 61347-2-13 C5e
Nominal life-time up to 50,000 h
Max. output power 75 W
Compatible with other DC-String components
DC-String compatible
Integrated DALI to DC powerline communication bridge (PLC)
one4all interface (corridorFUNCTION, switchDIM, DALI, DSI)
Dimmable DC-String constant voltage built-in LED Driver
Up to 91 % efficiency
Intelligent Temperature Guard (overtemperature protection)
Short-circuit protection
Type of protection IP20
Overload protection
5-year guarantee
Low profile metal casing with white cover
Temperature protection as per EN 61347-2-13 C5e
Nominal life-time up to 50,000 h
Max. output power 75 W
Compatible with other DC-String components
DC-String compatible
Integrated DALI to DC powerline communication bridge (PLC)
one4all interface (corridorFUNCTION, switchDIM, DALI, DSI)
Dimmable DC-String constant voltage built-in LED Driver
Up to 91 % efficiency
Downloads & Documents
Electrical data
| output voltage: | 48 |
|---|---|
| operating mode: | constant voltage |
Casing
| protection type: | IP20 |
|---|
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

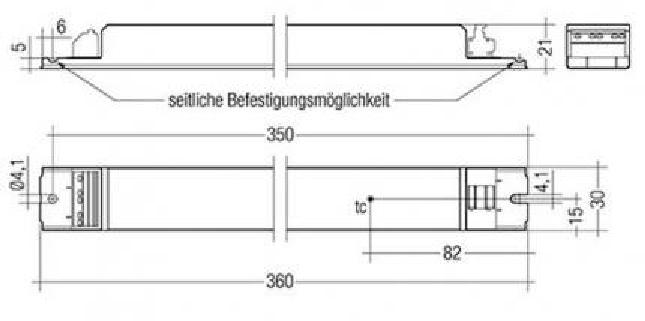

Dimensions & packaging
| EAN | 9006210532707 |
|---|---|
| Length | 360 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 280 g |
