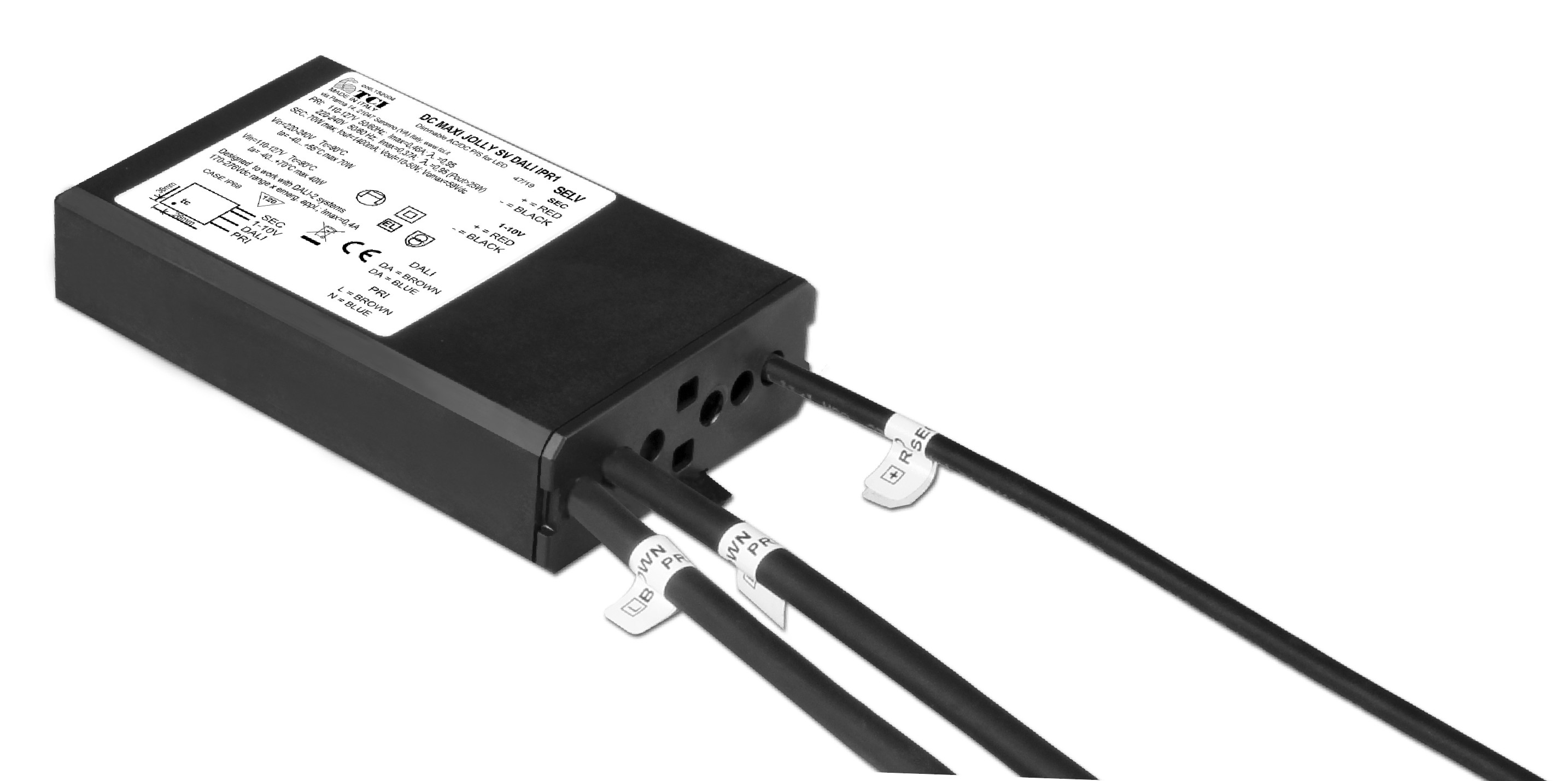

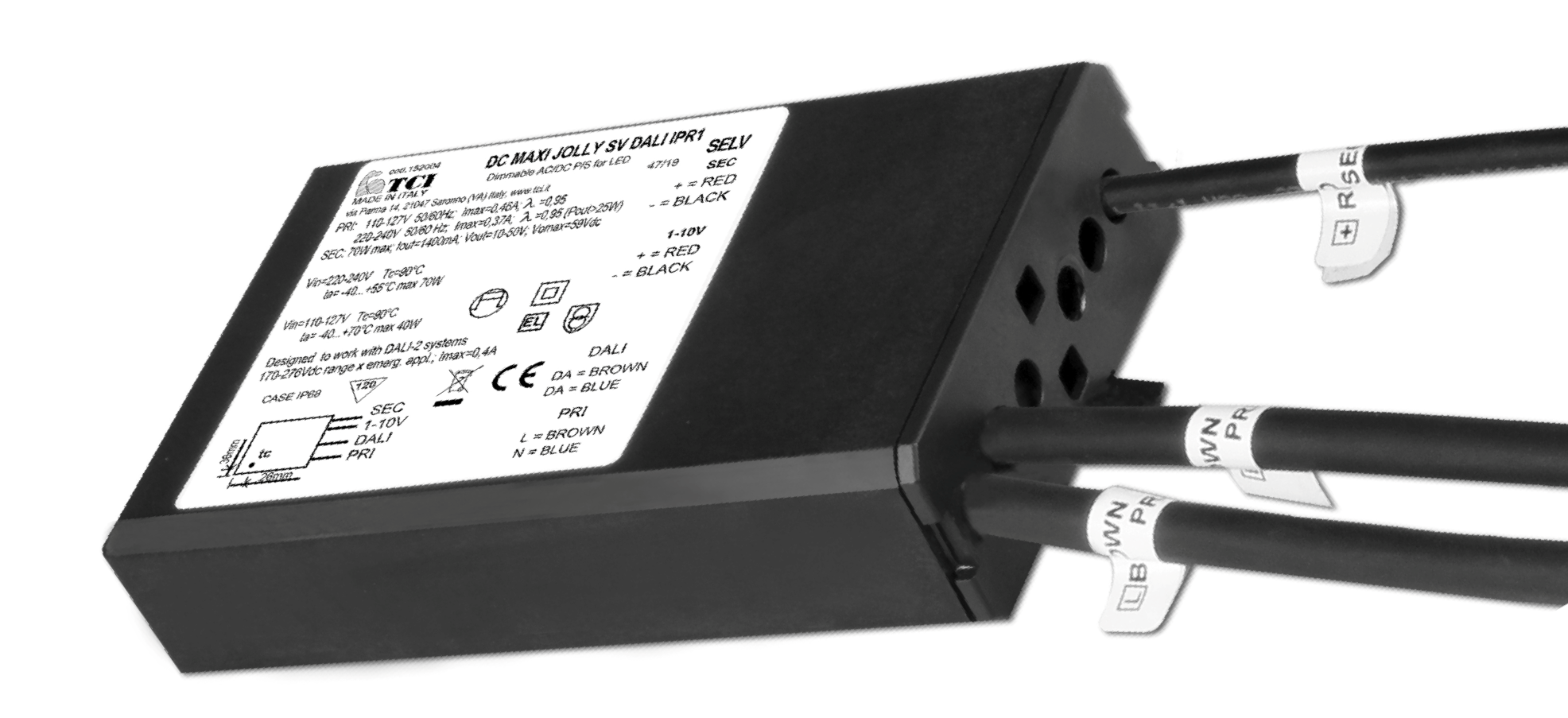

TCI LED driver dimmable DC MAXI JOLLY SV DALI IPR1 – 152004
Product information "TCI LED driver dimmable DC MAXI JOLLY SV DALI IPR1 – 152004"
Features
- Double input and DALI terminal blocks to loop other driver.
- Ultra high input spikes protection up to 8kV (see datasheet).
- Independent driver with IP68 case (see page info7 for the correct connection of connecting leads).
- Class II protection against electric shock for direct or indirect
contact. - Supplied with connecting leads (length 400 mm) on primary and secondary circuits for connection.
- Active Power Factor Corrector.
- Current regulation ±5 % including temperature variations.
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads. - Thermal protection = C.5.a
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE, EAC, ENEC |
| lifetime: | 50000 h |
Casing
| fire protection: | no |
|---|---|
| form type: | rectangular |
| max housing temperature (tc-max): | 90 °C |
| protection type: | IP68 |
| material: | plastic |
| environment temperature from: | -40 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | black |
| interface: | DALI |
| sensor type: | no |
Logistic data
| country of origin: | Italy |
|---|

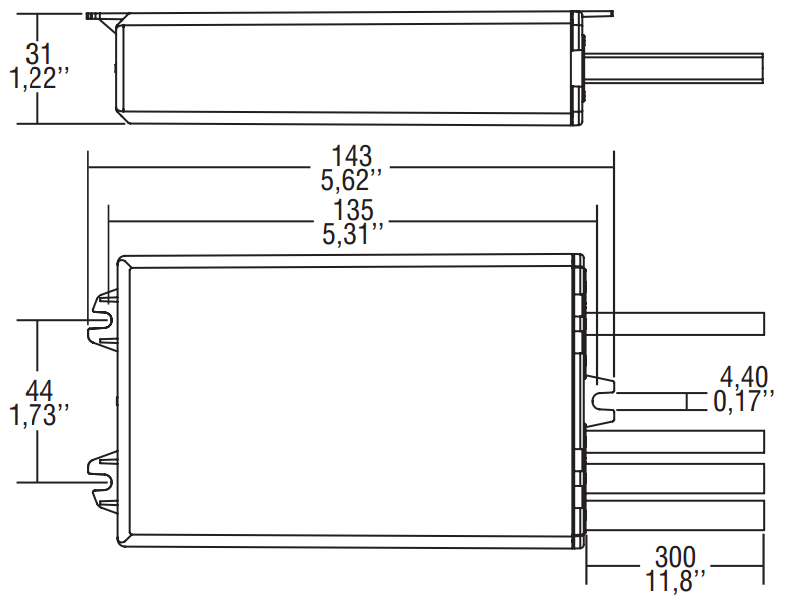

Dimensions & packaging
| Length | 143 mm |
|---|---|
| Width | 31 mm |
| Height | 80 mm |
