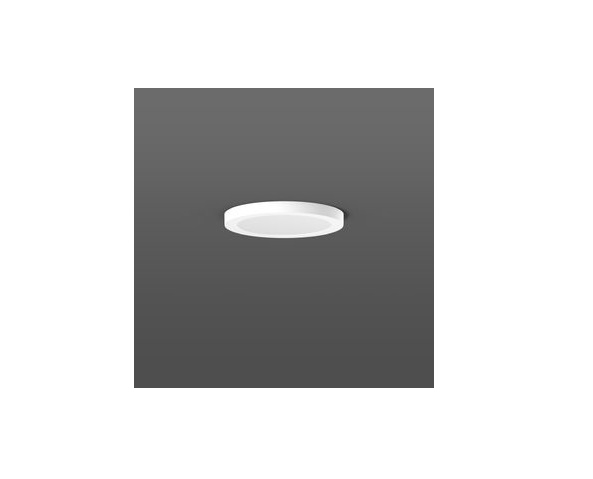

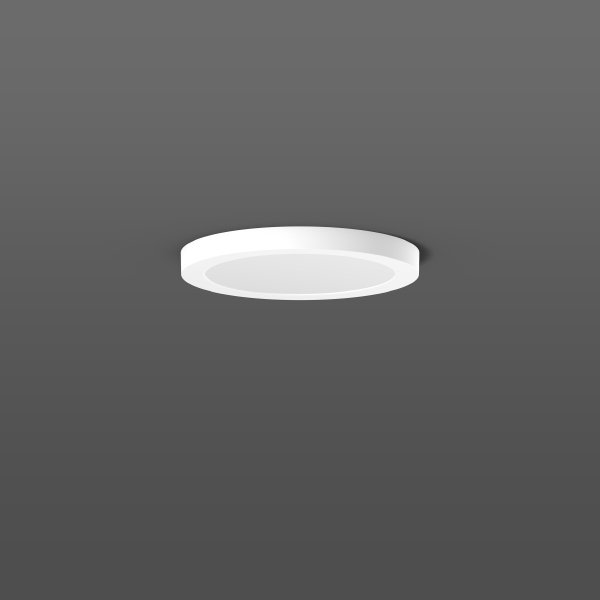

RZB Lighting LED downlight surface-mounted Trixy/E,LED/9/12/15W-3000/4000K - 901717002
RZB Lighting LED downlight surface-mounted Trixy/E,LED/9/12/15W-3000/4000K - 901717002
Immediately available
€26.18
Prices incl. VAT plus shipping costs net €22.00
Product information "RZB Lighting LED downlight surface-mounted Trixy/E,LED/9/12/15W-3000/4000K - 901717002"
Ultra-flat downlight suitable for recessed or surface installation. Housing: Plastic (polycarbonate), UV-resistant. Perfect heat management with an aluminium heat sink. Diffuser: Plastic, transparent, with opal reflector foil. Lateral light emission (RZB SIDELITE® technology) for homogeneous light distribution. MultiColour: Colour temperature individually adjustable either 3000 K or 4000 K via rear switching element. Factory setting is 4000 K. MultiLumen: 3 steps adjustable luminous flux. Factory setting is the highest luminous flux. MultiCutOut: With adjustable spring clamps, different ceiling cut-outs can be individually adhered to. Suitable for ceiling cut-outs from Ø 65 to 205 mm. Suitable for recessed mounting in ceilings and surface mounting on ceilings and walls. Suitable for through-wiring. Integral driver.
Electrical data
| energy efficiency index: | F |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE, EAC |
| lifetime: | 40000 h |
Casing
| form type: | round |
|---|---|
| protection type: | IP20 |
| material: | plastic, polycarbonate |
| mounting: | surface mounting |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| multi-lumen: | yes |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 3000/4000 |
| color rendering index [CRI]: | >80 |
| lamp type: | LED |
| lamp efficiency: | 100-123 lm/W |
| inclusive lamp: | yes |
| lum flux: | 990/1100/1500/1650 lm |
Dimensions & packaging
| EAN | 4051859713111 |
|---|---|
| Length | 235 mm |
| Width | 235 mm |
| Height | 25 mm |
| Weight | 500 g |
