Product information "Osram LED-Driver OT WI 15/220-240/1A0 NFC CA LPI - 4062172228039"
Discover the high-quality LED driver OT WI 15/220-240/1A0 NFC CA LPI, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: OT WI 15/220-240/1A0 NFC CA LPI
- EAN: 4062172228039
- Insulation: SELV
- Input voltage AC: 198...264 V
- DC input voltage: 176...276 V
- Nominal output power: 18 W
- Nominal output voltage: 10...54 V
- Nominal output current: 150...1050
- Power factor [λ]: 0.33C...0.98
- Inrush current: 20.0 A
- Max. Number of ECGs on 16 A (B) fuse: 130
- Maximum efficiency: 87.5
- Ripple (100 Hz): < 3
- Dimming function: Bluetooth CASAMBI
- Corridor function: No
- Constant lumen function: Programmable
- DALI-2: No
- Programming interface: NFC
- Programming device: NFC
- Emergency mode: Yes
- Suitable for emergency lighting: Yes
- Service life: 50000 / 100000
- Operating temperature [Tₐ] in °C: -20...+50
- Maximum housing temperature [Tᶜ] in °C: 80
- Protection class: I, II
- Protection class: IP20

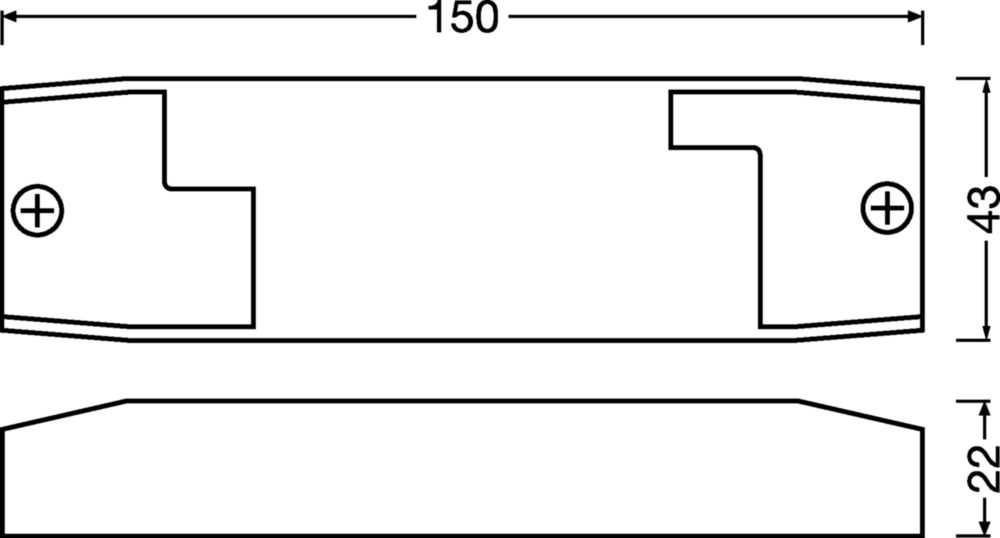

- Dimensions (L x W x H): 150 x 42.5 x 22 mm
- Certificates & approvals: CE, UKCA, ENEC, EAC, EL
The OT WI 15/220-240/1A0 NFC CA LPI LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 87.5% and a low ripple of < 3%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple adjustment of the rated output currents using NFC. With a service life of 50000 / 100000 hours and a robust design, the OT WI 15/220-240/1A0 NFC CA LPI is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4062172228039 |
|---|
