Lunatone Light Management DALI Radio Remote Control + Transceiver wDALI Remote Black - 86459534-B+T
Lunatone Light Management DALI Radio Remote Control + Transceiver wDALI Remote Black - 86459534-B+T
Shipping in 5 day(s)
€223.72
Prices incl. VAT plus shipping costs net €188.00
Product information "Lunatone Light Management DALI Radio Remote Control + Transceiver wDALI Remote Black - 86459534-B+T"

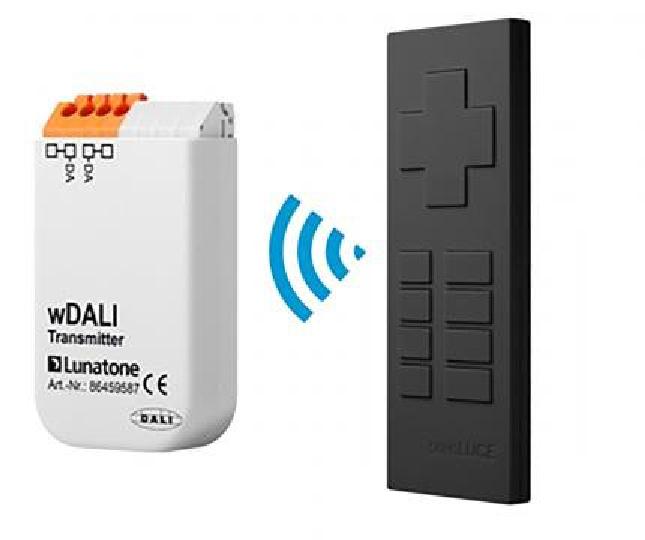

The Lunatone light management set, consisting of an IP20 protected black wireless remote control and a transceiver wDALI Remote, enables the wireless radio control of DALI systems.

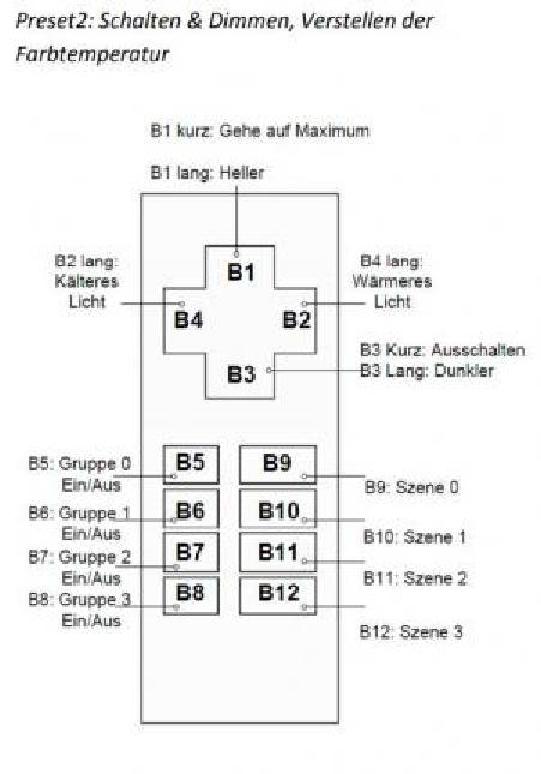

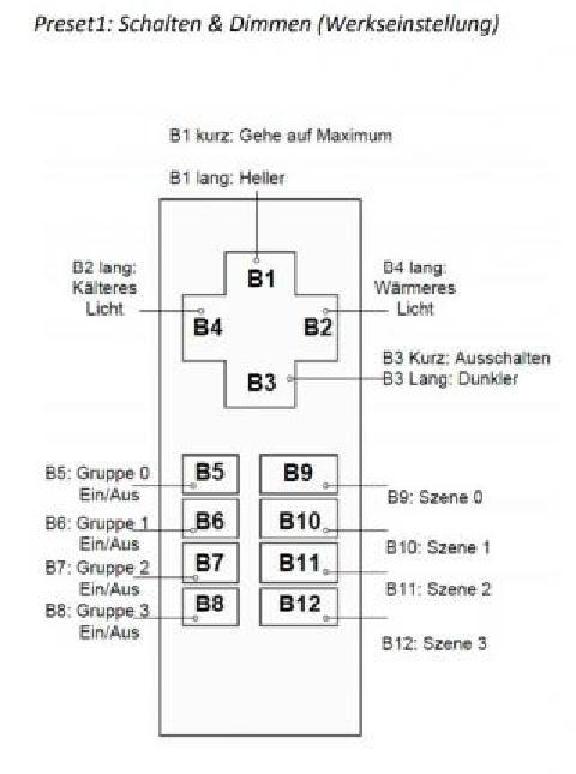

The remote control features 12 buttons. Each button can be freely assigned different functions. In addition, you can assign up to four effective ranges with individual functions to each button. An individual switching behavior can be set for each button (for example, short / long push button, toggle, stairways function).
The system has theDALI DT8-support for adjustable white luminaires and a configurable power upfunction as well as a memory function for brightness. It can be easilyconfigured via the DALI cockpit software tool. The factory default setting alsoallows basic control functions without configuration.

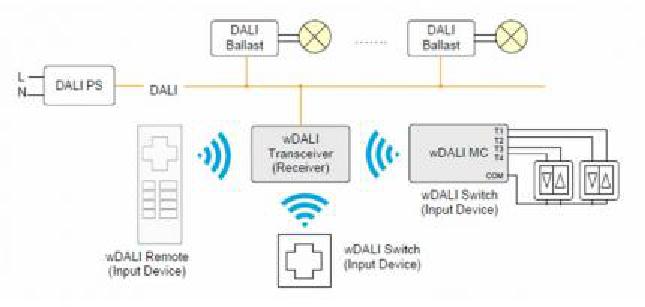

The transceiver wDALI remote is supplied via the DALI line so that no additional connection is needed. Multiple transceivers can be used on the same DALI signal line.
Electrical data
| rated voltage: | Batterie V |
|---|---|
| conformity: | CE |
Casing
| protection type: | IP20 |
|---|---|
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | black |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| EAN | 9010342010958 |
|---|---|
| Weight | 90 g |
