Product information "Lunatone Light Management Combi Sensor Module DALI CS traffic white matt SM - 86458621-W16-AP"
Sensor module for DALI lighting control systems

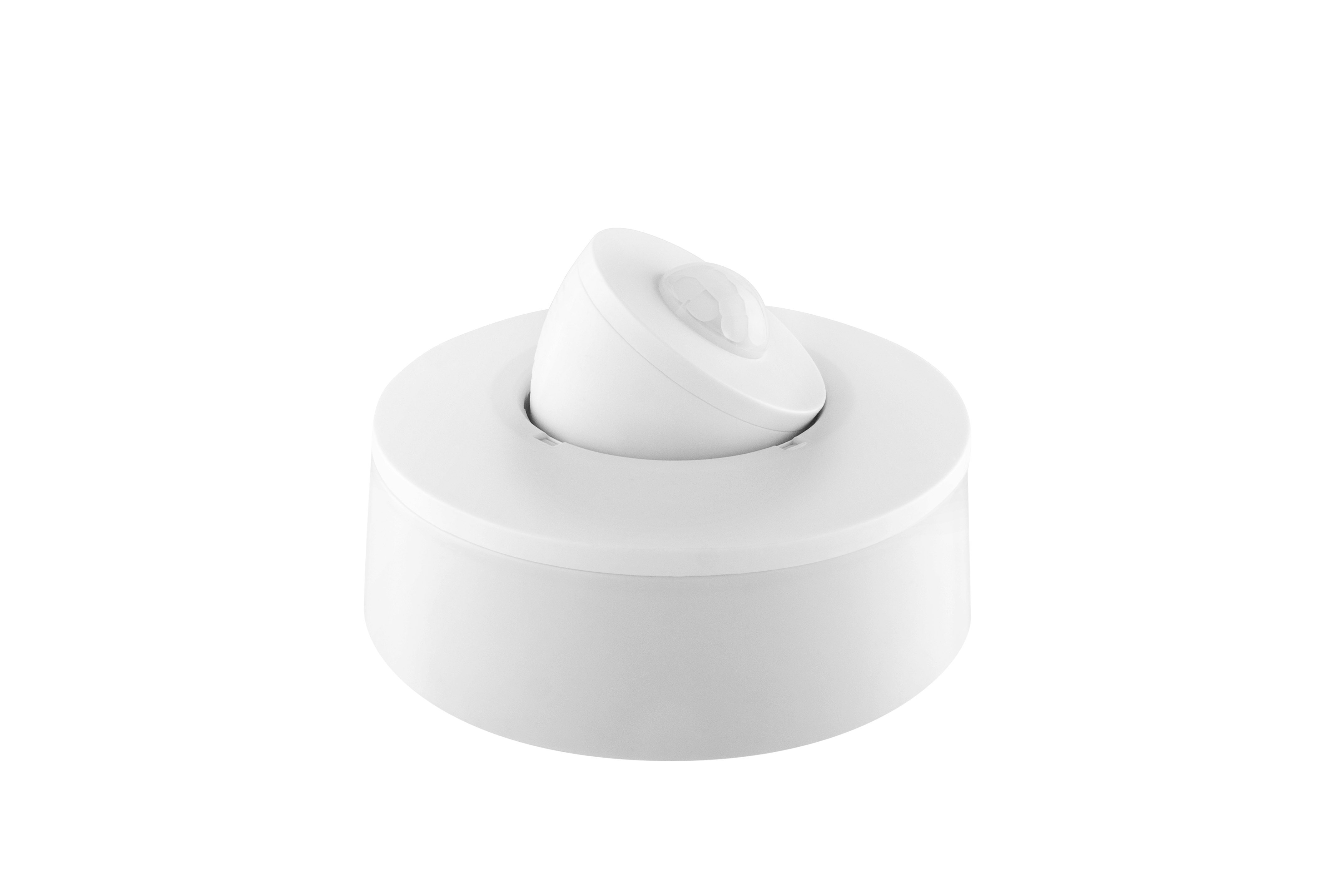

The Lunatone DALI CS Combi Sensor Module in the color "traffic white matt" is used for motion detection (PIR) and light intensity measurement in DALI lighting control systems. Additionally, it has an integrated temperature sensor. There are 5 operating modes available (from FW 5.0): motion-controlled constant light control, motion-controlled light, motion-controlled and manually activated constant light control, constant light control and Off Only.
Integrated corridor function
In addition, the Lunatone sensor unit has a corridor function (second light value before switching off in the absence). It can be used either as an active light control unit or as a sensor unit for integration in building management systems.
The configuration is very simple via the DALI bus, using the PC software tool DALI-Cockpit. Several sensors can be used in one DALI circuit. The Combi Sensor Module DALI CS is supplied directly via the DALI line. It is suitable for surface mounting.
Downloads & Documents
ENEC-Zertifikat-Lunatone-Lichtmanagement-Combi-Sensor-Modul-DALI-CS-Verkehrsweiss-matt-AP-86458621-W16-AP_1592154550_2
CB-Zertifikat-Lunatone-Lichtmanagement-Combi-Sensor-Modul-DALI-CS-Verkehrsweiss-matt-AP-86458621-W16-AP_1592154550_3
Declaration-of-Confirmity-Lunatone-Light-Management-Combi-Sensor-Module-DALI-CS-traffic-white-matt-SM-86458621-W16-AP_1592154550_4
CB-Certificate-Lunatone-Light-Management-Combi-Sensor-Module-DALI-CS-traffic-white-matt-SM-86458621-W16-AP_1592154544_5
Konformitaetserklaerung-Lunatone-Lichtmanagement-Combi-Sensor-Modul-DALI-CS-Verkehrsweiss-matt-AP-86458621-W16-AP_1592154544_6
Datenblatt-Lunatone-Lichtmanagement-Combi-Sensor-Modul-DALI-CS-Verkehrsweiss-matt-AP-86458621-W16-AP_1592154544_7
ENEC-Certificate-Lunatone-Light-Management-Combi-Sensor-Module-DALI-CS-traffic-white-matt-SM-86458621-W16-AP_1592154544_8
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| protection type: | IP20 |
| material: | plastic |
| mounting: | surface-mounted |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 70 °C |
Photometric data
| sensor: | yes |
|---|---|
| response brightness to: | 2500 Lux |
| response brightness from: | 0 Lux |
| color: | white |
| interface: | DALI |
| sensor type: | passive infrared |
| solar panel: | no |
Logistic data
| country of origin: | Bulgaria |
|---|
Dimensions & packaging
| EAN | 9010342010804 |
|---|---|
| Height | 50 mm |
| Weight | 121 g |
