Lunatone Light Management 0-10V-DALI Interface - 86468352-001
Product information "Lunatone Light Management 0-10V-DALI Interface - 86468352-001"
The light management 0-10V-DALI converter from Lunatone is a compact interface module for converting a 0-10V analog signal into a digital DALI signal for electrically isolated control inputs.

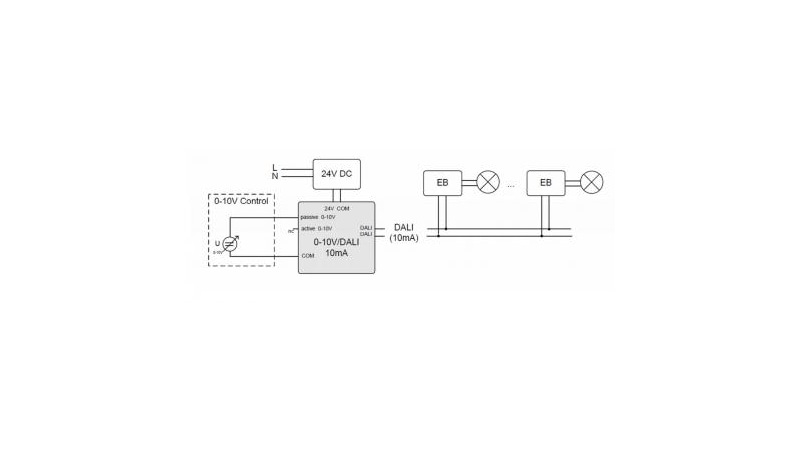

A DALI power supply for a small DALI sub-circuit with up to 4 standard DALI ballasts (10 mA) is integrated. By means of a DALI expander, up to 64 DALI ballasts can be controlled.

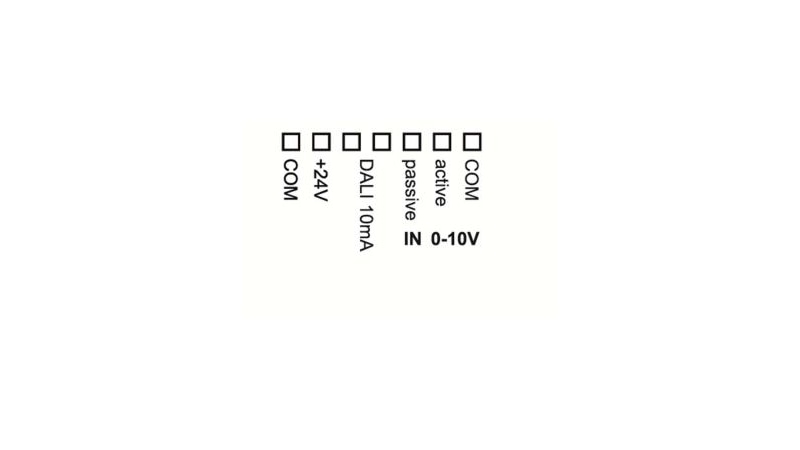

The Lunatone interface has a passive and an active 0-10V input. The converted 1-10 V voltage is sent broadcast to the DALI sub-circuit. A change in the 0-10 V input voltage (> 1%) is used as trigger event.
A galvanic isolation between the ECGs connected to the DALI output (10 mA) and the 0-10 V signal input (and the 24 V supply input) can be realised with the help of a DALI expander.
The interface module is supplied by a 12-24 V power supply. The housing of the light management 0-10V-DALI is equipped with the IP20 protection.
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 12-24 V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -10 °C |
| environment temperature to: | 75 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

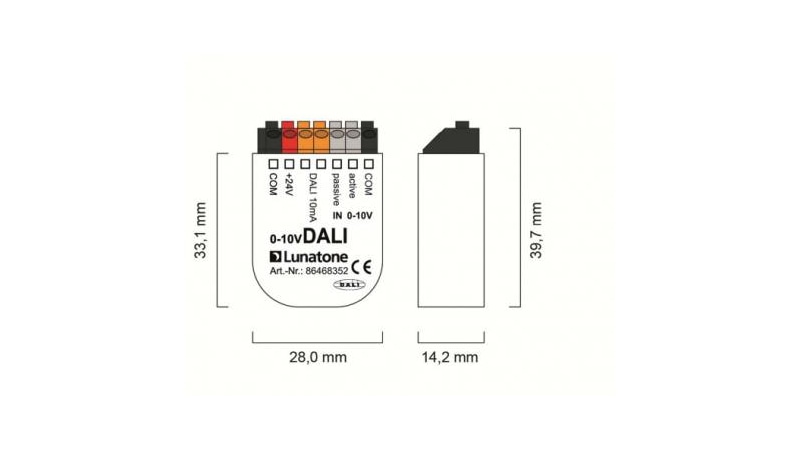

Dimensions & packaging
| EAN | 9010342010569 |
|---|---|
| Length | 40 mm |
| Width | 28 mm |
| Height | 14 mm |
| Weight | 11 g |
