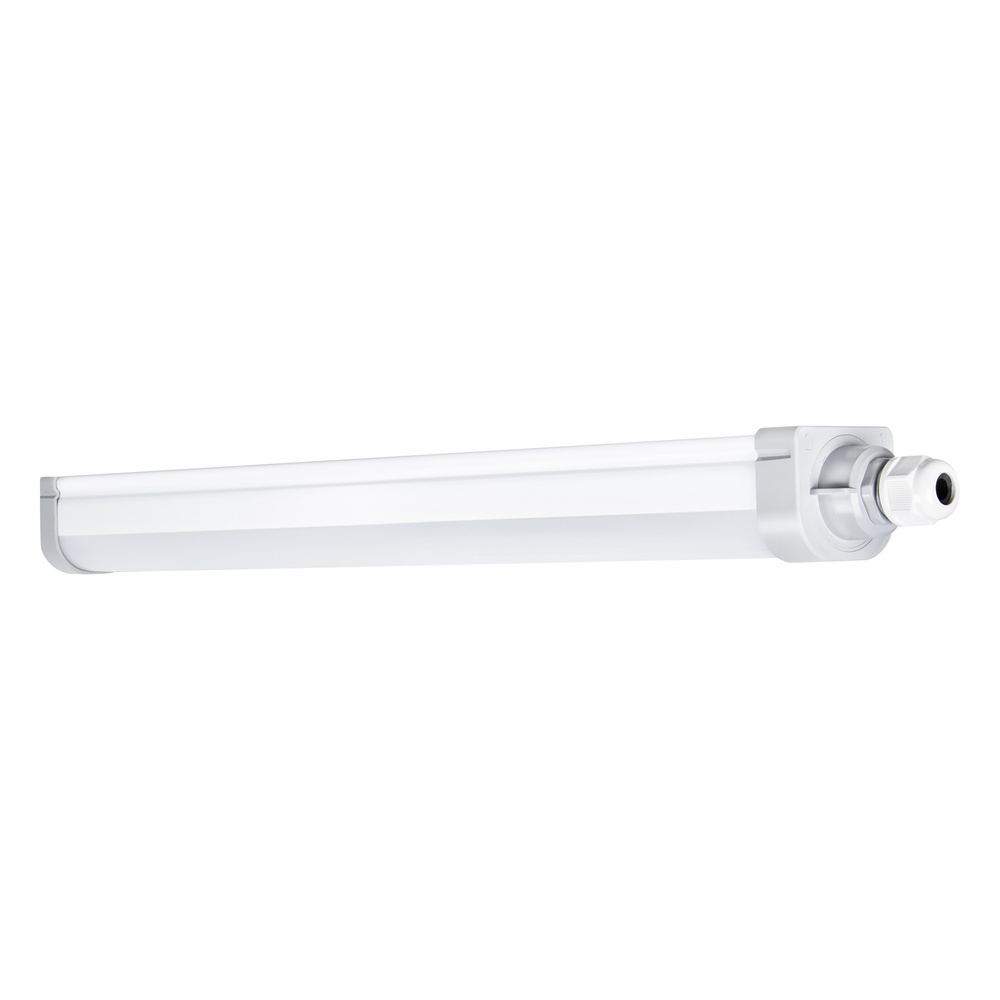

Ledvance LED waterproof luminaire DAMP PROOF COMPACT GEN 2 600 V 16W 840 IP66 - 4058075740853
LEDVANCE
Ledvance LED waterproof luminaire DAMP PROOF COMPACT GEN 2 600 V 16W 840 IP66 - 4058075740853
Product number:
4058075740853
Immediately available
€43.40
Content:
1 Stück
Prices incl. VAT plus shipping costs net €36.47
Product information "Ledvance LED waterproof luminaire DAMP PROOF COMPACT GEN 2 600 V 16W 840 IP66 - 4058075740853"
Modern wet room luminaires with lenses-switched versions. Product properties: Power select option available to choose between two luminous flows. Lifespan (L80/B10): up to 50,000 h (at 25 ° C). High light output: up to 123 lm/W. Polycarbonate housing with IP66 and IK08. radiation angle: 120 °. Product advantages: Very versatile thanks to available Power Select versions, allow the 2 different lumen packages. Simple installation thanks to Mounting clamps that can be positioned freely on the lamp. Easy access to the connection terminal thanks to the end cap with Twist-and-Lock mechanism. Toolless electrical connection thanks to push button connection clamp. Even light distribution. 5 years of guarantee. Areas of application: industrial and warehouse areas. Parking spaces and underpasses. Garages. Workshops, manufacturing roads. Technical equipment: contain brackets made of stainless steel and safety screws. Contain Mounting accessories (hanging kit, theft protection kit).
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| conformity: | CB, CE, EAC, TÜV Süd, UKCA |
| lifetime: | 60000 h |
| switching cycles: | 100000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP66 |
| material: | polycarbonate |
| mounting: | suspended, surface mounting, ceiling mounting |
| impact resist: | IK08 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| radiation angle: | 120 ° |
|---|---|
| sensor: | no |
| dimmable: | no |
| color code: | 840 |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp type: | LED |
| lamp efficiency: | 120 lm/W |
| inclusive lamp: | yes |
| sensor type: | no |
| solar panel: | no |
| lum flux: | 1920 lm |
Logistic data
| item category: | waterproof luminaires |
|---|
Dimensions & packaging
| EAN | 4058075740853 |
|---|---|
| Length | 60 mm |
| Width | 672 mm |
| Height | 67 mm |
| Weight | 527 g |
