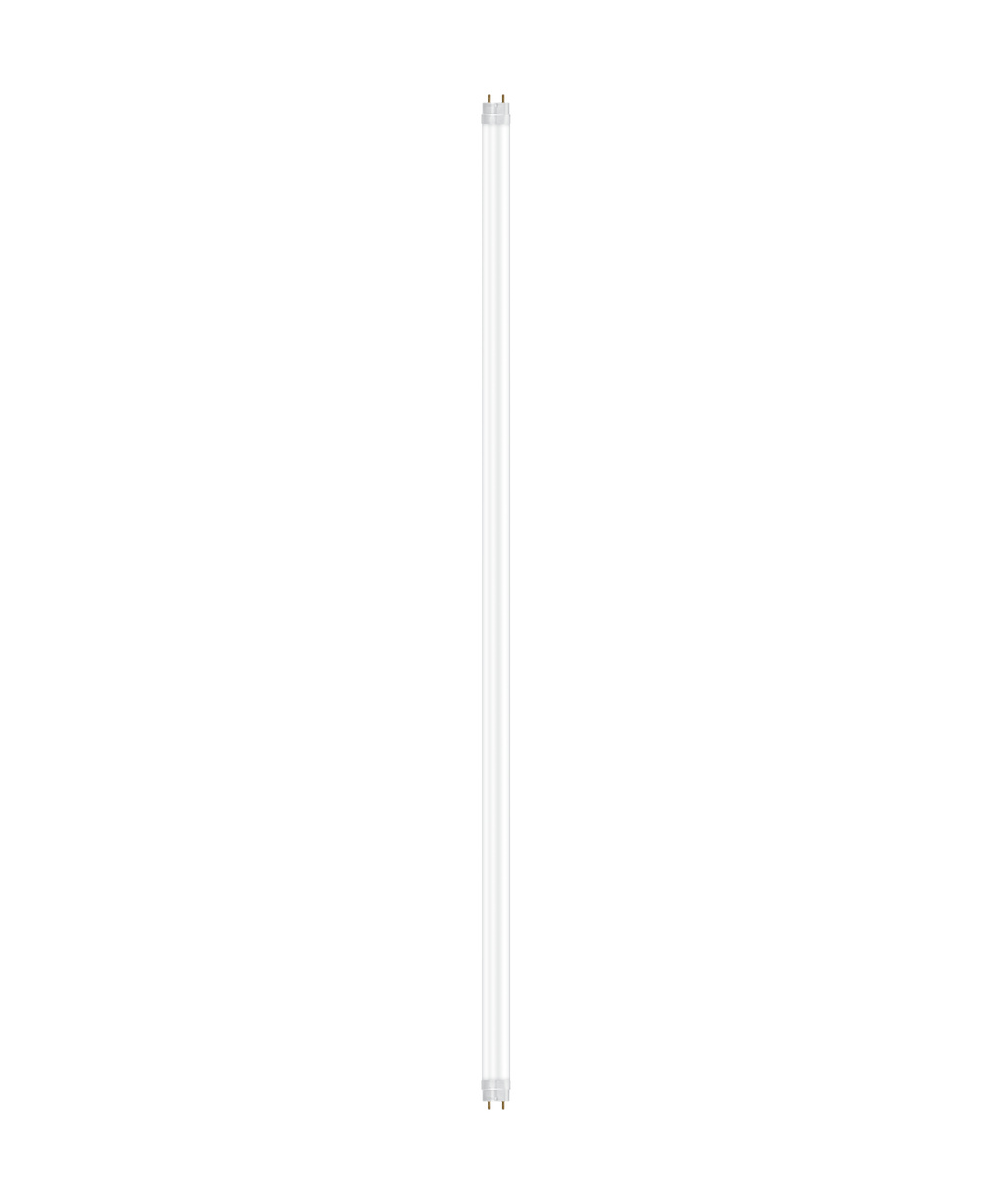

Ledvance LED tube LED TUBE T8 EM S 1050 mm 11.4W 840 – 4099854037535 – replacement for 38 W - 4099854037535

LEDVANCE

Ledvance LED tube LED TUBE T8 EM S 1050 mm 11.4W 840 – 4099854037535 – replacement for 38 W - 4099854037535

Product number: 4099854037535

Immediately available

c
a g
Datasheet

€15.42


Content: 1 Stück

Prices incl. VAT plus shipping costs net €12.96

Product information "Ledvance LED tube LED TUBE T8 EM S 1050 mm 11.4W 840 – 4099854037535 – replacement for 38 W - 4099854037535"

Powerful LED tubes for electromagnetic ballasts (KVG/VVG), splinter protection. Product properties: LED replacement for conventional fluorescent lamps with G13 base in KVG or mains voltage. Flicker -arm according to EU 2019/2020 (SVM ≤0.4 / PSTLM ≤ 1). Glass lamp tube with splinter protection for applications e.g. in the food industry. VDE certified according to IEC62776. Individual and tandem operation on conventional ballast (0.6 m version). Lifespan: up to 75,000 h. Protection class: IP20. Product advantages: no passages thanks to glass tube. Splitter protection thanks to special PET coating. Support in implementing the HACCP concepts from production to goods presentation. Very high switching resistance. High luminous flux for demanding lighting tasks. Simple, faster and safe lamp exchange without rewiring. Energy saving of up to 68 % (compared to T8 fluorescent lamp at the KVG). Full brightness without warm -up phase, therefore ideal in combination with sensors. Also suitable for operation at low temperatures. Areas of application: general lighting in ambient temperatures of -20 ...+50 ° C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low -loss and conventional ballast



ECG compatibility

Electronic transformers were all first developed for conventional halogen, fluorescent or compact fluorescent lamps and not for lamps with integrated electronic like LED lamps. Therefore, LEDVANCE is providing a list of electronic control gears (ECG) that have been tested and proven to be compatible with our range of LED lamps

Follow this link to the ECG compatibility list

Electrical data
operating frequency: 50/60 Hz
energy efficiency index: C
rated voltage: 220-240 V
lifetime: 75000 h
switching cycles: 200000
Casing
form type: linear
protection type: IP20
material: glass
Photometric data
dimmable: no
color code: 840
color temperature [Kelvin]: 4000
color rendering index [CRI]: >80
socket: G13
lum flux: 2000 lm
Logistic data
country of origin: China
Dimensions & packaging
EAN 4099854037535
Length 1060 mm
Width 26.7 mm
Height 26.7 mm
Weight 164 g
