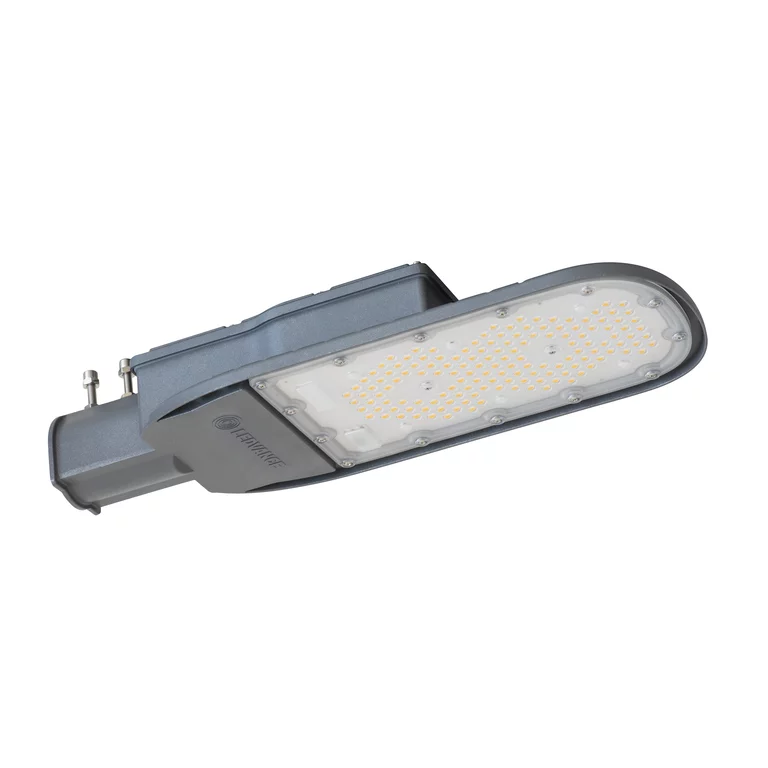

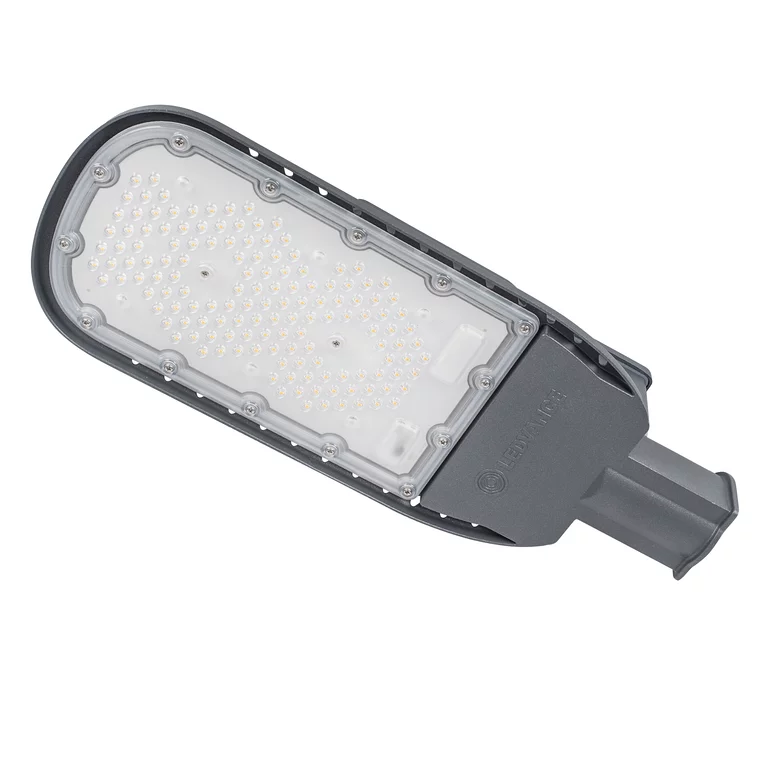

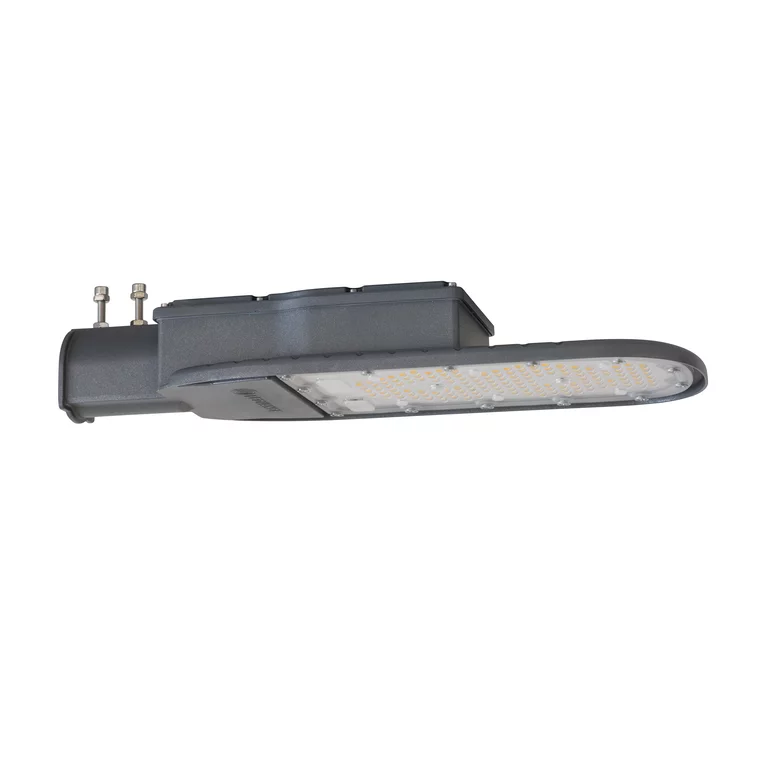

Ledvance LED streetlight ECO AREA HIGH POWER SPD 90W 830 IP66 GY - 4058075557734
LEDVANCE
Ledvance LED streetlight ECO AREA HIGH POWER SPD 90W 830 IP66 GY - 4058075557734
Product number:
4058075557734
Shipping in 7 day(s)
€239.19
Content:
1 Stück
Prices incl. VAT plus shipping costs net €201.00
Product information "Ledvance LED streetlight ECO AREA HIGH POWER SPD 90W 830 IP66 GY - 4058075557734"
For applications with up to 20250 LM light flow requirement. Product properties: Asymmetrical light distribution for a wide range of application. Housing made of robust aluminum die cast. Mast attachment installation at 48 ... 60 mm braid. Supplementary protection: 10 KV (L/N-PE). Integrated ballast with a large input voltage area, suitable for 100 - 277 V ac . Pre-installed, flexible cable (H05RN-F) with 0.5 m in length, 3 x 1.0 mmâ² crimted. Product advantages: functional and minimalist design. Low maintenance and operating costs thanks to the long LED life. 5 years of guarantee. Areas of application: street lighting. Street. Parking spaces. Spread lighting.
Downloads & Documents
Electrical data
| nominal current: | 450 mA |
|---|---|
| operating frequency: | 50-60 Hz |
| rated voltage: | 100-240 V |
| lifetime: | 50000 h |
| system power: | 90 |
| switching cycles: | 100000 |
Casing
| protection type: | IP66 |
|---|---|
| material: | aluminum |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |
Photometric data
| radiation angle: | 150 ° |
|---|---|
| dimmable: | no |
| color: | grey |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 125 lm/W |
| start time: | 0,5 s |
| lum flux: | 11250 lm |
Logistic data
| item category: | outdoor luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075557734 |
|---|---|
| Length | 552 mm |
| Width | 216 mm |
| Height | 91 mm |
| Weight | 3400 g |
