Ledvance LED high bay luminaire HIGH BAY DALI GEN 3 190 W 4000 K 110DEG IP65 - 4058075543942
LEDVANCE
Ledvance LED high bay luminaire HIGH BAY DALI GEN 3 190 W 4000 K 110DEG IP65 - 4058075543942
Product number:
4058075543942
Shipping in 14 day(s)
€408.88
Content:
1 Stück
Prices incl. VAT plus shipping costs net €343.60
Product information "Ledvance LED high bay luminaire HIGH BAY DALI GEN 3 190 W 4000 K 110DEG IP65 - 4058075543942"
LED hall lights with DALI interface. Product properties: Previous DALI drivers contain. Light output: up to 140 lm/w. Protection class: IP65. Product advantages: High compatibility thanks to DALI-2 certification. Dali 2.0 interface for use with dimmers and sensors. Flicker light thanks to special electronic ballast. High light output. Up to 90 % energy savings compared to conventional indoor mirror lights. 5 years of guarantee. Areas of application: replacement for indoor mirror lights with mercury steam or halogen metal steam lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, business buildings, lobbies). Technical equipment: Montagering and hangers contain. Reflectors and refractors available as separate accessories
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 100-277 V |
| lifetime: | 80000 h |
| system power: | 190 |
| switching cycles: | 200000 |
Casing
| protection type: | IP65 |
|---|---|
| material: | aluminum |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |

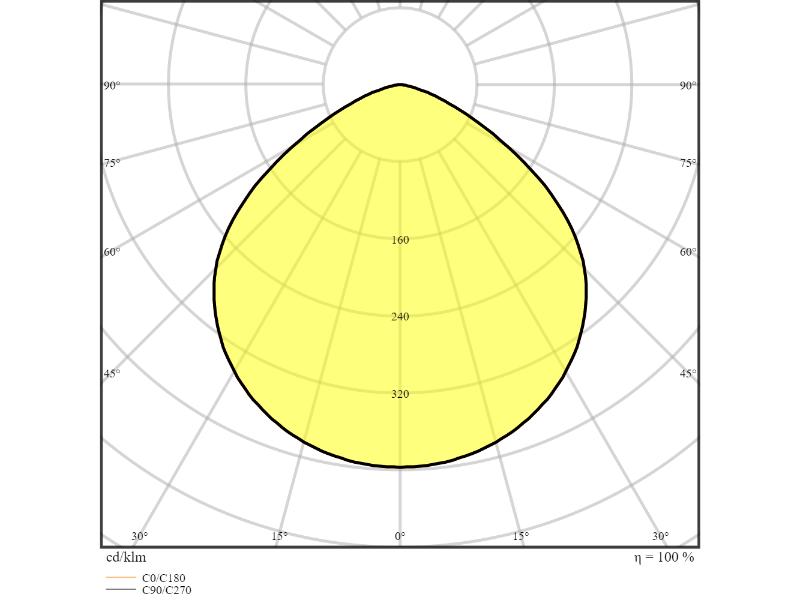

Photometric data
| radiation angle: | 110 ° |
|---|---|
| dimmable: | yes |
| color code: | 840 |
| color: | black |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 140 lm/W |
| interface: | DALI |
| start time: | 0,5 s |
| lum flux: | 27000 lm |
Logistic data
| item category: | LED high bay luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075543942 |
|---|---|
| Length | 321 mm |
| Height | 168 mm |
| Weight | 3768 g |
