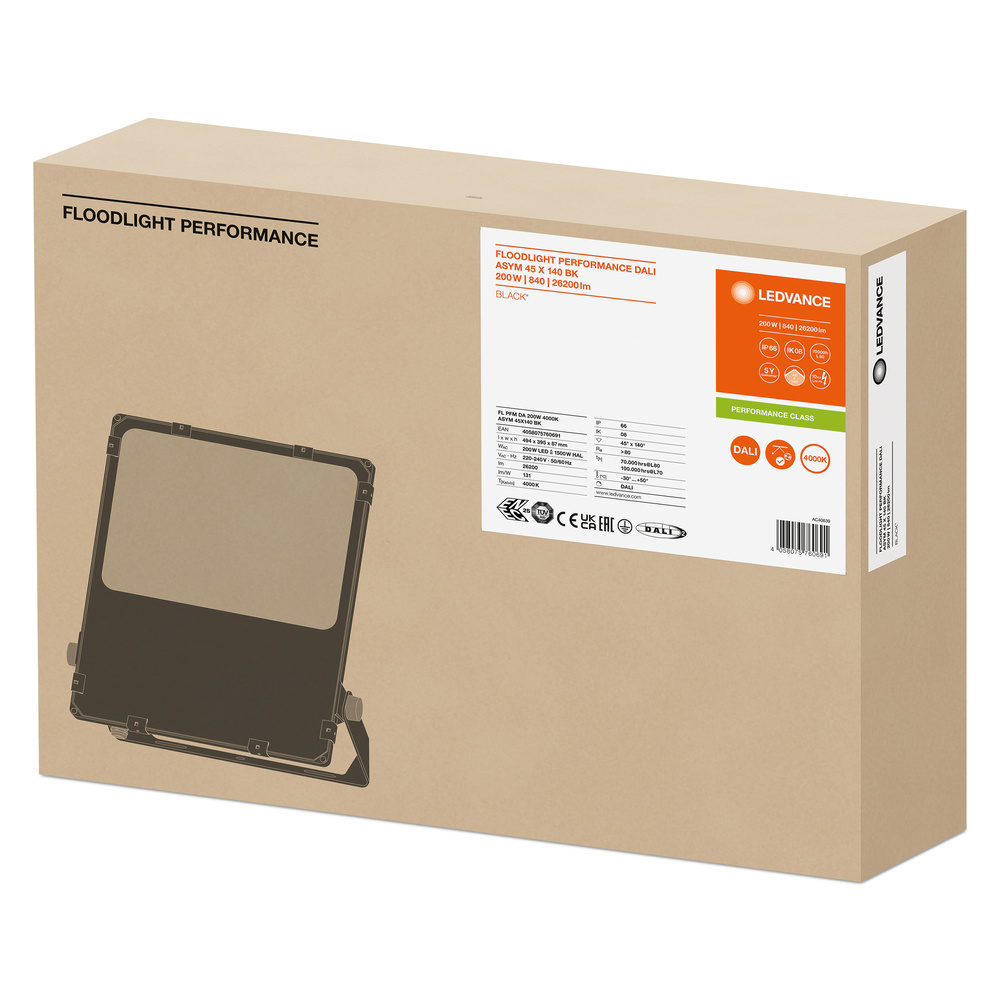

                            Ledvance LED floodlight FLOODLIGHT PERFORMANCE DALI ASYM 45x140 200W 4000K BK - 4058075760691

                    Product number:




                    4058075760691




        Shipping in 7 day(s)
€565.69

                            Content:



                            1 Stück



                            Prices incl. VAT plus shipping costs net €475.37
Product information "Ledvance LED floodlight FLOODLIGHT PERFORMANCE DALI ASYM 45x140 200W 4000K BK - 4058075760691"
        Dali 2.0 based floodlights with very broad, asymmetrical light distribution for surface lighting. Product properties: Dali 2.0 interface for integration into light management systems. High light output: up to 140 lm/W. Asymmetrical light distribution for surface lighting. Bumped (45 °) Mounting bracket with a rotary range of up to 180 °. High overvoltage protection of up to 10 kV (L/N-PE), 6 KV (L-N). Integrated climate membrane to prevent condensation inside the lamp. Connection via cable (2 m), wiring required. Protection class: IP66. Short strength: IK08. Ambient temperature area for operation: -30…+50 ° C. Product advantages: Energy savings of up to 90 % compared to halogen lamp floods. Up to 45 % energy savings compared to lights that use conventional discharge lamps. Bright, robust and durable. Uniform luminance distribution and reduced glare. No light exit in the upper half area (Ulor 0%) at 0 °. Key hole for particularly easy Mounting. 5 years of guarantee. Areas of application: Direct replacement for lights that use HID lamps. Exterior application (IP66). Parking spaces. Public room. Industry. Sports facilities. Parking spaces, industrial roads. D-signs in accordance with EN 60598-2-24 for fire-hazardous branches, e.g. B. by accumulation of dust.

        Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CB, CE, EAC, ENEC, TÜV Süd, UKCA |
| lifetime: | 50000 h |
| system power: | 200 |
| switching cycles: | 100000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP66 |
| material: | aluminum |
| mounting: | ground, surface mounting, ceiling mounting |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |
Photometric data
| radiation angle: | 45 ° |
|---|---|
| sensor: | no |
| dimmable: | yes |
| color code: | 840 |
| color: | black |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp type: | LED |
| lamp efficiency: | 131 lm/W |
| inclusive lamp: | yes |
| interface: | DALI |
| sensor type: | no |
| solar panel: | no |
| lum flux: | 26200 lm |
Logistic data
| item category: | outdoor luminaires |
|---|
Dimensions & packaging
| EAN | 4058075760691 |
|---|---|
| Length | 494 mm |
| Width | 395 mm |
| Height | 87 mm |
| Weight | 6850 g |
