Casambi switching actuator AW2XBTROL - 808839
Product information "Casambi switching actuator AW2XBTROL - 808839"
Switching actuator for roller shutters and blinds with CASAMBI light control
Description
- Switching actuator for controlling electric roller shutters and blinds
- Profiles (selectable in decoupled state):
- Shutter: up and down for roller shutters
- Blind: up and down, as well as adjusting the slat angle for blinds
- Two freely programmable button inputs, usable in the CASAMBI network

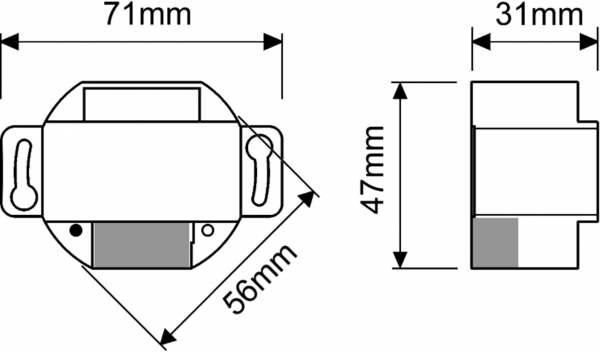

- Integrated antenna (drawing: grey area, do not cover with metal housing)

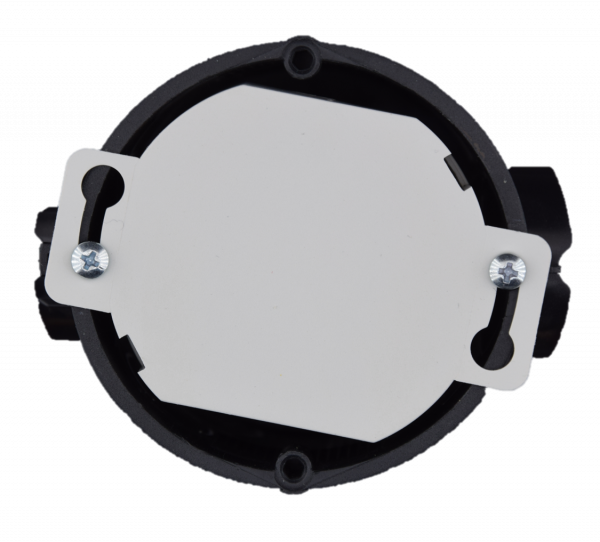

- Built-in device, optimized for use in flush-mounted boxes
- Protect each relay and power supply input with a 10 A fuse!
- With button for function test (trigger with voltage tester or similar). Repeated press: UP DOWN Control LED on off green off off off off on red off off off off
