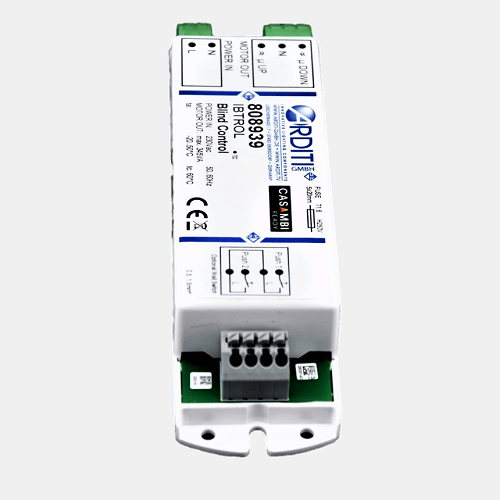

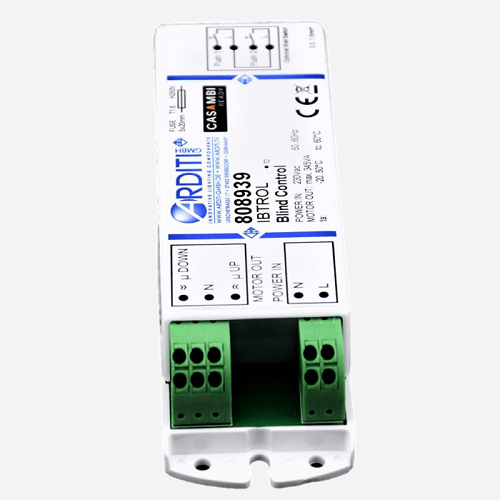

Casambi switching actuator AEBTROL - 808939
Product information "Casambi switching actuator AEBTROL - 808939"
Switching actuator for roller shutters with CASAMBI light control
Description
- Switching actuator for controlling electric roller shutters and blinds, for convenient operation with smart devices.
- Configurable and versatile via the CASAMBI app

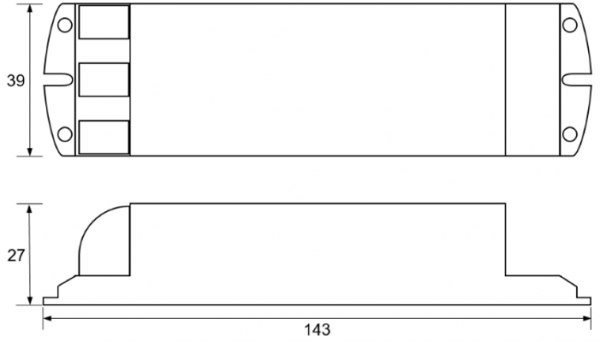

- Integrated antenna (gray area in the drawing, do not cover with metal housing)
- Control is also possible with 2 external buttons (mains potential), do not connect any further external phase!
- Suitable for inductive loads only, maximum 1 motor per device
- Never reverse the direction of a running engine. With replaceable fuse T1.6, H250V, 5 x 20 mm
