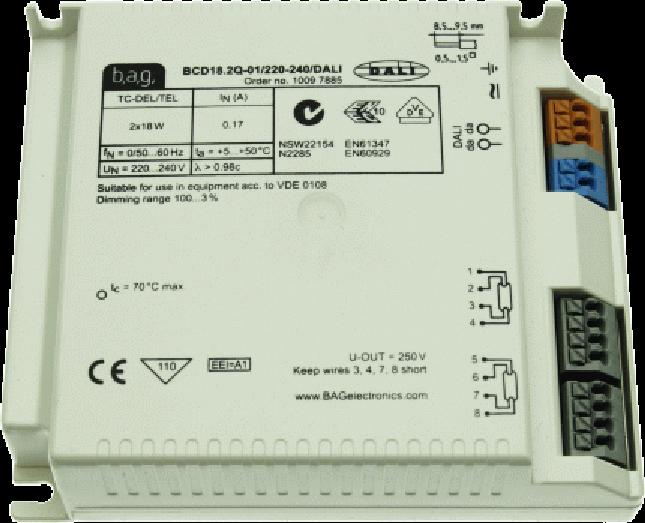

BAG EVG BCD18.2Q-01/220-240/DALI - 10097885
Product information "BAG EVG BCD18.2Q-01/220-240/DALI - 10097885"
Electronic control gears ECG for compact fluorescent lamps
- Dim interface: DALI
- Dim range 3...100% luminous flux
- Multi-Power technology for operation of different lamps and wattages on the same ECG
- Suitable for dimming amalgam lamps
- Electrode preserving warm start for maximum lamp life, even at increased switching frequency; starting time < 1.5 s
- Cut-Off technology at 100% luminous flux: minimised heat current through electrodes during operation, for optimum light output and reduced power
- Safety switch-off in case of abnormal lamp operation, e. g. defective electrode and end of lamp life; tested acc. to EN 61347-2-3 + Test 2
- Constant lamp output independent of mains voltage fluctuations
- Automatic restart after lamp replacement
- Suitable for direct current operation and emergency lighting installations; complies with requirements for emergency lighting according to EN 61347- 2-3/J
- Quick restart of lamps after short power disruptions
- Energy efficiency EEI=A1
- Nominal service life: 50.000 h with failure rate of ≤ 10% and operation at tc=tc,max
Electrical data
| number of channels: | 2 |
|---|---|
| energy efficiency index: | A1 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 18 |
Casing
| max housing temperature (tc-max): | 70 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | 5 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| interface: | DALI |
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| Length | 123 mm |
|---|---|
| Width | 102 mm |
| Height | 33 mm |
| Weight | 246 g |
