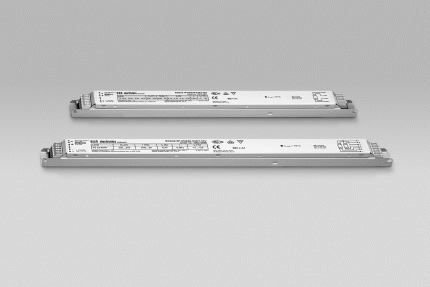

BAG EVG BCD14.4F-01/220-240/1-10V - 10097291
Immediately available
€36.44
(34% saved)
€23.80
Content:
1 Stück
Prices incl. VAT plus shipping costs net €20.00
Product information "BAG EVG BCD14.4F-01/220-240/1-10V - 10097291"
Electronic control gears ECG for fluorescent lamps
- Dimming Interface: 1–10 V
- Dimming range 1...100% luminous flux
- Energy-controlled, electrode preserving lamp warm start for maximum lamp lifeindependent of the switching rate; starting time < 1,5 s
- Cut-Off-Technology at 100% light output: minimized heating current through the electrodes during operation for optimum light output and reduced power loss
- Safety shutdown in case of abnormal lamp operation, eg defect electrode and at lamp service life; according to EN 61347-2-3
- Automatic restart after lamp replacement
- Suitable for DC operation and use in emergency installations: Meets the requirements for emergency lighting acc. EN 61347-2-3/J
- Energy Efficiency Index EEI=A1
- Nominal service life: 50,000 h with failure rate = 10 % and operation at tc=tc,max
Electrical data
| number of channels: | 4 |
|---|---|
| energy efficiency index: | A1 |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 14 |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| environment temperature from: | 5 °C |
| environment temperature to: | 60 °C |
Photometric data
| interface: | 1-10 V |
|---|
Logistic data
| item category: | light management |
|---|
Dimensions & packaging
| Length | 360 mm |
|---|---|
| Width | 39 mm |
| Height | 21 mm |
| Weight | 316 g |
BAG electronics GmbH
Kleinbahnstr. 27
59759 Arnsberg
Deutschland
02932 90009800
