Airfal EX-LED-luminaire PYROS LED IP66 55W 8600lm 4000K Zone 1-21 – PY223 – 8435016966941 - PY223
Airfal EX-LED-luminaire PYROS LED IP66 55W 8600lm 4000K Zone 1-21 – PY223 – 8435016966941 - PY223
Shipping in 21 day(s)
€825.86
Prices incl. VAT plus shipping costs net €694.00
Product information "Airfal EX-LED-luminaire PYROS LED IP66 55W 8600lm 4000K Zone 1-21 – PY223 – 8435016966941 - PY223"
Efficient EX luminaire for Zone 1-21
The efficient explosion-proof PYROS LED luminaire from Airfal is suitable for use in Zone 1-21. Ideal application areas are explosive atmospheres, areas with combustible gases and areas next to fuel pumps.The EX luminaire has a nominal output of 55 watts, a luminous flux of 8600 lumens and an efficiency of 156.4 lm / W. With its light color of 4000 K, it provides neutral white light. The length is 1200 mm.
IP66 protection against water and dust
Thanks to its IP66 protection, the LED luminaire is reliably protected against the ingress of water and dust. In addition, it has the impact strength IK10. The housing is made of polycarbonate, has aluminum covers and rugged ATEX cable glands. The Airfal EX-LED light has a lifespan of 50,000 hours.
Downloads & Documents
ATEX-Zertifikat-EX-LED-Leuchte-PYROS-LED-IP66-55W-8600lm-4000K-Airfal-PY223_1592174095_2
Declaration-of-Confirmity-EX-LED-luminaire-PYROS-LED-IP66-55W-8600lm-4000K-Airfal-PY223_1592174095_3
Konformitaetserklaerung-EX-LED-Leuchte-PYROS-LED-IP66-55W-8600lm-4000K-Airfal-PY223_1592174095_4
Montageanleitung-EX-LED-Leuchte-PYROS-LED-IP66-55W-8600lm-4000K-Airfal-PY223_1592174095_5
Datenblatt-EX-LED-Leuchte-PYROS-LED-IP66-55W-8600lm-4000K-Airfal-PY223_1592174089_6
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| through wiring: | no |
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 50000 h |
| system power: | 55 |
Casing
| ex zone: | 1/21 |
|---|---|
| ballproof: | no |
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP66 |
| material: | polycarbonate |
| mounting: | surface mounting |
| impact resist: | IK10 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| radiation angle: | 119 ° |
|---|---|
| sensor: | no |
| dimmable: | no |
| color code: | 840 |
| color: | grey |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp type: | LED |
| inclusive lamp: | yes |
| sensor type: | no |
| solar panel: | no |
| lum flux: | 8600 lm |
Logistic data
| item category: | EX-luminaires (ATEX) |
|---|---|
| country of origin: | Spain |

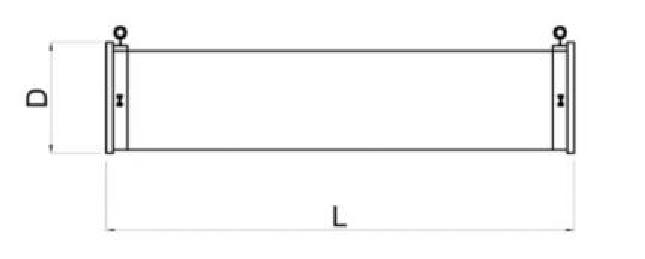

Dimensions & packaging
| Length | 1357 mm |
|---|---|
| Width | 150 mm |
| Height | 150 mm |
