MCT Brattberg
Global Industry Standard for Fire Protection Cable Penetrations since 1950
MCT Brattberg has been the world's leading manufacturer of modular fire protection sealing systems for over 50 years. The Swedish company developed the Multi Cable Transit System – a robust solution for cable and pipe penetrations that meets the highest safety requirements. MCT Brattberg systems are used in nuclear power plants, submarines, radar stations and other critical infrastructures where absolute reliability is essential.
€5.76 net €4.84
Shipping in 7 day(s)
- Comprehensive advice & support
- over 10,000 articles in the shop
- Shipping in 24 hours
- thousands of satisfied customers
KATHRIN BRANDT
Employee Purchasing from TroisdorfGreat advice and friendly service. I was helped immediately and competently with any questions. Gladly again.
OMAR NASER
Office Manager from Frankfurt a.M.Goods are well packaged and arrive safely, which is important to me. My mail was answered immediately.
RAINER SEIDEL
Master carpenter from WiesbadenHad to replace a lamp, but the same was no longer available. Great advice, found a suitable replacement and delivered it quickly.
Modular System for Maximum Safety

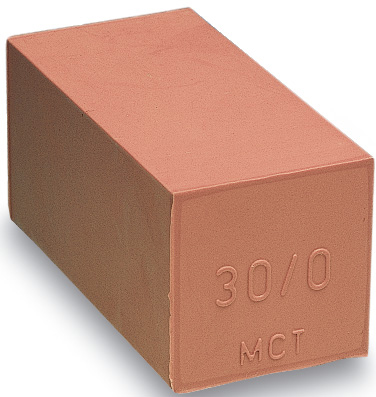

The MCT Brattberg system essentially consists of two components: robust frames (RGB rectangular, RGP round) and packing or filler blocks made from the synthetic elastomer Lycron. Compression pressure creates a multifunctional seal that not only provides fire protection up to S90, but is also watertight up to 10 bar and explosion-proof up to 40 bar. Installation is straightforward even with cables already in place.
The dimensions of 120.5 mm internal width, 60 mm depth and 10 mm material thickness have become the global industry standard. Individual frames can be combined into larger frame groups. Packing and filler blocks cover cable diameters from 3.5 to 101.5 mm, enabling maximum flexibility for new installations and retrofits.
Certified Quality for Critical Applications
MCT Brattberg is certified according to ISO 9001 and ISO 14001 for quality and environmental management systems. The systems meet requirements according to DIN 4102, IECEx standard and ATEX directive and have been awarded by numerous international institutes. Special E-series offer additional protection against electromagnetic pulses (EMP) and electronic sabotage. In Germany, distribution is handled by Wichmann Brandschutzsysteme with comprehensive technical advice and training.
Electrician Tip: MCT Brattberg modular seals are the first choice for safety-critical penetrations. Easy handling saves time while combining fire, water and explosion protection in one system – ideal for demanding installations.
