Shipping in 14 day(s)

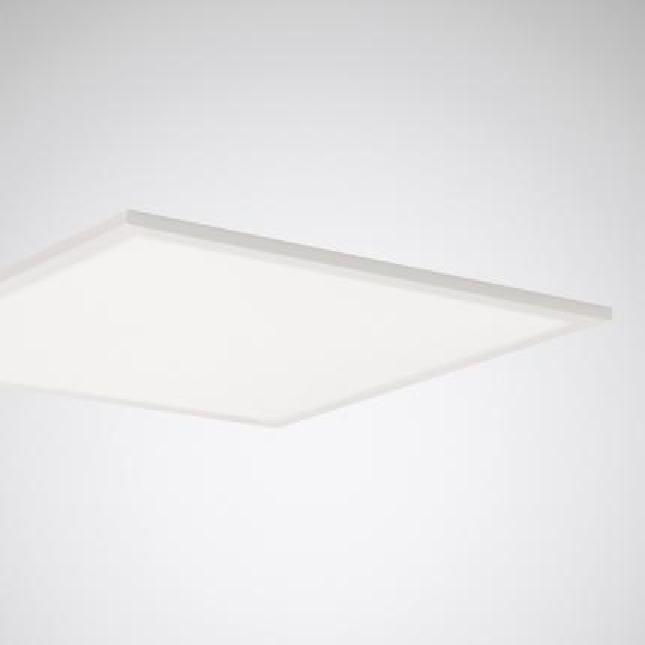

Recessed LED luminaire with microprismatic cover. Version M73, system dimension 600 x 600 mm. The prismatic PMMA surface of the optical system has a glare-reducing effect. With narrow-wide light distribution. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/m²
...
Read more
€164.86
Content:
1 Stück
Prices incl. VAT plus shipping costs net €138.54
Product information "Trilux Siella G6 M73 PW19 LED34-830 ETDD"
Recessed LED luminaire with microprismatic cover. Version M73, system dimension 600 x 600 mm. The prismatic PMMA surface of the optical system has a glare-reducing effect. With narrow-wide light distribution. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/m² for beam angle above 65° all-round. Harmonious light effect due to homogeneously illuminated light emission. Luminaire luminous flux 3400 lm, connected load , luminous efficiency of luminaire 110 lm/W. Light colour warm white, correlated colour temperature [CCT] 3000 K, Colour locus tolerance [initial MacAdam] ≤ 4 SDCM, general colour rendering index [CRI] Ra > 80. Mean rated service life L80[tq 25 °C] = 35,000 h, mean rated service life L70[tq 25 °C] = 50,000 h. Surface coated white . Dimensions [L x W]: 595 mm x 595 mm, luminaire height 15 mm. Permissible ambient temperature [ta]: - +. With external operating device, digitally dimmable [DALI]. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Downloads & Documents
Casing
| ballproof: | no |
|---|---|
| form type: | square |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color temperature [Kelvin]: | 3000 |
Logistic data
| item category: | LED panel luminaires |
|---|
Dimensions & packaging
| EAN | 4018242511587 |
|---|---|
| Length | 595 mm |
| Width | 595 mm |
| Height | 15 mm |
