Trilux GmbH & Co. KG

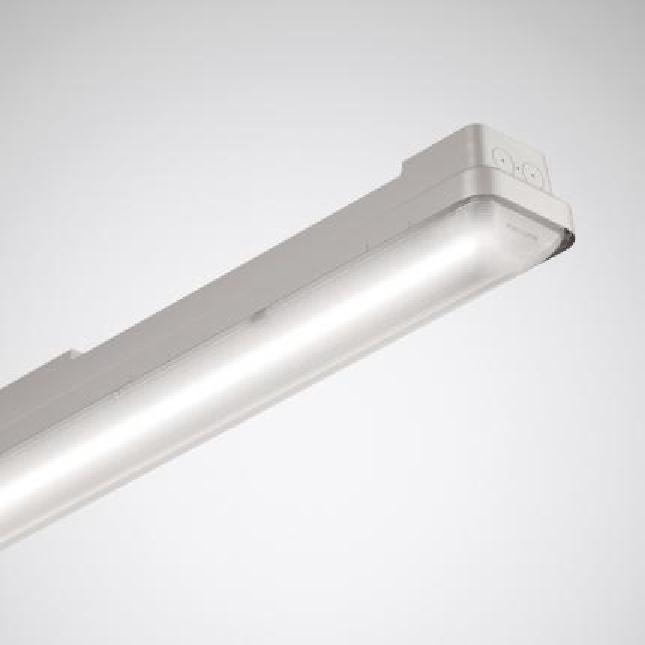

Trilux OleveonF 15 L 6000-865 ET

Product number: 7128340
Trilux GmbH & Co. KG

Trilux OleveonF 15 L 6000-865 ET

Product number: 7128340

Shipping in 14 day(s)

LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. PMMA diffuser with inner prism structure. With Lambertian light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 6300 lm, connected load 53, ... Read more

€128.77


Content: 1 Stück

Product information "Trilux OleveonF 15 L 6000-865 ET"

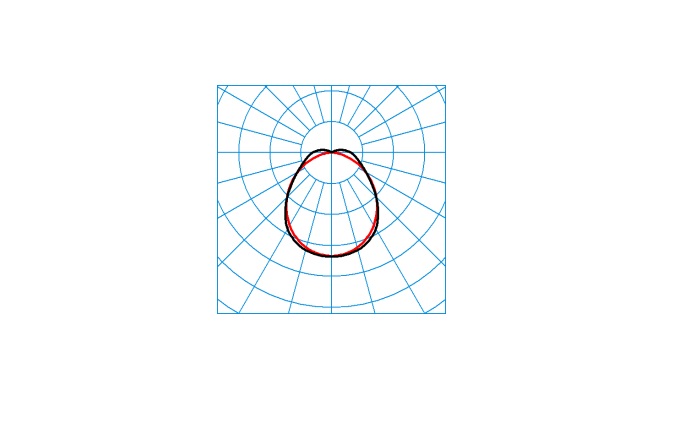

LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. PMMA diffuser with inner prism structure. With Lambertian light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 6300 lm, connected load 53,00 W, luminous efficiency of luminaire 119 lm/W. Light colour daylight white, correlated colour temperature [CCT] 6500 K, general colour rendering index [CRI] Ra > 80. Mean rated service life L80[tq 25 °C] = 50,000 h. Luminaire body of PC. Colour of luminaire body light grey [RAL 7035]. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Dimensions [L x W]: 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature [ta]: -20 °C - +35 °C. Safety class [EN 61140]: I, protection rating [DIN EN 60529]: IP66, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. With 3-pole terminal to 2.5 mm2. With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Casing
form type: linear
Photometric data
dimmable: no
color: grey
color temperature [Kelvin]: 6500
Logistic data
item category: waterproof luminaires

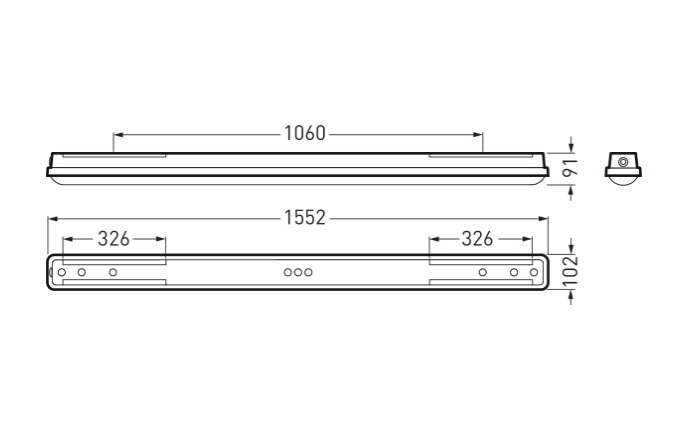

Dimensions & packaging
EAN 4018242409396
Length 1552 mm
Width 102 mm
Height 91 mm
