LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. PMMA diffuser with inner prism structure. With Lambertian light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 4000 lm, connected load 32,
...
Read more
€201.57
Content:
1 Stück
Prices incl. VAT plus shipping costs net €169.39

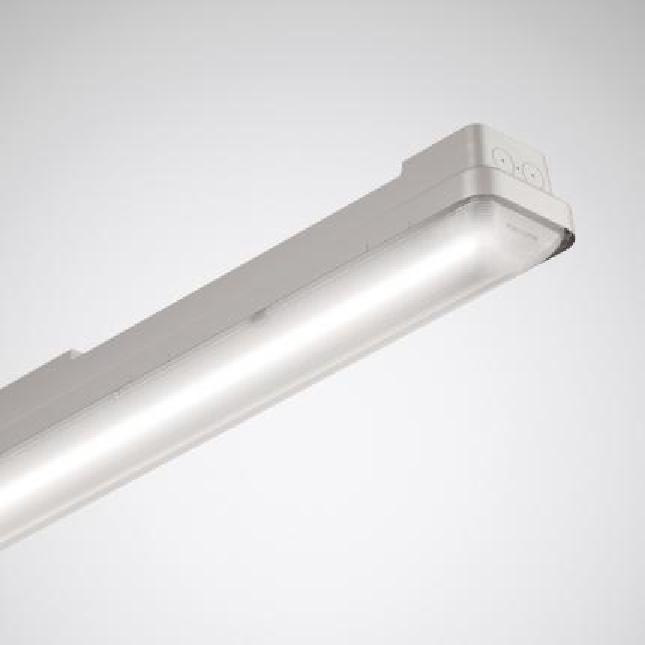

Product information "Trilux OleveonF 15 L 4000-840 ETDD +LV"
LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. PMMA diffuser with inner prism structure. With Lambertian light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 4000 lm, connected load 32,00 W, luminous efficiency of luminaire 125 lm/W. Light colour neutral white, correlated colour temperature [CCT] 4000 K, general colour rendering index [CRI] Ra > 80. Mean rated service life L80[tq 25 °C] = 50,000 h. Luminaire body of PC. Colour of luminaire body light grey [RAL 7035]. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Dimensions [L x W]: 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature [ta]: -20 °C - +35 °C. Safety class [EN 61140]: I, protection rating [DIN EN 60529]: IP66, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. With 5-pole terminal to 2.5 mm2. With electronic transformer, digitally dimmable [DALI]. The luminaire is monitoring-ready [MOR], supplies luminaire data for monitoring or for predictive maintenance and is therefore compatible to the TRILUX Digital Services [Energy Monitoring and Light Monitoring]. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. With 5-core through-wiring, 1.5 mm².
Downloads & Documents
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color: | grey |
| color temperature [Kelvin]: | 4000 |
Logistic data
| item category: | waterproof luminaires |
|---|
Dimensions & packaging
| EAN | 4018242406678 |
|---|---|
| Length | 1552 mm |
| Width | 102 mm |
| Height | 91 mm |
