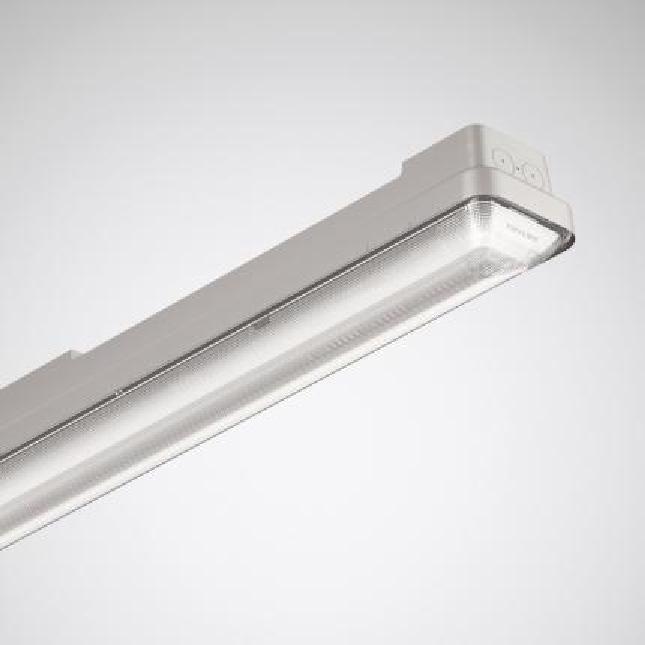

Trilux OleveonF 15 B 6000-840 ET PC EB3

Product number: 7126040
Trilux GmbH & Co. KG

Trilux OleveonF 15 B 6000-840 ET PC EB3

Product number: 7126040

Shipping in 14 day(s)

LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. Polycarbonate diffuser with inner prism structure. With symmetric wide light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 6000 lm, conne ... Read more

€413.45


Content: 1 Stück

Product information "Trilux OleveonF 15 B 6000-840 ET PC EB3"

LED weather-proof surface-mounted luminaire IP66. Suspended mounting possible via optional accessories. Polycarbonate diffuser with inner prism structure. With symmetric wide light intensity distribution. Glare evaluation [EN 12464-1] according to UGR < 25. Luminaire luminous flux 6000 lm, connected load 49,00 W, luminous efficiency of luminaire 122 lm/W. Light colour neutral white, correlated colour temperature [CCT] 4000 K, general colour rendering index [CRI] Ra > 80. Mean rated service life L80[tq 25 °C] = 50,000 h. Luminaire body of PC. Colour of luminaire body light grey [RAL 7035]. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Dimensions [L x W]: 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature [ta]: 0 °C - +30 °C. Safety class [EN 61140]: I, protection rating [DIN EN 60529]: IP66, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. With 3-pole terminal to 2.5 mm2. With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. In emergency light version with single battery system, nominal operation time 3 hours.
Casing
ballproof: no
form type: linear
Photometric data
sensor: no
dimmable: no
color: grey
color temperature [Kelvin]: 4000
Logistic data
item category: waterproof luminaires
Dimensions & packaging
EAN 4018242408153

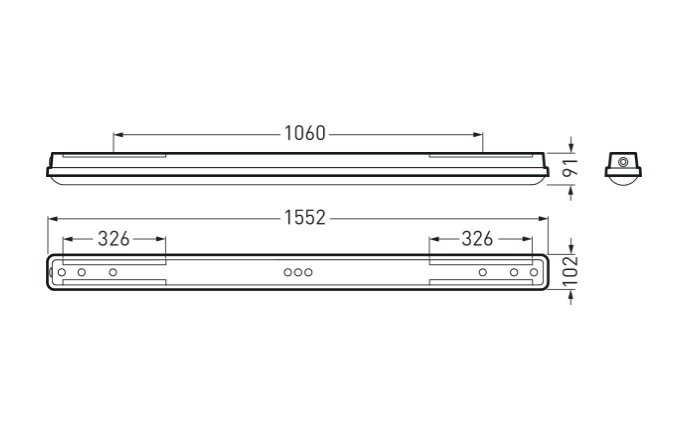

Length 1552 mm
Width 102 mm
Height 91 mm
