Tridonic GmbH & Co KG

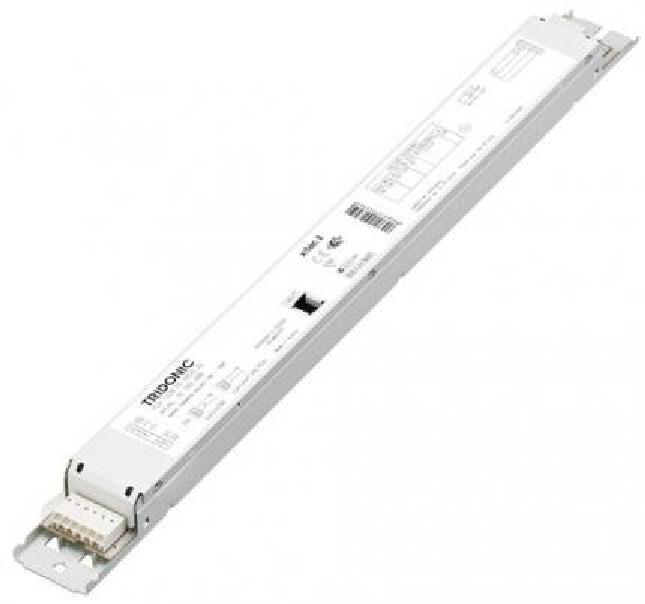

Tridonic PCA 1x21 T5 BASIC lp

Product number: 22185090
Tridonic GmbH & Co KG

Tridonic PCA 1x21 T5 BASIC lp

Product number: 22185090

Immediately available

Automatic shutdown if the lamp is faultyFor emergency lighting systems as per EN 50172Automatic start after replacement of defective lampsNoise-free precise control via DSI signal, switchDIM or corridorFUNCTIONDSIswitchDIM (with memory function)corridorFUNCTION (3 preprogrammed profiles)Optimum fil ... Read more

€32.78


Content: 1 Stück

Product information "Tridonic PCA 1x21 T5 BASIC lp"

Automatic shutdown if the lamp is faulty
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Noise-free precise control via DSI signal, switchDIM or corridorFUNCTION
DSI
switchDIM (with memory function)
corridorFUNCTION (3 preprogrammed profiles)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Processor-controlled ballast with xitec II inside
Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode, 15 %
Highest possible energy class CELMA EEI = A1 BAT
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
5-year guarantee
SMART interface for SMART plug cF – for setting the corridorFUNCTION profiles
SMART interface for SMART sensor with daylight control
Electrical data
number of channels: 1
energy efficiency index: A1BAT
rated voltage: 220-240 V
system power: 21 W
Casing
form type: linear
max housing temperature (tc-max): 80 °C
protection type: IP20
environment temperature from: -25 °C
environment temperature to: 70 °C
Photometric data
dimmable: yes
dimming range to: 100 %
color: white
interface: corridor function
Logistic data
item category: electronic ballasts

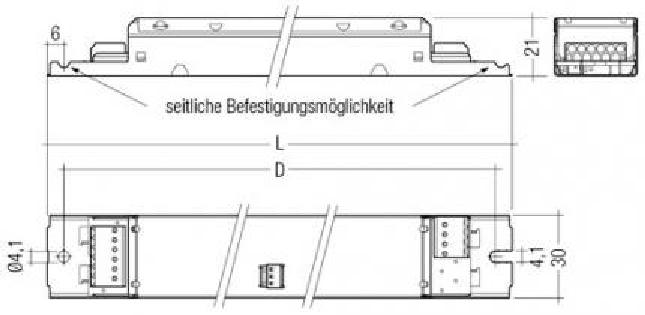

Dimensions & packaging
EAN 9006210354804
Length 360 mm
Width 30 mm
Height 21 mm
Weight 231 g
