Tridonic GmbH & Co KG

Tridonic PCA 1x18/24 TCL BASIC c

Product number: 22185253
Tridonic GmbH & Co KG

Tridonic PCA 1x18/24 TCL BASIC c

Product number: 22185253

Immediately available

That's why you should buy this product now
  • Excellent reviews on Trustpilot
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items
  • Very good price-performance ratio
  • Highest possible quality standards
  • Products from renowned manufacturers


Content: 1 Stück

Product information "Tridonic PCA 1x18/24 TCL BASIC c"

Automatic shutdown if the lamp is faulty
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Noise-free precise control via DSI signal, switchDIM or corridorFUNCTION
switchDIM (with memory function)
corridorFUNCTION (3 preprogrammed profiles)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Processor-controlled ballast with xitec II inside
Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode, 15 %
Highest possible energy class CELMA EEI = A1 BAT
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
5-year guarantee
SMART interface for SMART plug cF – for setting the corridorFUNCTION profiles
SMART interface for SMART sensor with daylight control

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
energy efficiency index: A1BAT
rated voltage: 220-240 V
system power: 18 W
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
environment temperature from: -25 °C
environment temperature to: 65 °C
Photometric data
dimmable: yes
dimming range to: 100 %
color: white
interface: switchDIM
Logistic data
item category: electronic ballasts

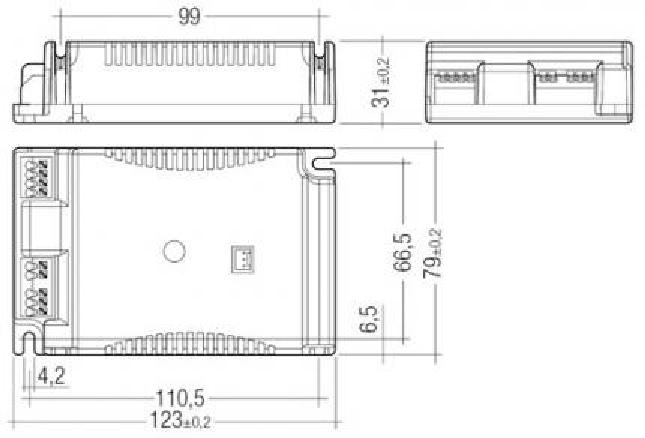

Dimensions & packaging
EAN 9006210417691
Length 123 mm
Width 79 mm
Height 31 mm
Weight 147 g
