Product information "Tridonic LED-Driver LC 35W 700/800/1050mA flexC SR ADV"
LED ECG with 35W and adjustable output current
The constant current LED driver LC 35W 700/800 / 1050mA flexC SR ADV from Tridonic's ADVANCED series can be used for luminaire installation or independent mounting. It is suitable for luminaires with protection class I and II as well as for luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711.
The LED ECG has a maximum output power of 35 watts and an efficiency of up to 87.5%. The output current can be chosen between 700, 800 and 1050 mA. Ideal applications include spotlights and downlights for retail and hospitality applications and panel and area lighting for office and educational applications.

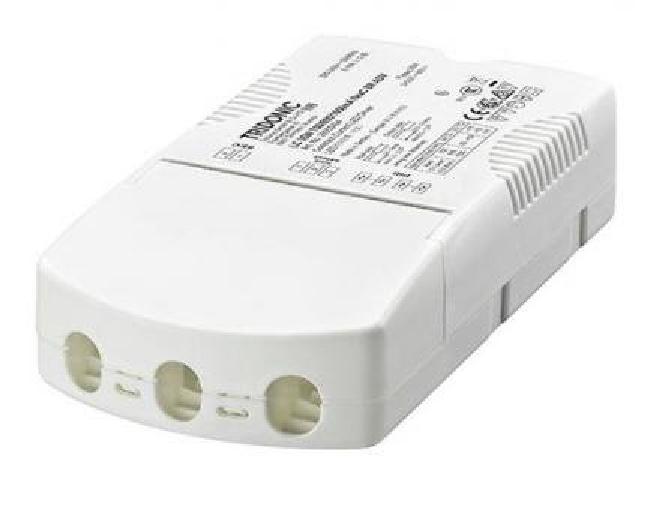

Polycarbonate housing with IP20 protection
The LED driver has 0 ° screw terminals as input terminals and 45 ° plug terminals as output terminals. The IP20-protected housing is made of white polycarbonate.
The LED ECG has a temperature protection according to EN 61347-2-13 C5e. In addition, it is protected against overload, short circuits and no load, as well as against burst voltage 1 kV, surge voltage 1 kV (L to N) and surge voltage 2 kV (L/N to earth).
The nominal life is up to 50,000 hours. Tridonic offers a 5 year warranty on the LED driver.
Downloads & Documents
Datasheet-Tridonic-LED-Driver-LC-35W-700-800-1050mA-flexC-SR-ADV-28002494_1592154478_6
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-35W-700-800-1050mA-flexC-SR-ADV-28002494_1592154478_7
Datenblatt-Tridonic-LED-Treiber-LC-35W-700-800-1050mA-flexC-SR-ADV-28002494_1592154478_8
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 35 W |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

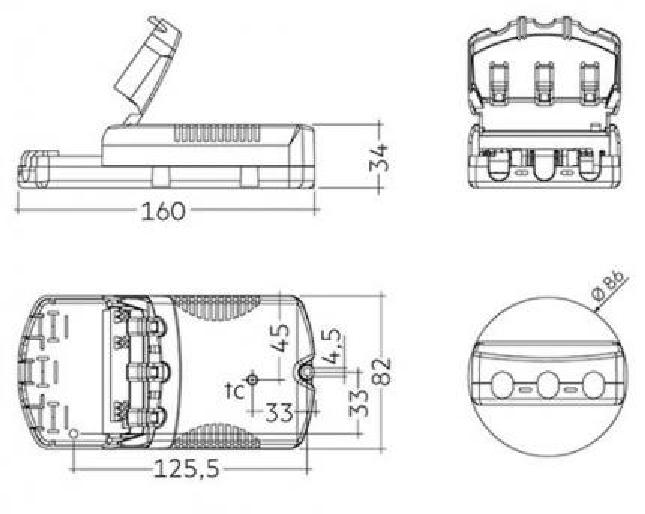

Dimensions & packaging
| EAN | 9006210674735 |
|---|---|
| Length | 126 mm |
| Width | 82 mm |
| Height | 34 mm |
