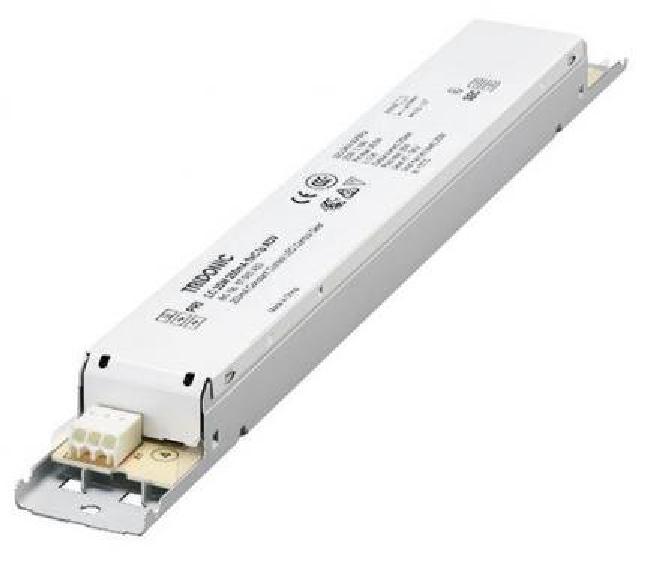

Tridonic LED-Driver LC 35W 350mA fixC lp ADV

Product number: 87500455
Tridonic GmbH & Co KG

Tridonic LED-Driver LC 35W 350mA fixC lp ADV

Product number: 87500455

Immediately available

The fixed output constant current LED driver LED-EVG LC 35W 350mA fixC lp ADV from the ADVCANCED series from Tridonic is suitable for installation in luminaires of protection class I. It has a maximum output power of 35 watts at an output current of 350 mA.The flat low profile housing is made of me ... Read more

€21.05


Content: 1 Stück

Product information "Tridonic LED-Driver LC 35W 350mA fixC lp ADV"

The fixed output constant current LED driver LED-EVG LC 35W 350mA fixC lp ADV from the ADVCANCED series from Tridonic is suitable for installation in luminaires of protection class I. It has a maximum output power of 35 watts at an output current of 350 mA.

The flat low profile housing is made of metal and IP20 protected.

The LED ECG has a temperature protection according to EN 61347-2-13 C5e as well as an Intelligent Temperature Guard. In addition, it is protected against overload, short circuits and no load, as well as against burst voltage 1 kV, surge voltage 1 kV (L to N) and surge voltage 2 kV (L/N to earth).

The nominal life is up to 50,000 hours. Tridonic offers a 5 year warranty on the LED driver.

Electrical data
number of channels: 1
output voltage: 45-100 V
rated voltage: 220-240 V
lifetime: 50000 h
system power: 35 W
Casing
form type: linear
max housing temperature (tc-max): 70 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
Logistic data
item category: LED drivers

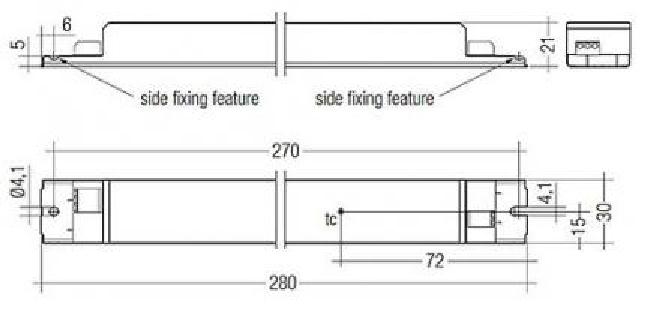

Dimensions & packaging
EAN 9006210569802
Length 270 mm
Width 30 mm
Height 21 mm
Weight 180 g
