Immediately available
€12.01
Prices incl. VAT plus shipping costs net €10.09

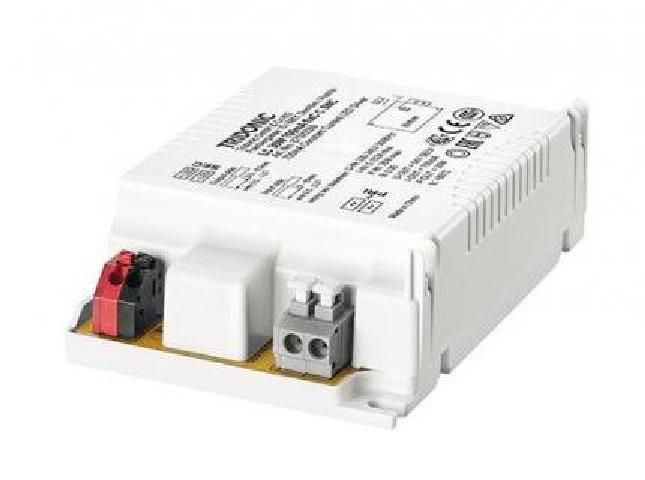

Product information "Tridonic LED-Driver LC 30W 700mA fixC C SNC"
30W ECG for installation / independent mounting
The small, compact fixed output constant current LED driver LC 30W 700mA fixC C SNC from the ESSENCE series by Tridonic is suitable for installation in luminaires of protection class I and II and for independent mounting. It has a nominal output of 30 watts with an output current of 700 mA.
Compact, IP20 protected polycarbonate housing
The IP20-protected housing is made of white polycarbonate. With dimensions of 103 x 67 x 30 mm, the LED ECG has a very small, compact size.
The Tridonic LED driver has an overtemperature protection according to EN 61347-2-13 C5e, an overload protection, a short-circuit protection and a no-load protection. The lifespan is 50,000 hours. Tridonic offers a 5-year warranty.
Downloads & Documents
RCM-Zertifikat-Tridonic-LED-Treiber-LC-30W-700mA-fixC-C-SNC-87500559_1592148290_3
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-30W-700mA-fixC-C-SNC-87500559_1592148290_4
Datasheet-Tridonic-LED-Driver-LC-30W-700mA-fixC-C-SNC-87500559_1592148290_5
Datenblatt-Tridonic-LED-Treiber-LC-30W-700mA-fixC-C-SNC-87500559_1592148290_7
RCM-Certificate-Tridonic-LED-Driver-LC-30W-700mA-fixC-C-SNC-87500559_1592148279_8
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 30-43 V |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 30 W |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

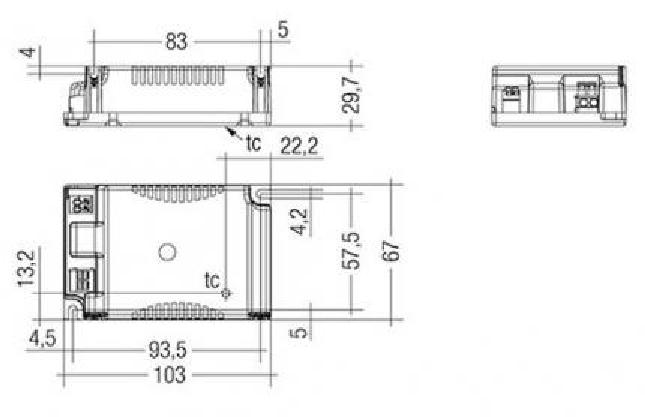

Dimensions & packaging
| EAN | 9006210602707 |
|---|---|
| Length | 103 mm |
| Width | 67 mm |
| Height | 30 mm |
