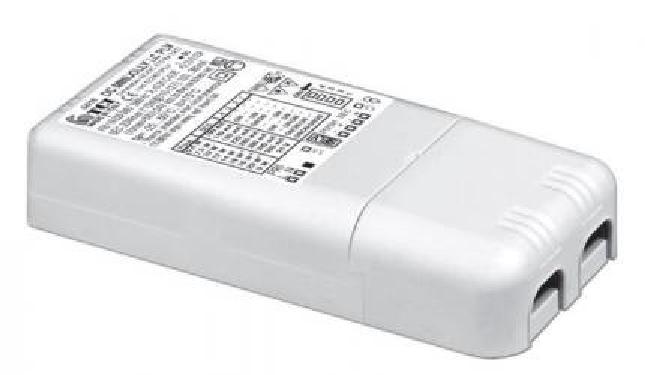

Product information "TCI LED-Treiber DC MINIJOLLY LC PLV"
20W constant current / voltage LED driver
The constant current / voltage LED driver TCI DC MINIJOLLY LC PLV from TCI is suitable for luminaire installation or independent installation indoors. It has a rated power of up to 20 watts. Its protection class II features prevents electric shocks in direct and indirect contact. Additionally, it has IP20 protection.
The input and output terminal blocks are mounted on the same side (wire cross-section up to 1.5 mm2 / AWG15). The clamping screws on primary and secondary circuits are suitable for cables with a diameter of 5-8mm (primary circuit) or 3-5mm (secondary circuit).
Output current adjustable via DIP switches
The TCI DC MINIJOLLY LC PLV is protected against overheating, short circuits, mains voltage spikes and overload. The current regulation is +- 5% including temperature fluctuations. For use in household electrical appliances, the LED driver has double output impedance. The output current can be adjusted via DIP switches.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 2-54 V |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 54 W |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

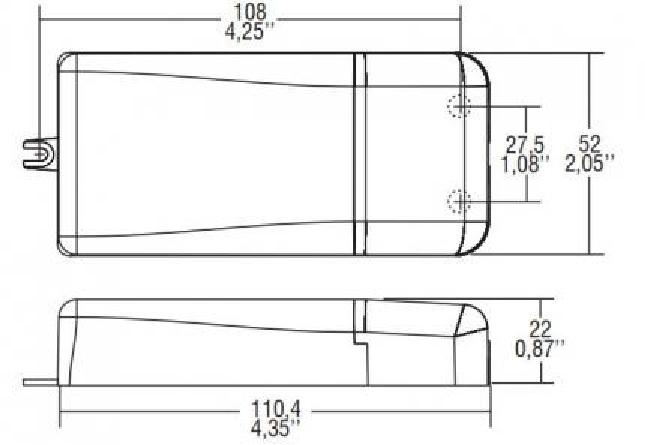

Dimensions & packaging
| EAN | 8010703326774 |
|---|---|
| Length | 52 mm |
| Width | 111 mm |
| Height | 22 mm |
