Shipping in 10 day(s)
€39.71
Prices incl. VAT plus shipping costs net €33.37

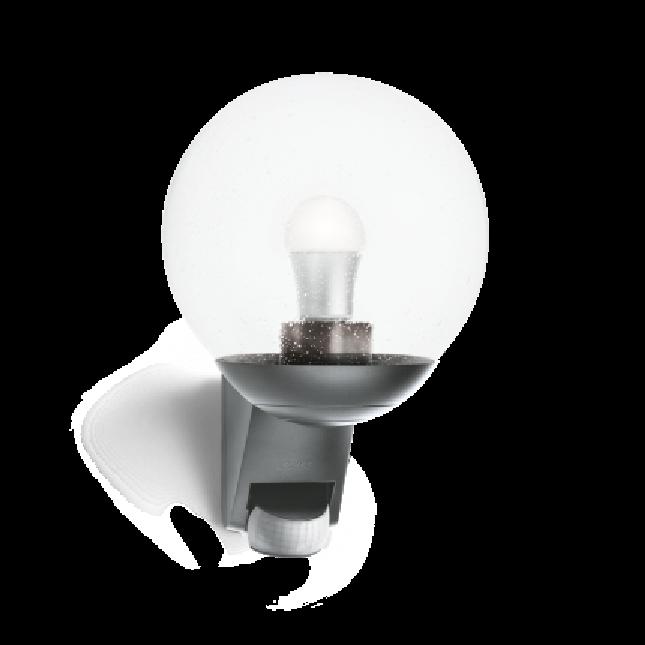

Product information "Steinel LED outdoor luminaire L 585 S ANT"
60W outdoor luminaire with round glass cover

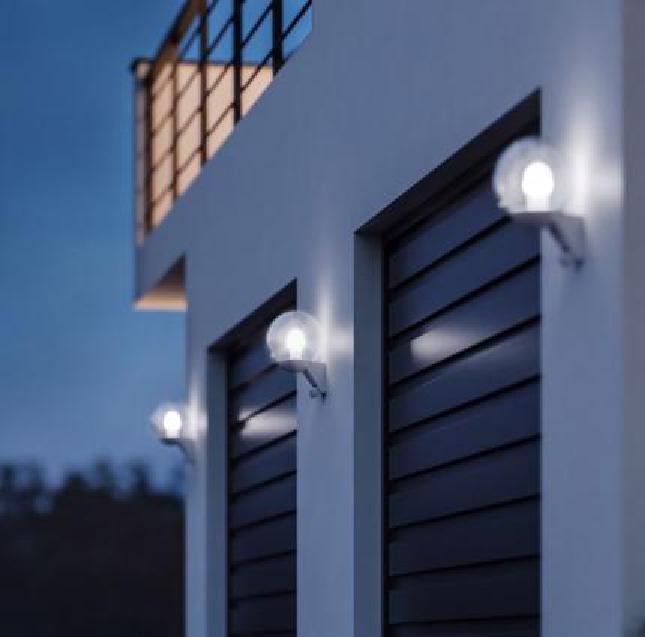

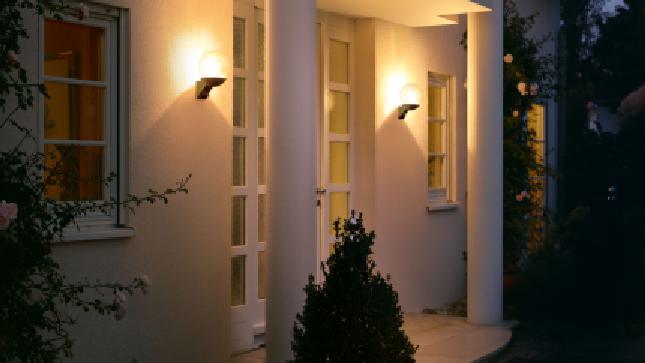

The sensor outdoor luminaire " L585S" from STEINEL with appealing stainless steel bezel is ideal for driveways, house entrances and house fronts. It has a nominal output of 60 watts. Additionally, it has protection class II and IP44 protection.
The outdoor sensor luminaire can be used at ambient temperatures of -20 - 40 ° C. The ideal mounting height is 2m; maximally, the luminaire can be mounted at a height of 3m.
Integrated PIR sensor (180 ° detection angle)
The integrated passive infrared sensor has a detection angle of 180 ° and a detection range of up to 12 m. It can be swiveled vertically by 70 ° so that it can be adapted exactly to the detection area. The time and twilight thresholds are adjustable (8 s - 35 min or 2 - 2000 lx).
Downloads & Documents
Electrical data
| through wiring: | yes |
|---|---|
| rated voltage: | 230-240 V |
| system power: | 60 W |
Casing
| form type: | round |
|---|---|
| protection type: | IP44 |
| material: | plastic, glass transparent |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| sensor: | yes |
|---|---|
| response brightness to: | 2000 Lux |
| response brightness from: | 2 Lux |
| detection angle: | 180 ° |
| color: | anthracite |
| inclusive lamp: | no |
| detection range: | r = 3 m (14 m²) |
| interface: | potis |
| sensor type: | passive infrared |
| time setting to: | 35 min |
| time setting from: | 8 s |

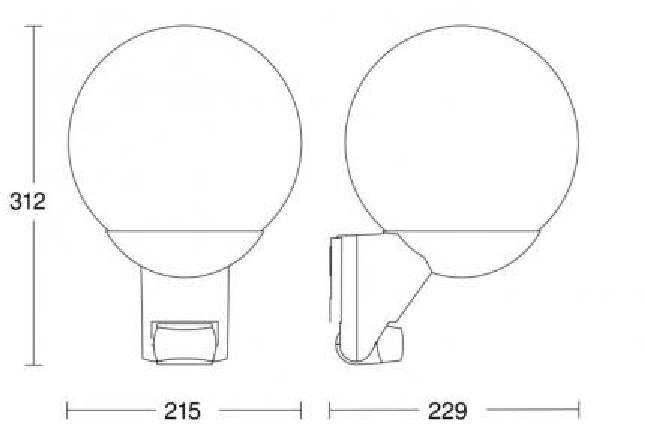

Dimensions & packaging
| EAN | 4007841035723 |
|---|---|
| Length | 312 mm |
| Width | 229 mm |
| Height | 215 mm |
| Weight | 1110 g |
