Steinel LED outdoor luminaire DL VARIO QUATTRO PRO S NW AN
Product number:
4007841057589
Steinel GmbH
Steinel LED outdoor luminaire DL VARIO QUATTRO PRO S NW AN
Product number:
4007841057589
Shipping in 10 day(s)
Detects precisely where you want it to. No more irritating inadvertent triggering. Four precision infrared sensors guarantee 360° all-round detection and can be adjusted in four directions to accommodate any situation. This makes it possible to define the detection zone with absolute precision. Rea
...
Read more
€134.55
Content:
1 Stück
Prices incl. VAT plus shipping costs net €113.07
Product information "Steinel LED outdoor luminaire DL VARIO QUATTRO PRO S NW AN"

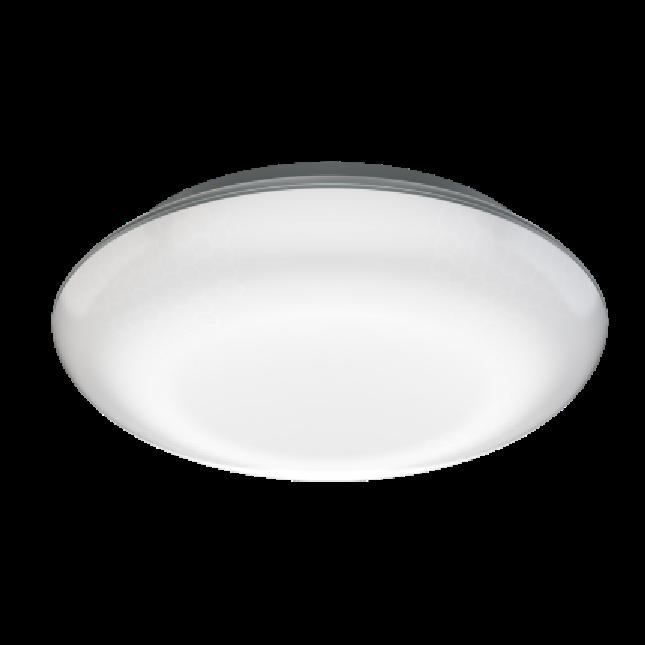

Detects precisely where you want it to. No more irritating inadvertent triggering. Four precision infrared sensors guarantee 360° all-round detection and can be adjusted in four directions to accommodate any situation. This makes it possible to define the detection zone with absolute precision. Reach: 2 to 8 m. Clean look without sensor elements to spoil the design because the sensor lenses are integrated into the luminaire diffuser where they are virtually hidden from view – a patented world first! 1430 lm at 14 W. In neutral white or warm white.
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 50000 h |
| system power: | 14 W |
Casing
| form type: | round |
|---|---|
| protection type: | IP54 |
| material: | plastic, plastic structured |
| mounting: | ceiling mounting |
| impact resist: | IK07 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 35 °C |
Photometric data
| sensor: | yes |
|---|---|
| response brightness to: | 1000 Lux |
| response brightness from: | 2 Lux |
| detection angle: | 360 ° |
| color: | silver |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 102 lm/W |
| inclusive lamp: | yes |
| detection range: | 6 x 6 m (36 m²) |
| interface: | potis |
| sensor type: | passive infrared |
| time setting to: | 30 min |
| time setting from: | 5 s |
| lum flux: | 1430 lm |
Dimensions & packaging
| EAN | 4007841057589 |
|---|---|
| Length | 310 mm |
| Width | 310 mm |
| Height | 69 mm |
| Weight | 890 g |
