Philips FL-ECG HF-S 3/414 TL5 II 220-240V 50/60Hz

Product number: 913713033066
Philips Lighting GmbH

Philips FL-ECG HF-S 3/414 TL5 II 220-240V 50/60Hz

Product number: 913713033066

Immediately available

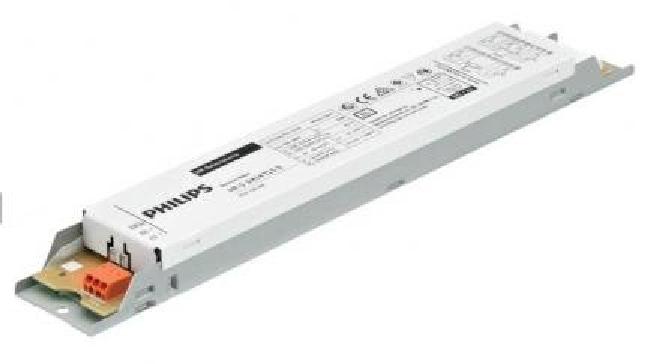

The electronic ballast HF-S 3/414 TL5 II 220-240V 50 / 60Hz from the HF-Selectalume II series from Philips is suitable for T5 lamps of protection class I and after tests also class II in an elongated design. It was particularly designed for indoor lighting such as spotlights, downlights and built-i ... Read more

€10.97


Product information "Philips FL-ECG HF-S 3/414 TL5 II 220-240V 50/60Hz"

The electronic ballast HF-S 3/414 TL5 II 220-240V 50 / 60Hz from the HF-Selectalume II series from Philips is suitable for T5 lamps of protection class I and after tests also class II in an elongated design. It was particularly designed for indoor lighting such as spotlights, downlights and built-in lights that are used in many offices, shops, industrial facilities, hotels, restaurants and other applications which are only occasionally switched on and off.

The ECG performs a quick warm start with filament pre-heating in under 1.2 seconds. After voltage break or lamp change, an automatic restart is implemented, ensuring easy operation and a problem-free lamp change. An active power factor correcor provides a constant light emission even in the case of mains voltage fluctuations. The direct current emergency operation complies with the requirements of the luminaire standards IEC / EN 60598-2-22.

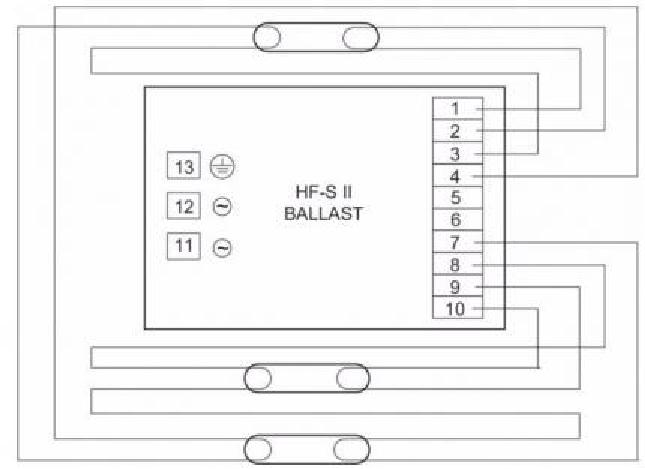

The integrated Wago-744 connector is suitable for horizontally manual wiring as well as for plug-in connection per robot after simple cable release.

The Philips HF-Spectalume II is CE-compliant and has the Kema approval. The average lifetime at an ambient temperature of 50 ° C ist more than 50,000 hours.

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Conformity: CE/ENEC/CCC/PSB/TISI/SIRIM/CB/VDE/EMV

Power input: 14#14W

Technical lighting data

Wattage: T5#3#0#14#0#0#0#0#

Dimmable: no

Housing Color: white

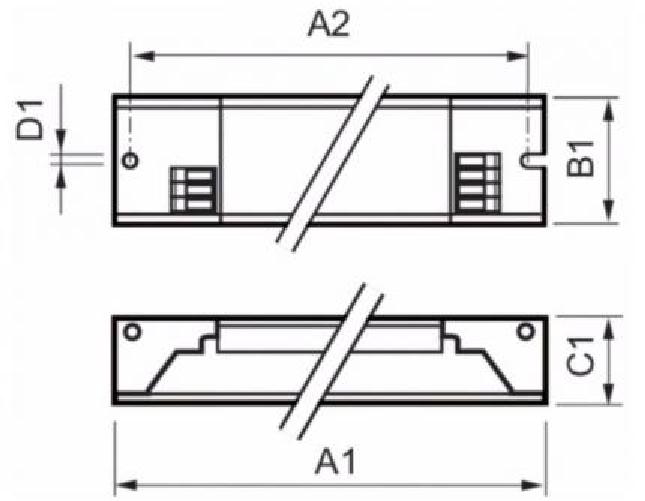

Dimensions

Width [mm]: 39mm

Height [mm]: 22mm

Length [mm]: 280mm

Hole dimension [mm]: 265.000mm

Mounting method: Recessed

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -20...+55°C

Item number: 913713033066
