Immediately available
Automatic restart after relamping Lamp start with optimum filament preheating For use in emergency lighting systems to EN 50172 / DIN VDE 0108-100 Perfect lamp starting for applications with motion Supply voltage: 220 ... 240 V Power supply: 198 ... 264 V Frequency: 0 Hz | 50 Hz | 60 Hz Lamp start
...
Read more
€13.65
Content:
1 Stück
Prices incl. VAT plus shipping costs net €11.47

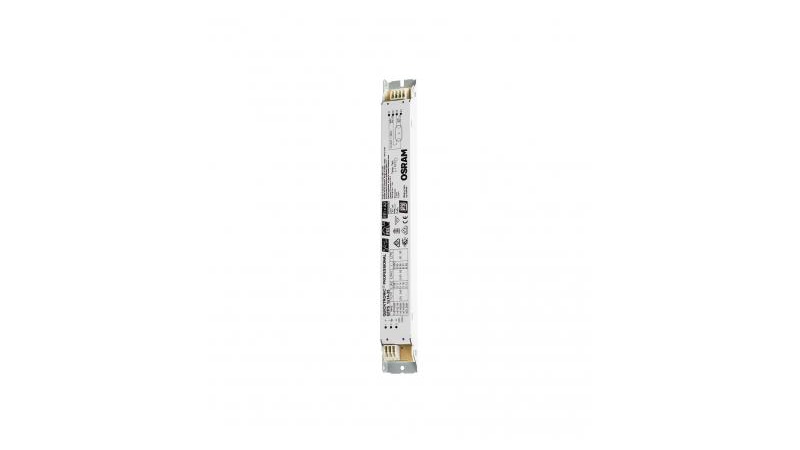

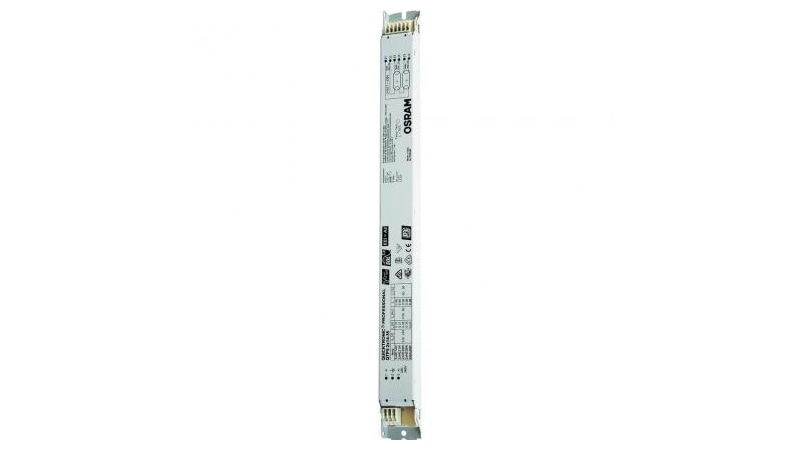

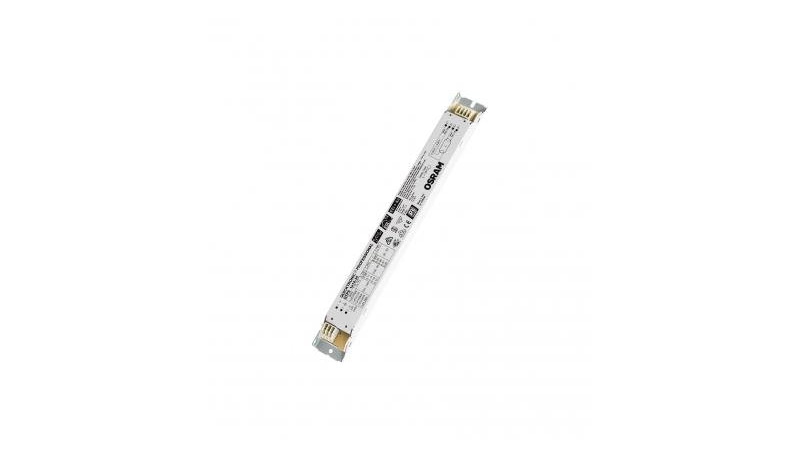

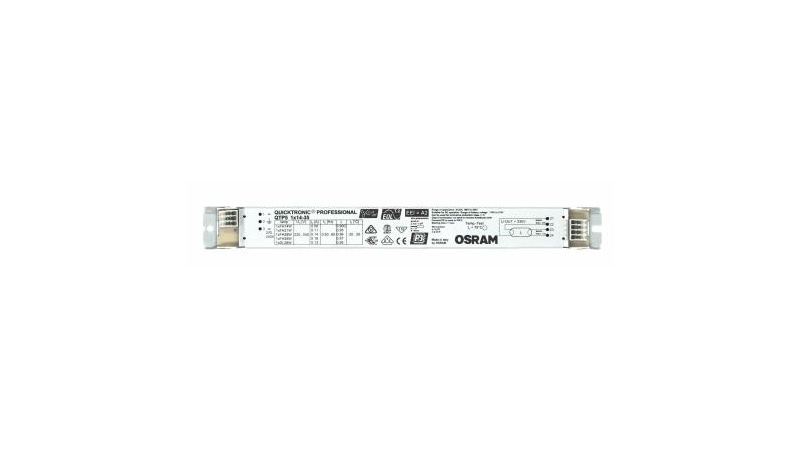

Product information "Osram QTP5 1X14...35"
Automatic restart after relamping
Lamp start with optimum filament preheating
For use in emergency lighting systems to EN 50172 / DIN VDE 0108-100
Perfect lamp starting for applications with motion
Supply voltage: 220 ... 240 V
Power supply: 198 ... 264 V
Frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Life: up to 100,000 hours (at Tc = 65 ° C, max 10% failure rate.)
Energy Efficiency Index EEI: A2 BAT
Automatic safety shutdown of lamp defect or at end of life (EOL T.2)
Safety: to EN 61347-2-3
Lamp start with optimum filament preheating
For use in emergency lighting systems to EN 50172 / DIN VDE 0108-100
Perfect lamp starting for applications with motion
Supply voltage: 220 ... 240 V
Power supply: 198 ... 264 V
Frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Life: up to 100,000 hours (at Tc = 65 ° C, max 10% failure rate.)
Energy Efficiency Index EEI: A2 BAT
Automatic safety shutdown of lamp defect or at end of life (EOL T.2)
Safety: to EN 61347-2-3
Downloads & Documents
Electrical data
| operating voltage: | 220-240 V |
|---|---|
| energy efficiency index: | A2 BAT |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
| system power: | 39 W |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | metal |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| start time: | 1 s |
Logistic data
| item category: | electronic ballasts |
|---|---|
| country of origin: | China |

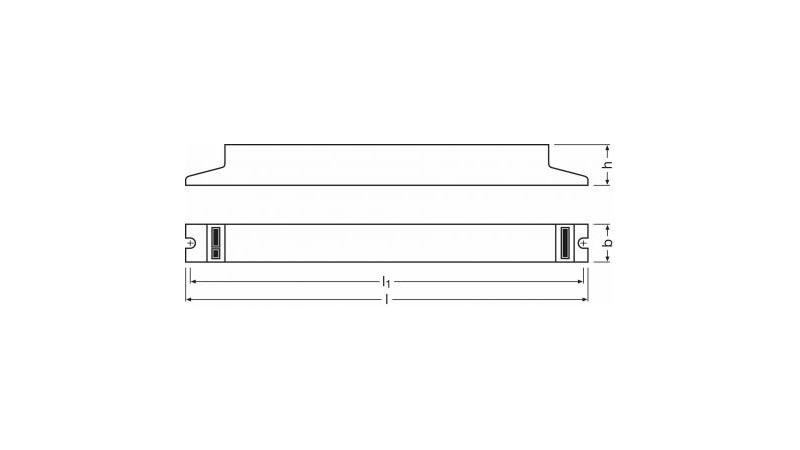

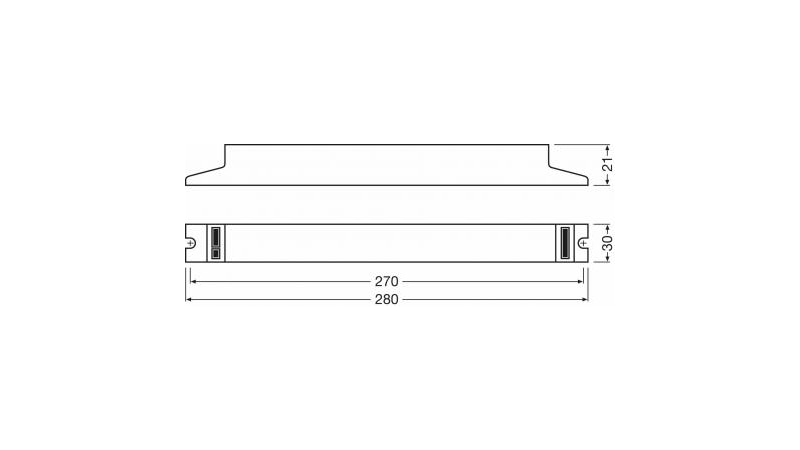

Dimensions & packaging
| EAN | 4008321329035 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 171 g |
