OSRAM GmbH

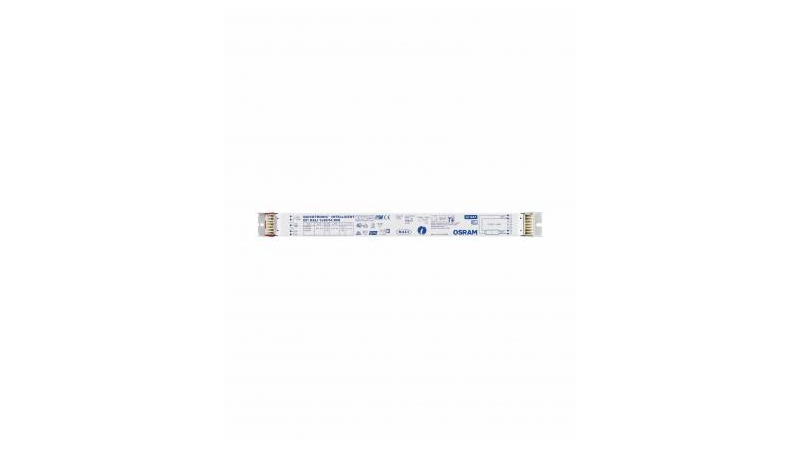

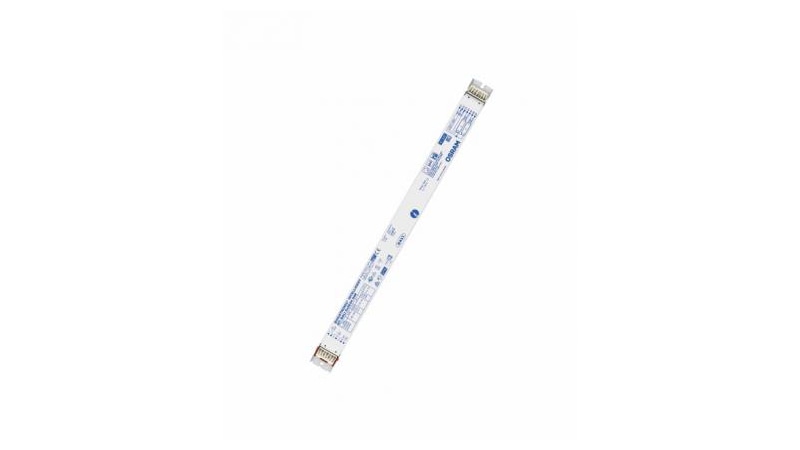

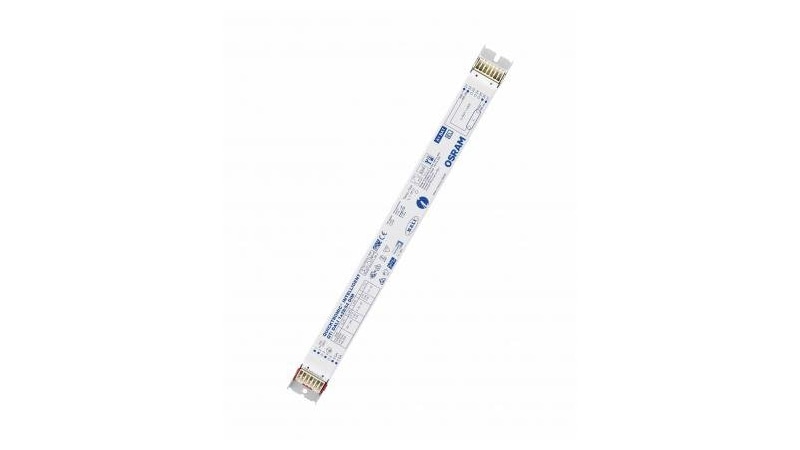

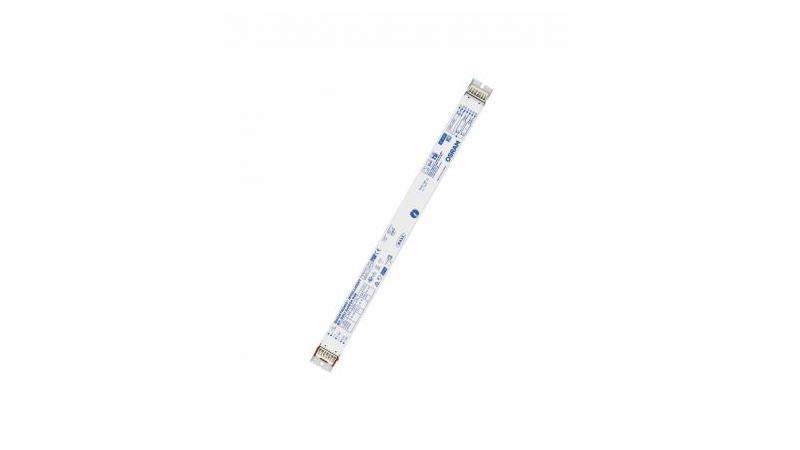

Osram QTi DALI 1x35/49/80 DIM

Product number: 4050300870342
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
Osram QTi DALI 1x35/49/80 DIM
OSRAM GmbH

Osram QTi DALI 1x35/49/80 DIM

Product number: 4050300870342

Shipping in 14 day(s)

Attribute Corridor function for direct connection of the ECG to commercial motion Corridor function with preset light program TouchDIM function for free parameterization of the light value and the switch-on Fit for SMART gRID for feedback from recorded network performance and lamp hours ... Read more

€34.40


Content: 1 Stück

Prices incl. VAT plus shipping costs net €28.91

Product information "Osram QTi DALI 1x35/49/80 DIM"

Attribute
  • Corridor function for direct connection of the ECG to commercial motion
  • Corridor function with preset light program
  • TouchDIM function for free parameterization of the light value and the switch-on
  • Fit for SMART gRID for feedback from recorded network performance and lamp hours
  • Fit for Emergency function for automatic detection of emergency lighting by EVG
  • Very low standby power consumption: & lt; 0.2 W (A1 BAT)
  • life: up to 100,000 hours (at T c = 65 ° C, max 10% failure rate.)
  • Very high switching capability: up to 300,000
  • dimming range: 1 ... 100% (3 ... 100% with compact fluorescent lamp)
  • POWER2LAMP function for optimal adaptation of the TOE performance the lamp during lamp life

advantages
  • system + guarantee available
  • Simple luminaire integration thanks to the same device size as DALI GI EVG
  • TouchDIM function for simple and inexpensive dimming more ballasts
  • Same luminous flux with direct and alternating voltage
  • dimming of amalgam lamps without flickering or lifetime reduction
  • Automatic restart after lamp replacement
  • No new approvals necessary
DALI product features
  • control via DALI interface
  • compliance with the DALI standard to IEC 60929 and IEC 62386
  • overvoltage protection control input and polarity protection (OSRAM ECG)
touch DIM and touch DIM sensor function
  • Manual dimming without control unit with standard installation buttons
  • Includes memory function (double-click) and soft start

    • application areas
    • gem for use in emergency lighting systems. EN 50172 / DIN VDE 0108-100
    • Built-in emergency lighting systems in accordance with IEC 61347-2-3, Appendix J
    • Industry
    • plan offices, corridors and warehouses
    • Public buildings
    • sports halls and factories
    • rooflights
    • Store lighting

    References / References
    More information on the system guarantee and the entire warranty conditions can be found online at www .osram.de /system warranty code


Electrical data
energy efficiency index: A1BAT
rated voltage: 220-240 V
lifetime: 100000 h
Casing
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
material: metal
mounting: Installation
protection class: I
environment temperature from: 10 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: white
interface: TouchDIM
start time: 0.6 s
Logistic data
item category: electronic ballasts
country of origin: Bulgaria

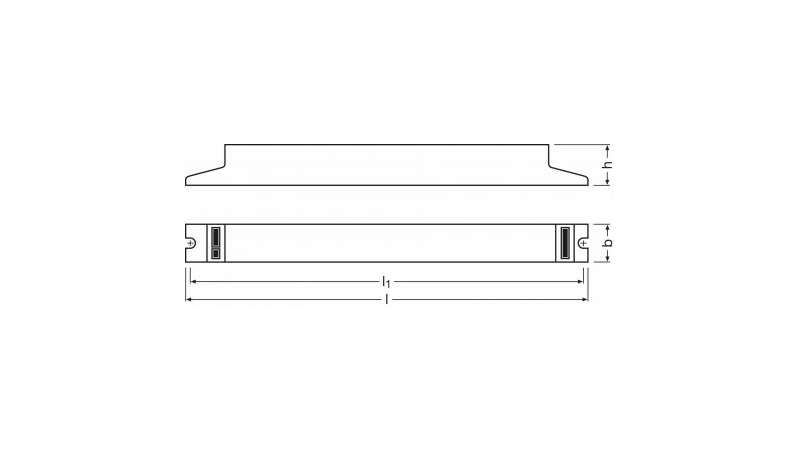

Dimensions & packaging
EAN 4050300870342
Length 360 mm
Width 30 mm
Height 21 mm
Weight 278 g
