OSRAM GmbH

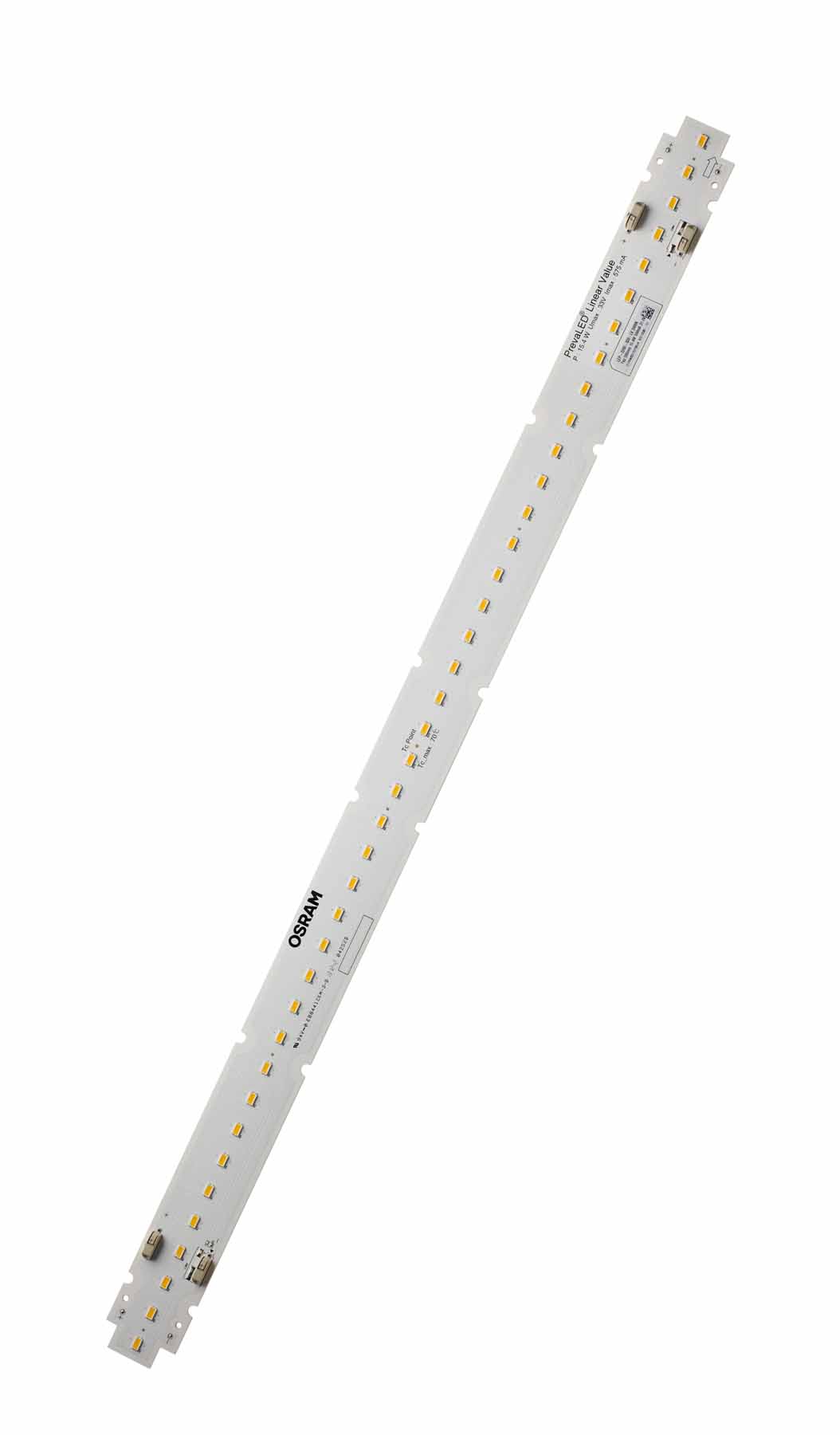

Osram PLVZ1-LIN 2200-840-560

Product number: 4052899914933
OSRAM GmbH

Osram PLVZ1-LIN 2200-840-560

Product number: 4052899914933

Immediately available

Attribute Plug-in terminals for connection 0,5 mm² wire VDE tested safety Luminous flux: 2200 lumens color temperature: 4000K High initial color consistency: 4 SDCM (threshold unit) geometry according to Zhaga specification with CE marking and UL listed High module luminous effic ... Read more

12,64 €

Product information "Osram PLVZ1-LIN 2200-840-560"
Attribute
  • Plug-in terminals for connection 0,5 mm² wire
  • VDE tested safety
  • Luminous flux: 2200 lumens
  • color temperature: 4000K
  • High initial color consistency: 4 SDCM (threshold unit)
  • geometry according to Zhaga specification
  • with CE marking and UL listed
  • High module luminous efficiency: up to 130 lm / W
  • life (L70 / B50): 50,000 h
    advantages
    • SELV module for simple lighting design
    • modules for seamless continuous row plugged together
    • Lean module (similar to a T8 fluorescent tube )
    • Quick and easy installation
    • energy saving compared with T5 or T8 fluorescent lamps
    • easy system design
    • self-cooling, no additional heatsink required

Technical Data

Electrical Data

Rated Voltage: 30,8V

EEI (Energy Efficiency Index): A+

Service life: 50000h

Technical lighting data

Colorcode: 840

Radiation angle: 115°

Luminous flux: 2154lm

Colour rendering index (CRI): 80

Wattage: ##0#15.3#0#0#0#0#

With light source: no

Dimmable: no

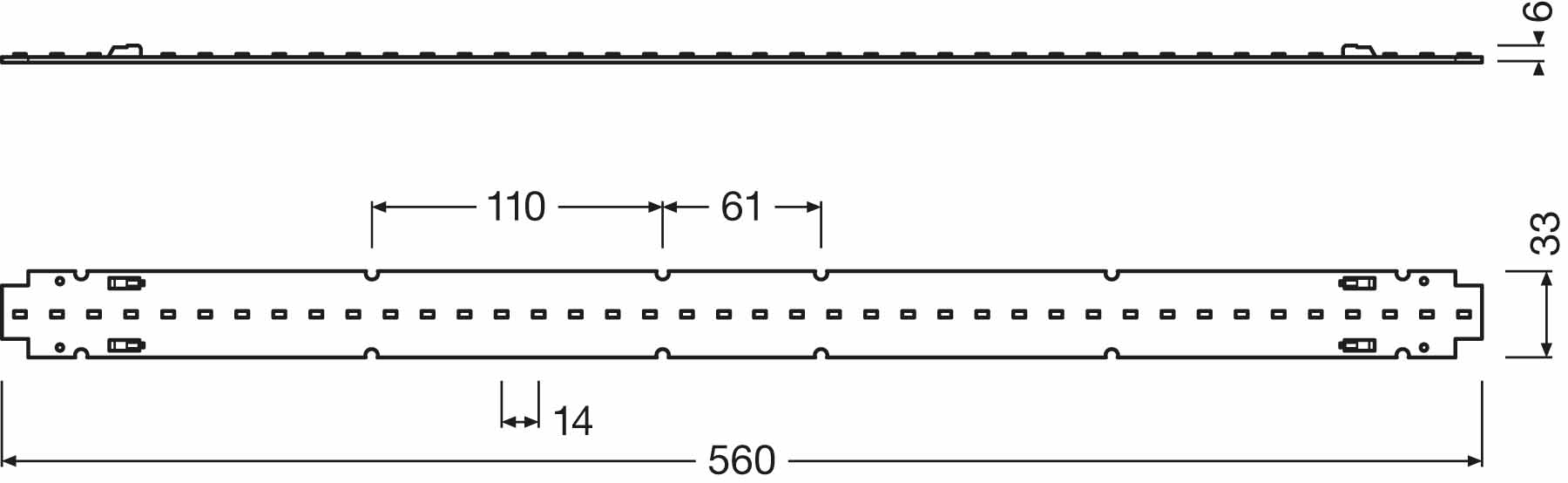

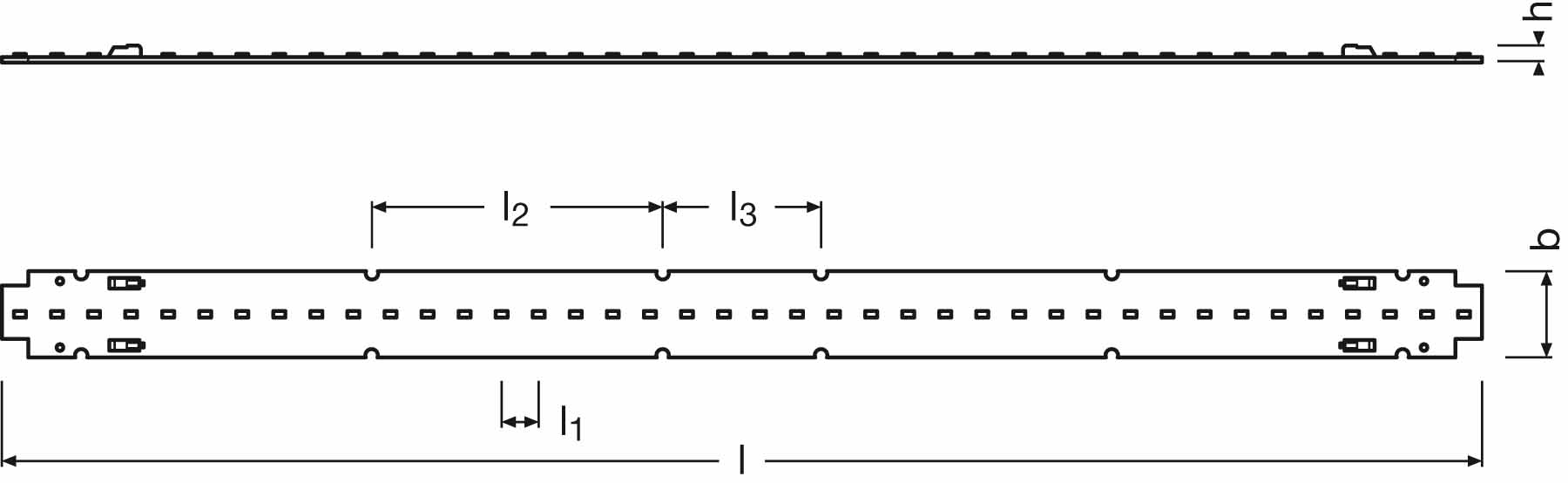

Dimensions

Width [mm]: 28mm

Height [mm]: 6mm

Length [mm]: 560mm

Housing

Max. housing temperature (tc,max): 70°C

Ambient temperature (ta): -20...+45°C

Item number: 4052899914933
