OSRAM GmbH

Osram Light managemant system OSRAM DALI Highbay Adapter

Product number: 4008321774132
OSRAM GmbH

Osram Light managemant system OSRAM DALI Highbay Adapter

Product number: 4008321774132

Immediately available

The DALI HIGHBAY ADAPTER is a DALI input device for ceiling mounting and mounting on luminaire modules. The adapter is intended for connecting a light and motion sensor with a higher-level DALI controller. An extended clamping range allows the power line to be looped through. In addition, daylight- ... Read more

€104.10


Content: 1 Stück

Product information "Osram Light managemant system OSRAM DALI Highbay Adapter"

The DALI HIGHBAY ADAPTER is a DALI input device for ceiling mounting and mounting on luminaire modules. The adapter is intended for connecting a light and motion sensor with a higher-level DALI controller.
An extended clamping range allows the power line to be looped through. In addition, daylight-dependent control is possible, which automatically switches off if sufficient daylight is available.
The light control can be used for installation heights of up to 13m.
This DALI-based light management system can be integrated into building management systems and can be used in industry, production, assembly, manufacturing, sports halls, logistics centers, warehouses and corridors.
Electrical data
rated voltage: 20 V
conformity: CE
Casing
ballproof: no
fire protection: no
form type: round
protection type: IP20
material: plastic
mounting: surface mounting, ceiling mounting
protection class: II
environment temperature to: 50 °C
Photometric data
sensor: no
application: indoor
dimmable: no
color: white
inclusive lamp: no
sensor type: no
solar panel: no
Logistic data
country of origin: Hungary

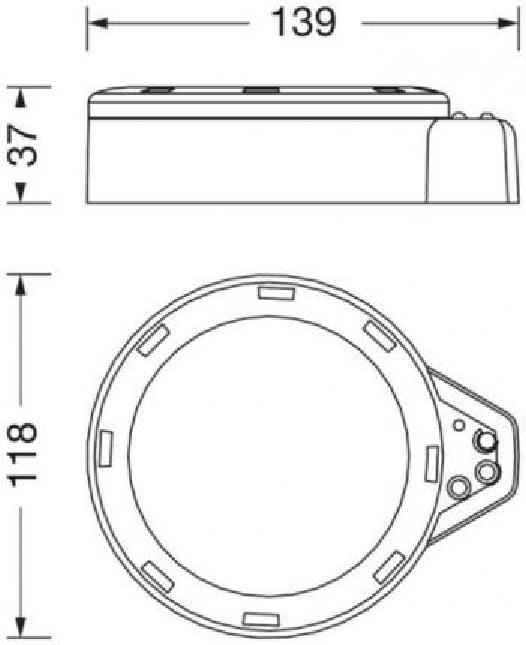

Dimensions & packaging
EAN 4008321774132
Length 139 mm
Width 118 mm
Height 37 mm
Weight 74 g
