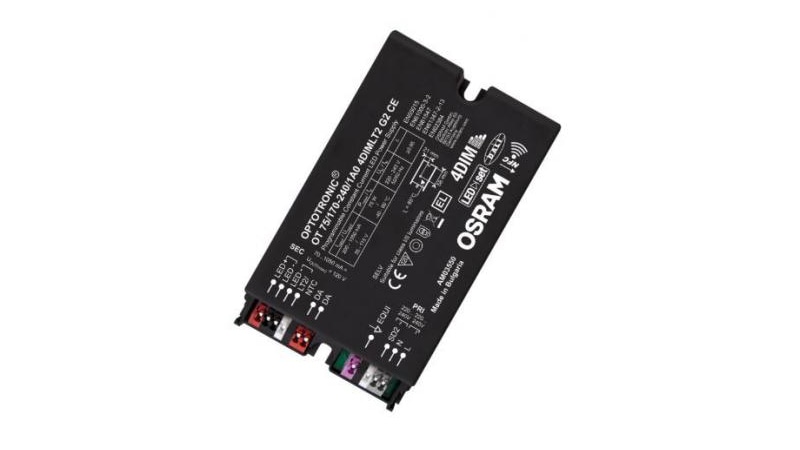

Osram LED-Driver OT 75/170-240/1A0 4DIMLT2 G2 CE

Product number: 4052899981942
OSRAM GmbH

Osram LED-Driver OT 75/170-240/1A0 4DIMLT2 G2 CE

Product number: 4052899981942

Immediately available

That's why you should buy this product now
  • Excellent reviews on Trustpilot
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items
  • Very good price-performance ratio
  • Highest possible quality standards
  • Products from renowned manufacturers

€86.30


Content: 1 Stück

Product information "Osram LED-Driver OT 75/170-240/1A0 4DIMLT2 G2 CE"

Outdoor LED ECG with 4DIM functionality

The constant current driver for LED module OT 75/170-240/1A0 4DIMLT2 G2 CE from the Optotronic outdoor series from Osram is suitable for luminaires of protection class I and II. The ideal application areas are outdoors - for example for example in luminaires with IP> 54 in street and city lighting or industrial lighting. Its nominal output is 75 watts. The output current can be adjusted between 70 and 1050 mA via LEDset2.

The 4DIM functionality of the electronic ballast allows dimming by different means : via StepDIM, isolated DALI interface for bidirectional telemanagement systems, MainsDIM for dimming by means of reduction of the mains voltage amplitude and AstroDIM for autonomous dimming with five different levels.

Simple wireless luminaire programming via NFC

Thanks to its broad operating temperature range of -40 to + 55 °C, the Osram LED ECG can be used particularly flexibly. Luminaire programming is simple, fast and wireless via NFC. Additionally, the LED driver has a high surge protection up to 6kV and a protection by double isolation between mains input and LED output.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Electrical data
rated voltage: 220-240 V
lifetime: 50000 h
system power: 75 W
Casing
max housing temperature (tc-max): 80 °C
protection type: IP20
material: plastic
mounting: Installation
protection class: I/II
environment temperature from: -40 °C
environment temperature to: 55 °C
Photometric data
dimmable: yes
dimming range to: 100 %
color: black
interface: stepDIM
Logistic data
item category: LED drivers
country of origin: Bulgaria

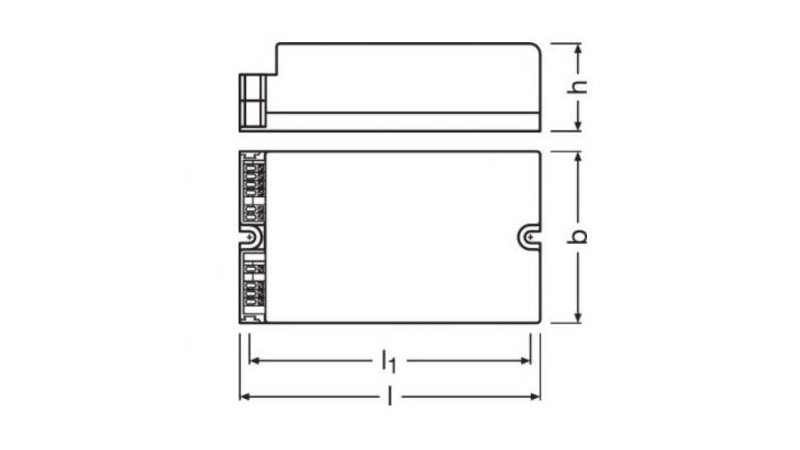

Dimensions & packaging
EAN 4052899981942
Length 133 mm
Width 77 mm
Height 40 mm
Weight 300 g
