Product information "Niko IR-motion detector Infra Garde 200 Max"
The Niko Infragarde 200 Max is a small compact passive infrared motion detector for outdoor use. It can be quickly and easily surface-mounted flush-mounted. Thanks to its rotatable and tiltable sensor head, it is very flexible.

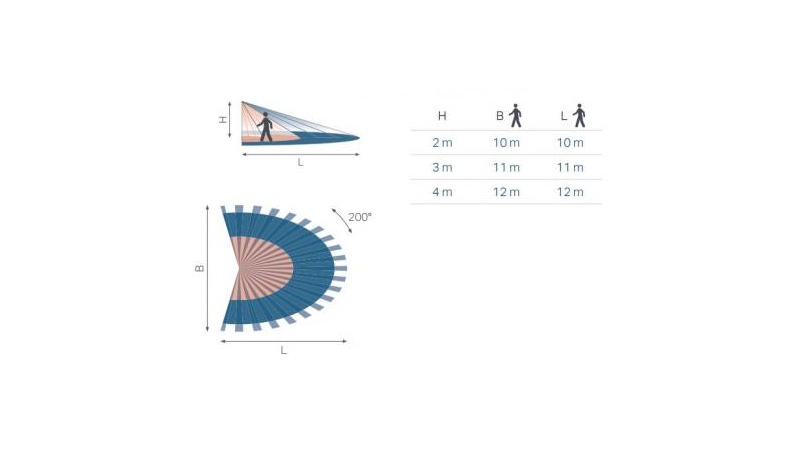

The response brightness of the motion detector is 5 to 1000 lx. It has a detection angle of 200 ° and a detection range of 11 m. The timesetting is 1 s - 30 s - 15 m.
The black housing is equipped with the IP44 protection.
Downloads & Documents
Electrical data
| rated voltage: | 230 V |
|---|---|
| switching power inductive: | 250 W |
| switching power capacitive: | 100 W |
| switching power ohmic: | 1000 W |
Casing
| protection type: | IP44 |
|---|---|
| mounting: | surface mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 55 °C |
Photometric data
| sensor: | yes |
|---|---|
| detection angle: | 200 ° |
| color: | black |
| sensor type: | passive infrared |
Logistic data
| item category: | sensors |
|---|
Dimensions & packaging
| EAN | 3505100031659 |
|---|---|

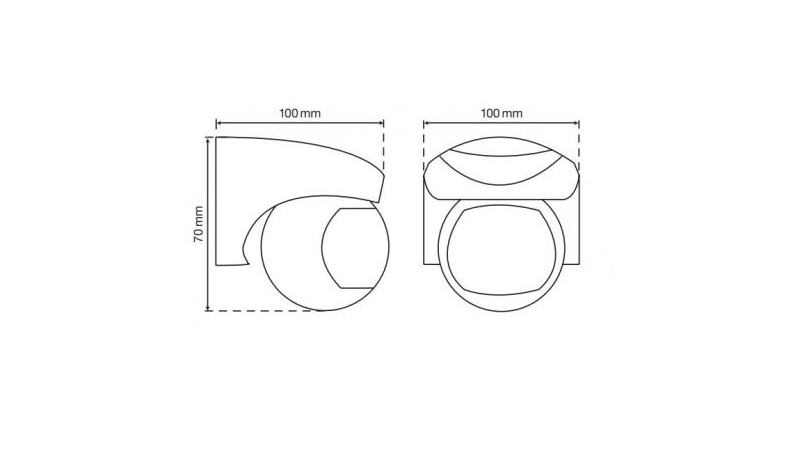

| Length | 100 mm |
| Width | 100 mm |
| Height | 70 mm |
| Weight | 200 g |
