Lunatone Light Management Relais DALI RM16-DE

Product number: 86458629-DE
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management Relais DALI RM16-DE

Product number: 86458629-DE

Immediately available

The Light Management Relais DALI RM16-DE from Lunatone is a compact relay module for controlling 230V AC loads which is suitable for ceiling installation. The module allows to integrate ballast without a DALI input into a DALI lighting control system. The loads can the be switched on and off by DAL ... Read more

€86.93


Content: 1 Stück

Product information "Lunatone Light Management Relais DALI RM16-DE"

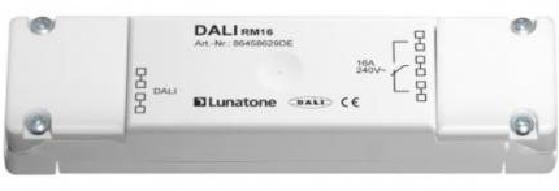

The Light Management Relais DALI RM16-DE from Lunatone is a compact relay module for controlling 230V AC loads which is suitable for ceiling installation. The module allows to integrate ballast without a DALI input into a DALI lighting control system. The loads can the be switched on and off by DALI commands.

The module is especially suitable for high inrush currents up to 160A. In case of a failure of the DALI line, the DALI RM16-DE maintains the relay switching state thanks to its "Power Up" function. The maximum nominal load is 2000 VA.

The relay module can be configured via the DALI-Cockpit-Tool from Lunatone which you can download for free.

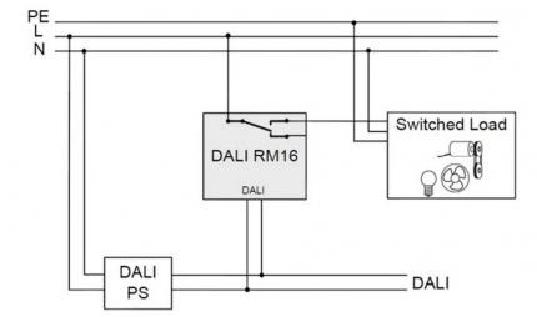

The DALI RM16-DE is supplied by the DALI signal line so that no additional supply is required. It acts like any conventional DALI ballast and can be addressed and configured accordingly.

The housing of the Lunatone light management relay DALI RM16-DE is equipped with the IP20 protection.

Electrical data
rated voltage: DALI bus V
conformity: CE
switching power inductive: 2000 W
switching power capacitive: 2000 W
switching power ohmic: 2000 W
Casing
protection type: IP20
mounting: with strain relief
environment temperature to: 45 °C
Photometric data
color: white
Logistic data
item category: light management

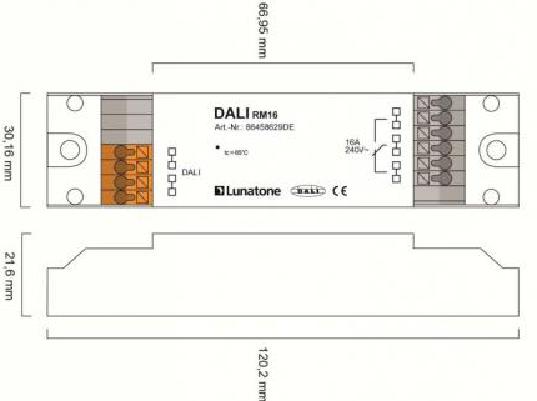

Dimensions & packaging
EAN 9010342011184
Length 120 mm
Width 30 mm
Height 22 mm
