Lunatone Light Management LED-Dimmer DALI 1Ch CC 2000mA 89453844-2000

Product number: 89453844-2000
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management LED-Dimmer DALI 1Ch CC 2000mA 89453844-2000

Product number: 89453844-2000

Shipping in 14 day(s)

The Lunatone 1-channel constant current DALI LED Dimmer DALI 1Ch CC 2000mA with max. input currents of 2000mA is suitable for the control of constant current LED modules.The SwitchDim2 mode allows to control the light level and colour and to switch scenes via 2 switch inputs without DALI. Up from F ... Read more

€61.05


Content: 1 Stück

Product information "Lunatone Light Management LED-Dimmer DALI 1Ch CC 2000mA 89453844-2000"

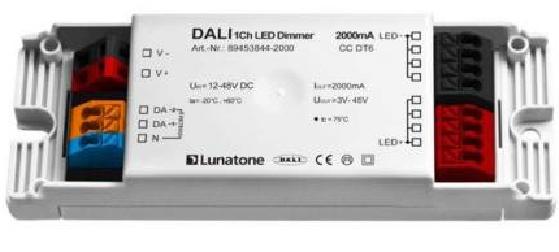

The Lunatone 1-channel constant current DALI LED Dimmer DALI 1Ch CC 2000mA with max. input currents of 2000mA is suitable for the control of constant current LED modules.

The SwitchDim2 mode allows to control the light level and colour and to switch scenes via 2 switch inputs without DALI. Up from FW 4.0, it is also possible to use a corridor function for direct control of the device with a motion detector.

The dimming range is between 0.1 and 100%. The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz).  The supply voltage is 12V to 48V DC ; the output voltage is up to 45V DC.

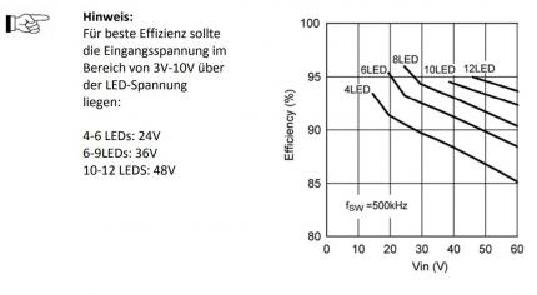

A short circuit protection is integrated. Additionally, the Lunatone 1-channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.

Configuration takes place via the PC software DALI-Cockpit and the DALI USB software.

The dimmer is suitable for ceiling-void mounting.

Electrical data
rated voltage: 12-48 V
conformity: CE
lifetime: 100000 h
Casing
ballproof: no
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: with strain relief
environment temperature from: -20 °C
environment temperature to: 60 °C
Photometric data
application: indoor
color: white
interface: DALI
Logistic data
item category: light management

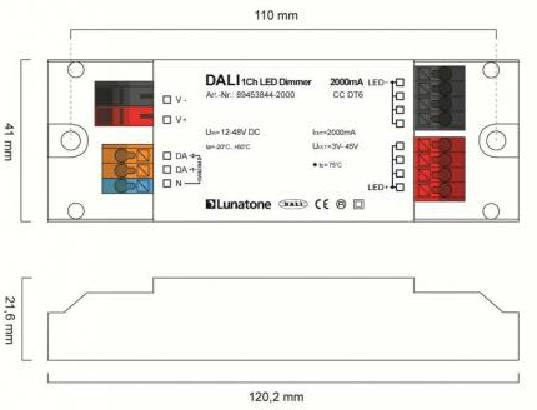

Dimensions & packaging
Length 120 mm
Width 41 mm
Height 22 mm
