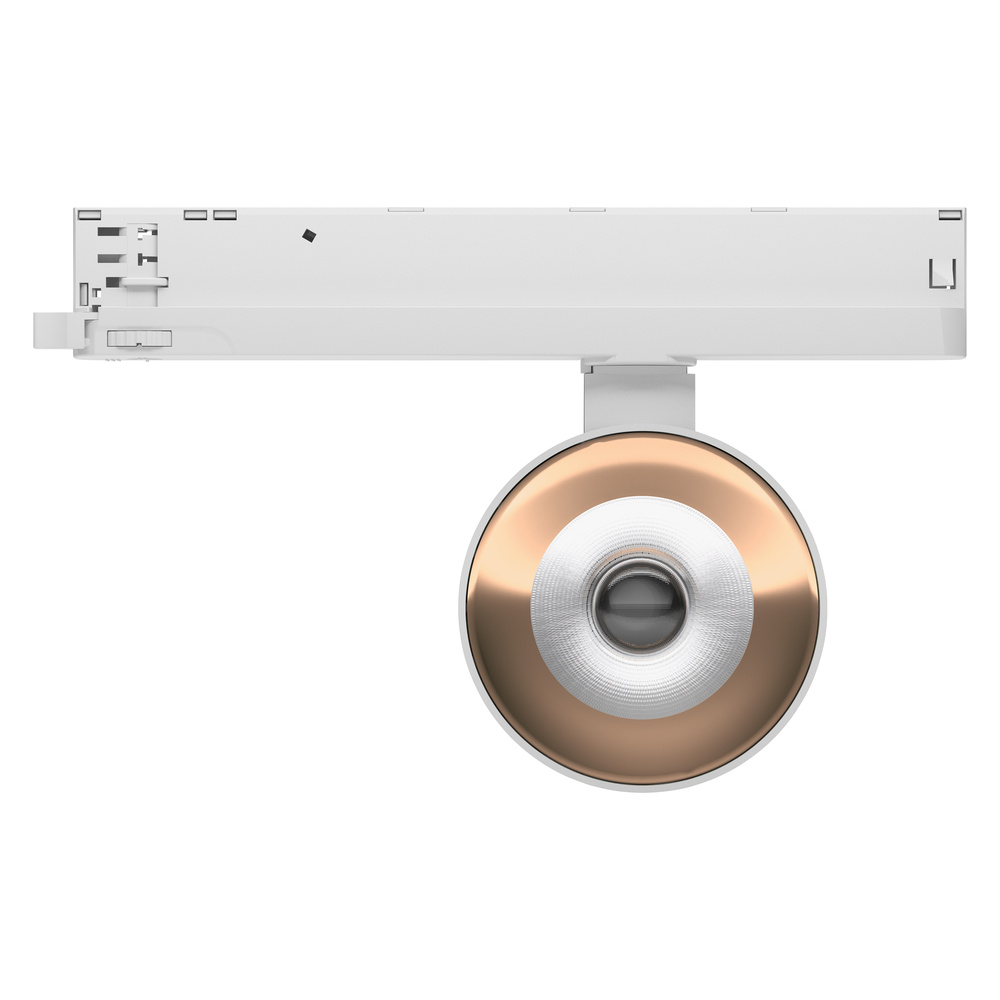

Ledvance LED spotlight TRACKLIGHT SPOT COMPACT D100 28 W 930 NFL WT
Product number:
4058075335844
LEDVANCE
Ledvance LED spotlight TRACKLIGHT SPOT COMPACT D100 28 W 930 NFL WT
Product number:
4058075335844
Shipping in 28 day(s)
3-phase current rail spotlight with the ballast integrated in the rail. Product properties: compact current rail spotlight with the ballast integrated in the rail. Made in Germany. Luminaire light output: up to 85 lm/w. Turn angle: 350 °, angle of inclination: 90 °. Very good color rendering index
...
Read more
€160.51
Content:
1 Stück
Prices incl. VAT plus shipping costs net €134.88
Product information "Ledvance LED spotlight TRACKLIGHT SPOT COMPACT D100 28 W 930 NFL WT"
3-phase current rail spotlight with the ballast integrated in the rail. Product properties: compact current rail spotlight with the ballast integrated in the rail. Made in Germany. Luminaire light output: up to 85 lm/w. Turn angle: 350 °, angle of inclination: 90 °. Very good color rendering index RA: 90. Color rendering index R a 9:> 60. Initial color consistency: ≤ 3 sdcm (threshold value unit). Available with a steel angle: 25 °, 36 °. Follow the uniform design language of Ledvance (Scale Design). Housing made of robust aluminum die cast. Available in matt white (similar to RAL9010), matt black (similar to RAL9005), concrete gray (similar to RAL7042). Product advantages: Timeless design fits for high -quality interior. Contained 3-phase adapter compatible with common stream rails (Norlux, Global, Nuco, Nordic). No distraction of attention from the illuminated objects thanks to a compact design. Flicker light thanks to special electronic ballast. 5 years of guarantee. Areas of application: Direct replacement for lights that use HID lamps. Accent lighting. Fashion shops, accessories. Retail trade. Hotels, restaurants, shops.
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 80000 h |
| system power: | 28 W |
| switching cycles: | 100000 |
Casing
| protection type: | IP20 |
|---|---|
| material: | aluminum |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 35 °C |

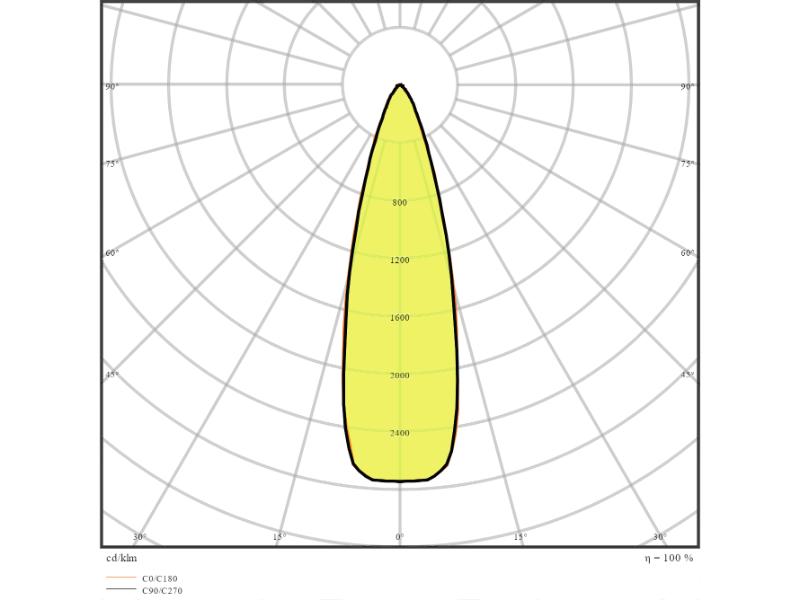

Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >90 |
| lamp efficiency: | 80 lm/W |
| start time: | 0,5 s |
| lum flux: | 2280 lm |
Logistic data
| item category: | LED track system luminaires |
|---|---|
| country of origin: | Germany |

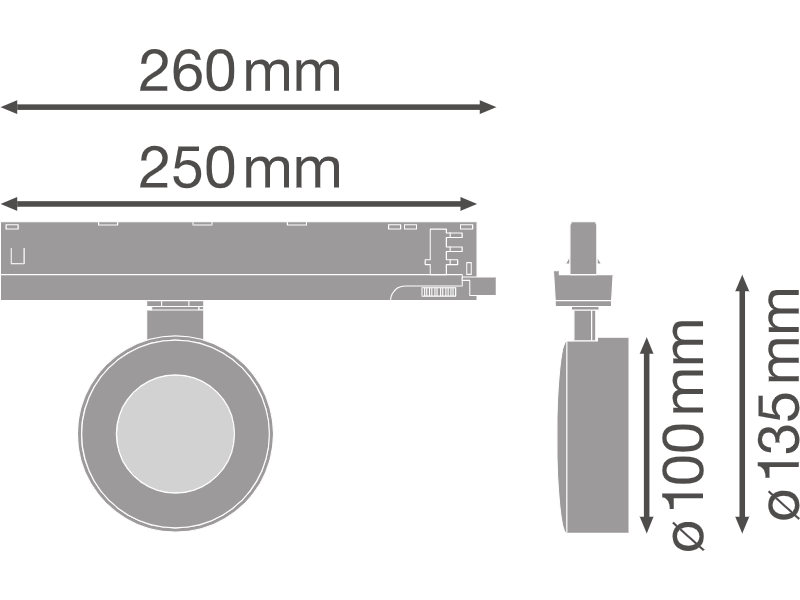

Dimensions & packaging
| EAN | 4058075335844 |
|---|---|
| Length | 260 mm |
| Width | 33 mm |
| Height | 160 mm |
| Weight | 400 g |
