LEDVANCE
Ledvance LED panel luminaire PANEL VALUE 600 UGR < 19 36 W 4000 K WT DALI
Product number:
4058075392526
LEDVANCE
Ledvance LED panel luminaire PANEL VALUE 600 UGR < 19 36 W 4000 K WT DALI
Product number:
4058075392526
Shipping in 6 day(s)
Quadratical insertion light with a strong devil, 600 x 600 mm. Product properties: lifespan (L70/B50): up to 50,000 h (at 25 ° C). Frame made of strand -pressed aluminum. Polystyrene diffuser. Product advantages: Luminaire with a good price-performance ratio. Good glow (UGR
...
Read more
€97.38
Content:
1 Stück
Prices incl. VAT plus shipping costs net €81.83
Product information "Ledvance LED panel luminaire PANEL VALUE 600 UGR < 19 36 W 4000 K WT DALI"
Quadratical insertion light with a strong devil, 600 x 600 mm. Product properties: lifespan (L70/B50): up to 50,000 h (at 25 ° C). Frame made of strand -pressed aluminum. Polystyrene diffuser. Product advantages: Luminaire with a good price-performance ratio. Good glow (UGR <19). Flicker light thanks to special electronic ballast. Energy saving thanks to system light output of up to 100 lm/w. External driver for extended flexibility and easy installation. Versions with Dali-EVG available. Areas of application: Direct replacement for lights with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling installation systems with a grid size of 600 x 600 mm. Technical equipment: Accessories available for various installation options. External ballast contained. Security terminals included
Downloads & Documents
Electrical data
| operating frequency: | 0/50/60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 36 W |
| switching cycles: | 25000 |
Casing
| form type: | square |
|---|---|
| protection type: | IP40 |
| material: | aluminum |
| impact resist: | IK02 |
| protection class: | II |
| environment temperature from: | -10 °C |
| environment temperature to: | 45 °C |

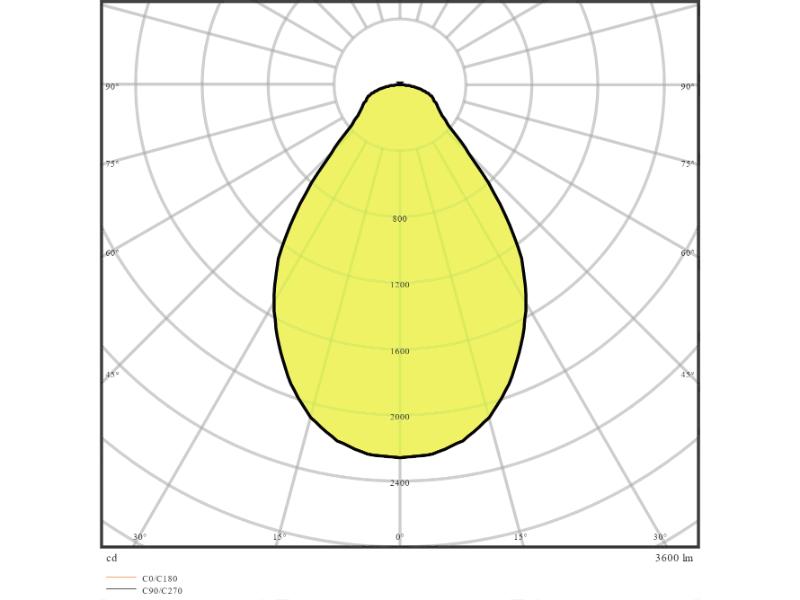

Photometric data
| radiation angle: | 90 ° |
|---|---|
| dimmable: | yes |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 100 lm/W |
| interface: | DALI |
| start time: | 0,5 s |
| lum flux: | 3600 lm |
Logistic data
| item category: | LED panel luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075392526 |
|---|---|
| Length | 595 mm |
| Width | 595 mm |
| Height | 35 mm |
| Weight | 1800 g |
