LED-Module TRIDONIC STARK-LLE-G3-24-280-650-830-CLA

Product number: 28000393
Tridonic GmbH & Co KG

LED-Module TRIDONIC STARK-LLE-G3-24-280-650-830-CLA

Product number: 28000393

Immediately available

5-year guaranteeSimple installation (e.g. screws)High colour rendering index CRI > 80Perfectly uniform light, even if several LED modules are used together in a linePush terminals for quick and simple wiring of LED module to LED moduleIdeal for linear and panel lightsSmall luminous flux tolerancesL ... Read more

6,61 €

Product information "LED-Module TRIDONIC STARK-LLE-G3-24-280-650-830-CLA"
5-year guarantee
Simple installation (e.g. screws)
High colour rendering index CRI > 80
Perfectly uniform light, even if several LED modules are used together in a line
Push terminals for quick and simple wiring of LED module to LED module
Ideal for linear and panel lights
Small luminous flux tolerances
Long life-time: 50,000 hours
Small colour tolerance MacAdam 3
Colour temperatures 3,000, 4,000 and 5,000 K
Efficacy of the module up to 167 lm/W
Luminous flux range from 620 – 1,790 lm

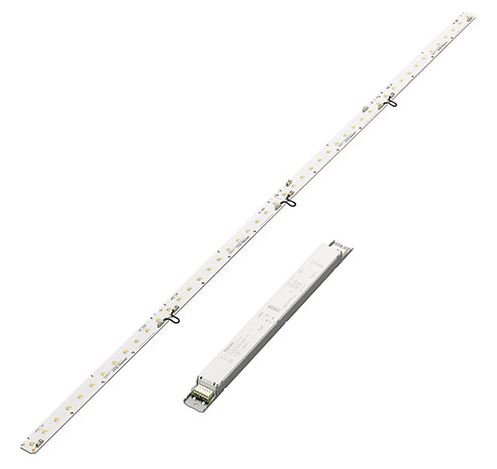

LED system solution with outstanding system efficacy up to 141 lm/W, consisting of linear LED module and dimmable LED Driver LCAI 65 W 150 – 400 mA ECO lp

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

EEI (Energy Efficiency Index): A++

Service life: 50000h

Technical lighting data

Colorcode: 830

Radiation angle: 120°

Luminous flux: 930lm

Colour rendering index (CRI): 80

Lamp Efficiency: 153lm/W

Dimmable: no

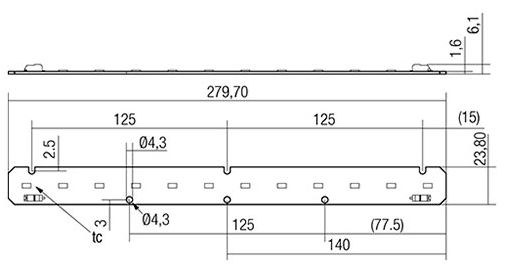

Dimensions

Width [mm]: 24mm

Height [mm]: 6mm

Length [mm]: 280mm

Housing

IP protection class: IP00

Max. housing temperature (tc,max): 85°C

Ambient temperature (ta): -40 …+45°C

Item number: 28000393

Logistic Data

EAN (pcs): 9006210499321

EAN (packunit): 9006210499338
