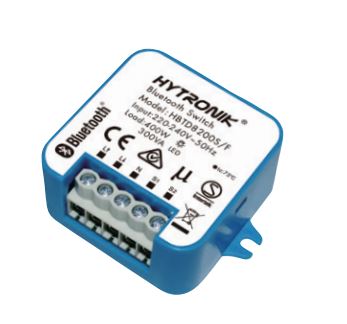

Hytronik Bluetooth On-Off LED-Switch HBTD8200S/F

Product number: 41008200
Hytronik Deutschland UG

Hytronik Bluetooth On-Off LED-Switch HBTD8200S/F

Product number: 41008200

Immediately available

Bluetooth LED module for office/homeWith Hytronik's Bluetooth LED module, you can conveniently control your LED lighting via iOS or Android app. Hytronik has developed this lighting control system with 4-wire mesh technology to support the functional demands of most commercial and residential appli ... Read more

47,77 €

Product information "Hytronik Bluetooth On-Off LED-Switch HBTD8200S/F"

Bluetooth LED module for office/home

With Hytronik's Bluetooth LED module, you can conveniently control your LED lighting via iOS or Android app. Hytronik has developed this lighting control system with 4-wire mesh technology to support the functional demands of most commercial and residential applications: The LED dimmer is perfect for both office and commercial lighting as well as for home use.

The Bluetooth LED module is designed for cost-effective intelligent control of fixed output luminaires. However, the versatile module may be used to add automation to any appliance which requires simple mains control. In addition, it has two manual retractive (non-latching) switch inputs to provide manual operation of the lighting.

Controllable via app for iOS and Android

The free downloadable app for Android and iOS offers many automated control features: Scene control, Scheduling, Astro Timer, and Push switch configuration (recall scene / compatible with external motion sensor).

The Hytronik Bluetooth LED module has short-circuit protection and overload protection. In addition, it has a permanent settings memory, so that it is protected against loss of power. Hytronik offers a warranty of 5 years / 50,000 hours.

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

Conformity: EMC/CE/CB/RED/RCM

Service life: 50000h

Garanty (years): 5

Technical lighting data

Dimmable: no

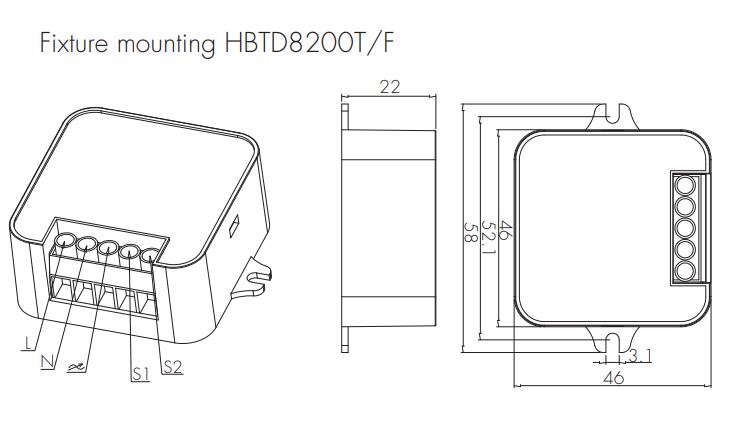

Dimensions

Width [mm]: 58mm

Height [mm]: 22mm

Length [mm]: 46mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -20...+50°C

Protection class: II

Item number: 41008200
