Inventronics Europe BV

60W Constant Current IP67 1050mA LED Driver Inventronics

Product number: EUC-060S105DVM
Inventronics Europe BV

60W Constant Current IP67 1050mA LED Driver Inventronics

Product number: EUC-060S105DVM

Immediately available

The electronic ballast from the EUC-060SxxxDVM000x series by NVENTRONICS is a programmable 60 watt constant current LED driver that operates from 90-305 VAC input with excellent power factor. It is suitable for installation in luminaires of protection class I or independent mounting. The output cur ... Read more

€22.57

Product information "60W Constant Current IP67 1050mA LED Driver Inventronics"

The electronic ballast from the EUC-060SxxxDVM000x series by NVENTRONICS is a programmable 60 watt constant current LED driver that operates from 90-305 VAC input with excellent power factor. It is suitable for installation in luminaires of protection class I or independent mounting. The output current is 1050 mA.

The LED ECG was developed for many lighting applications including low bay, tunnel and street. Dimming is possible via isolated 1-10V interface. Thanks to its IP67 protection, the LED driver is waterproof. It also convinces with a low THD value of max. 10% up to 240 VAC

The high efficiency and the compact metal housing of the INVENTRONICS LED driver enable it to run cooler, significantly improving reliability and extending product life : the driver has a long lifetime of 95,900 hours at 70 ° C housing temperature. For trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.  INVENTRONICS offers a 5-year warranty on the LED ECG.

Technical Data

Electrical Data

Rated Voltage: 90-305V

Rated frequency: 0/50/60Hz

Output voltage: 34.0000-57.0000V

Output current: 1.0500-1.0500A

Conformity: CE/CCC/CB/TüV

Service life: 95900h

Operating mode: Constant current

Technical lighting data

Dimming range: 10-100%

Wattage: LED#1#0#60#1.05#1.05#34#57#1

Dimmable: yes

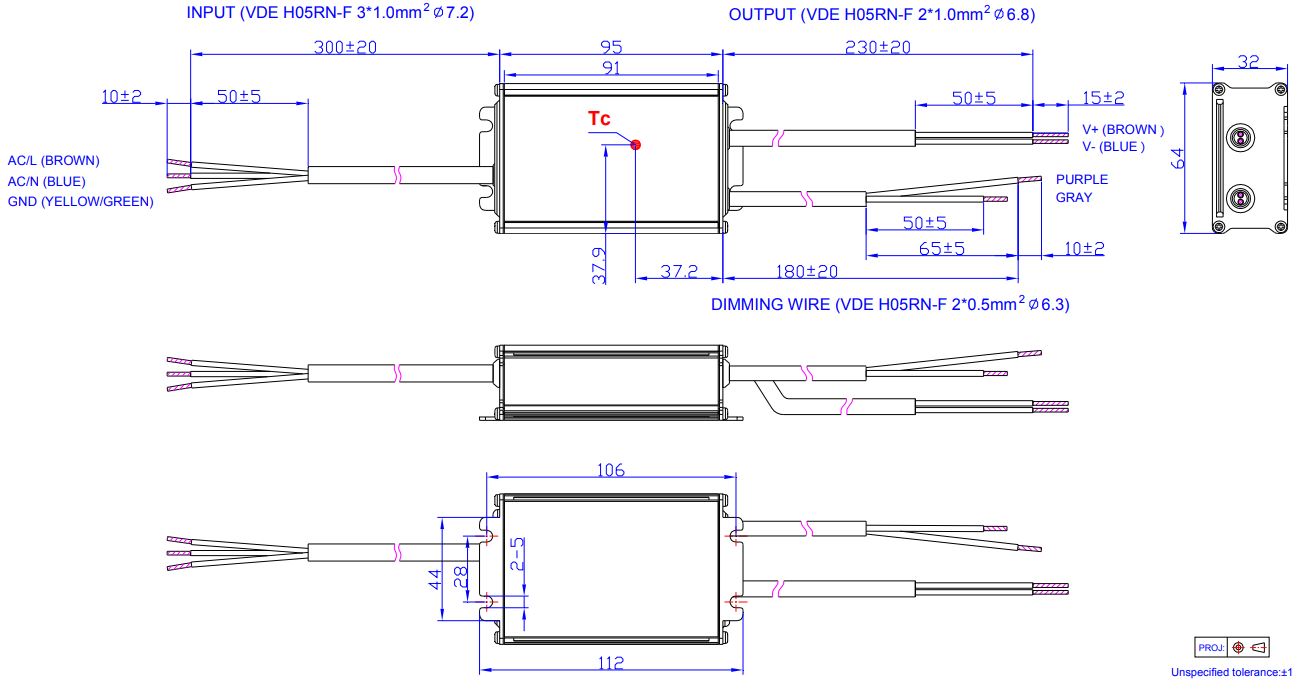

Dimensions

Width [mm]: 64mm

Height [mm]: 32mm

Length [mm]: 95mm

Housing

IP protection class: IP67

Ambient temperature (ta): -40...+70°C

Item number: EUC-060S105DVM
